深井规模化开采矿山与分布式微震监测系统设计研究

doi:10.11872/j.issn.1005-2518.2023.04.113

摘要/Abstract

摘要：

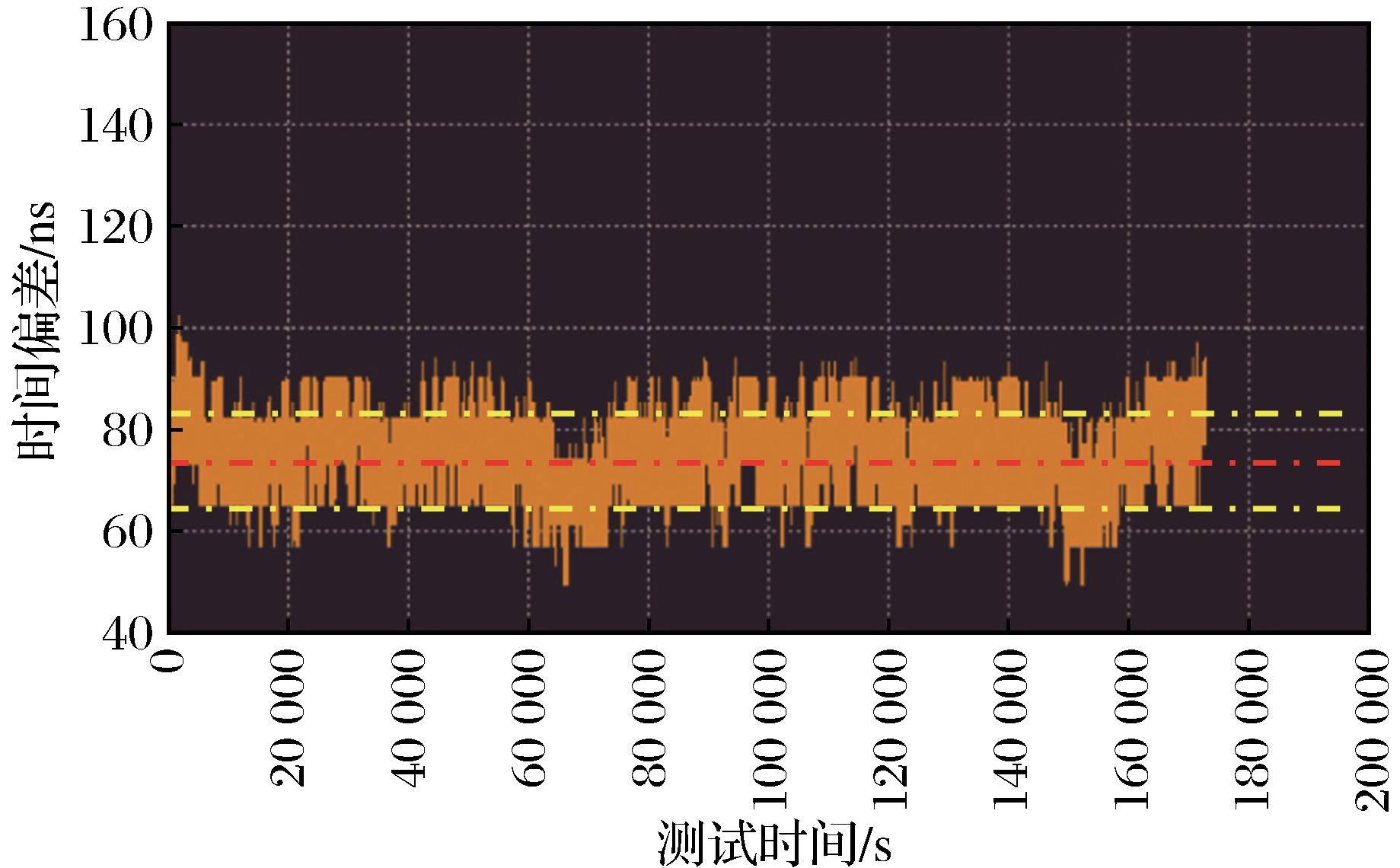

深井规模化开采已成为国内外地下矿山开采的重要发展趋势，然而这种开采工艺会面临复杂的地压灾害活动威胁。基于谦比希铜矿微震监测系统研究课题，开展了分布式微震监测系统设计方案研究。通过对谦比希铜矿通信网络特点和通信技术进行研究，提出了新型PTP时间同步协议并配置授时硬件装置，在此基础上解决了分布式系统时间同步问题，并测试验证了微震系统时间同步精度在65~82 ns之间；基于空间过滤体方式对微震信号进行边界约束，解决了微震监测区域数据分析分散的问题；通过三维数值模拟方法验证了分布式微震监测的定位精度，同时通过现场踏勘方式验证了上述方法现场应用的可靠性。研究结果表明：分布式微震监测系统可以很好地适应深井规模化开采矿山的地压灾害监测需求。

关键词: 深井, 规模化开采, 分布式微震监测系统, 时间同步, 空间过滤, 台网分析

Abstract:

Deep well large-scale mining is one of the important development trends of mining methods at home and abroad，but this mining method also faces the threat of complex ground pressure disasters.Based on the requirements for the design of microseismic monitoring system in Chambishi copper mine，a typical deep well large-scale distributed mining mine，the distributed microseismic monitoring system design scheme was studied in this paper.Deep well large-scale mining will inevitably lead to the dispersion of underground monitoring equipment.Because the microseismic data acquisition substations at different locations are running underground，due to the continuous accumulation of network delays，there will be large time synchronization errors，and the time synchronization errors will cause the microseismic events originally occurring in the south mining area to be located in the north mining area or in unrelated areas，so that the true location of ground pressure disasters cannot be accurately monitored.In addition，the microseismic monitoring software will carry out statistical analysis of all the monitored events when carrying out quantitative statistical analysis，and the ground pressure disaster activity characteristics in different regions have nonlinear characteristics，so it is necessary to carry out statistical analysis of data separately.In view of the difficulties in the design of distributed microseismic monitoring system，two key technologies have been researched and developed based on the existing microseismic monitoring system technologies.One is the high-precision time synchronization technology to solve the time synchronization problem of ultra long-distance distributed equipment，and the other is the monitoring data spatial filtering technology to solve the data analysis of ground pressure disaster activities in different regions.Based on the application of the above key technologies，the design concept of the distributed microseismic monitoring system was realized.At the same time，the network numerical calculation tool was used to simulate the system positioning accuracy of the distributed microseismic monitoring design scheme.The key data required by the microseismic monitoring network analysis tool are three-dimensional coordinate information of the sensor position，sensitivity value of the sensor，seismic wave velocity，P-wave variance and arrival error variance.Based on the above data，the positioning error was calculated numerically，and finally the three-dimensional cloud map of the positioning error in the central area and the surrounding area of the monitoring station network was obtained.The network analysis results show that the design scheme meets the monitoring needs of actual ground pressure activities，thus verifying the feasibility of the design scheme.The solution can be applied to the same type of mines and has certain promotion value.

Key words: deep well, large-scale mining, distributed microseismic monitoring system, time synchronization, spatial filtering, seismological network analysis

中图分类号:

TD76

张君, 杨清平, 刘芳芳, 张金钟, 徐刚强, 李晓松. 深井规模化开采矿山与分布式微震监测系统设计研究[J]. 黄金科学技术, 2023, 31(4): 659-668.

Jun ZHANG, Qingping YANG, Fangfang LIU, Jinzhong ZHANG, Gangqiang XU, Xiaosong LI. Design and Research of Distributed Microseismic Monitoring System in Deep Well Large-scale Mining Mine[J]. Gold Science and Technology, 2023, 31(4): 659-668.

图/表 13

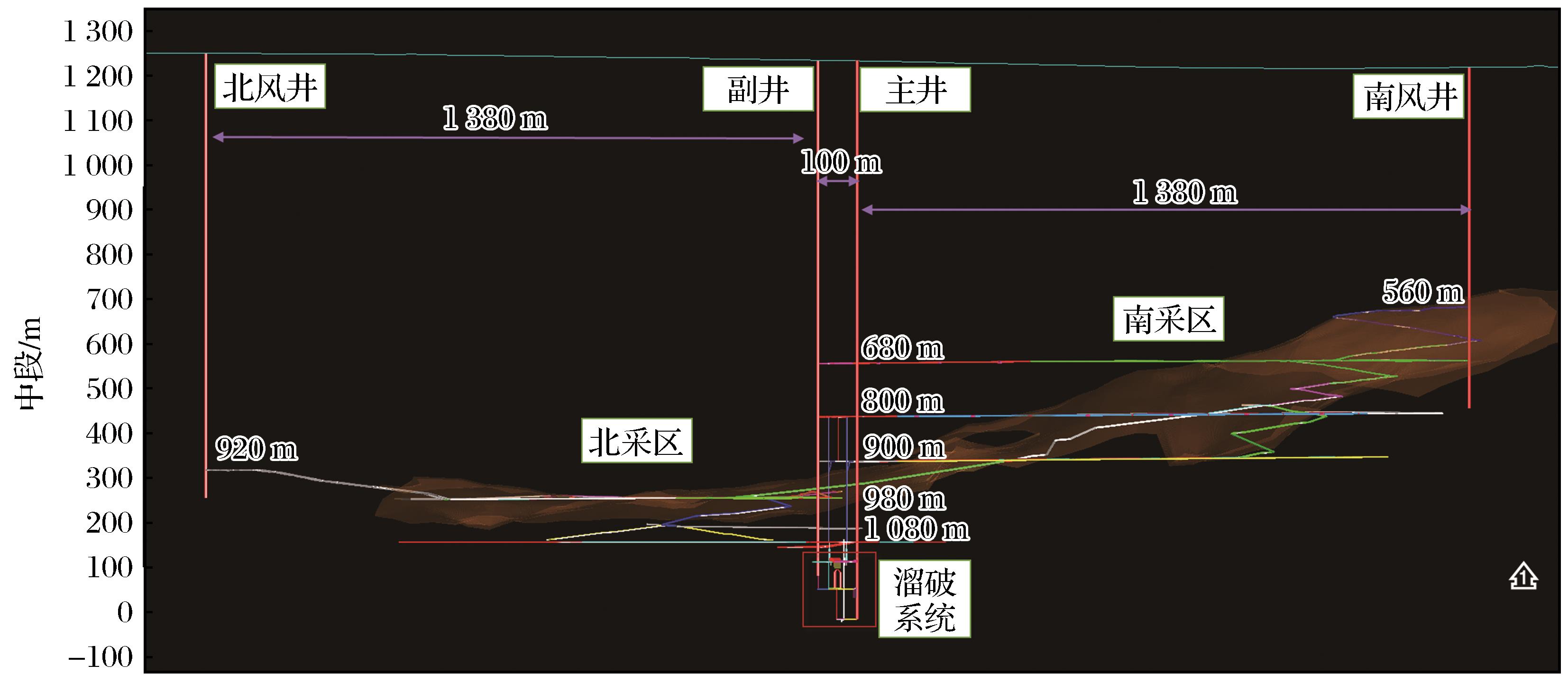

图1

图2

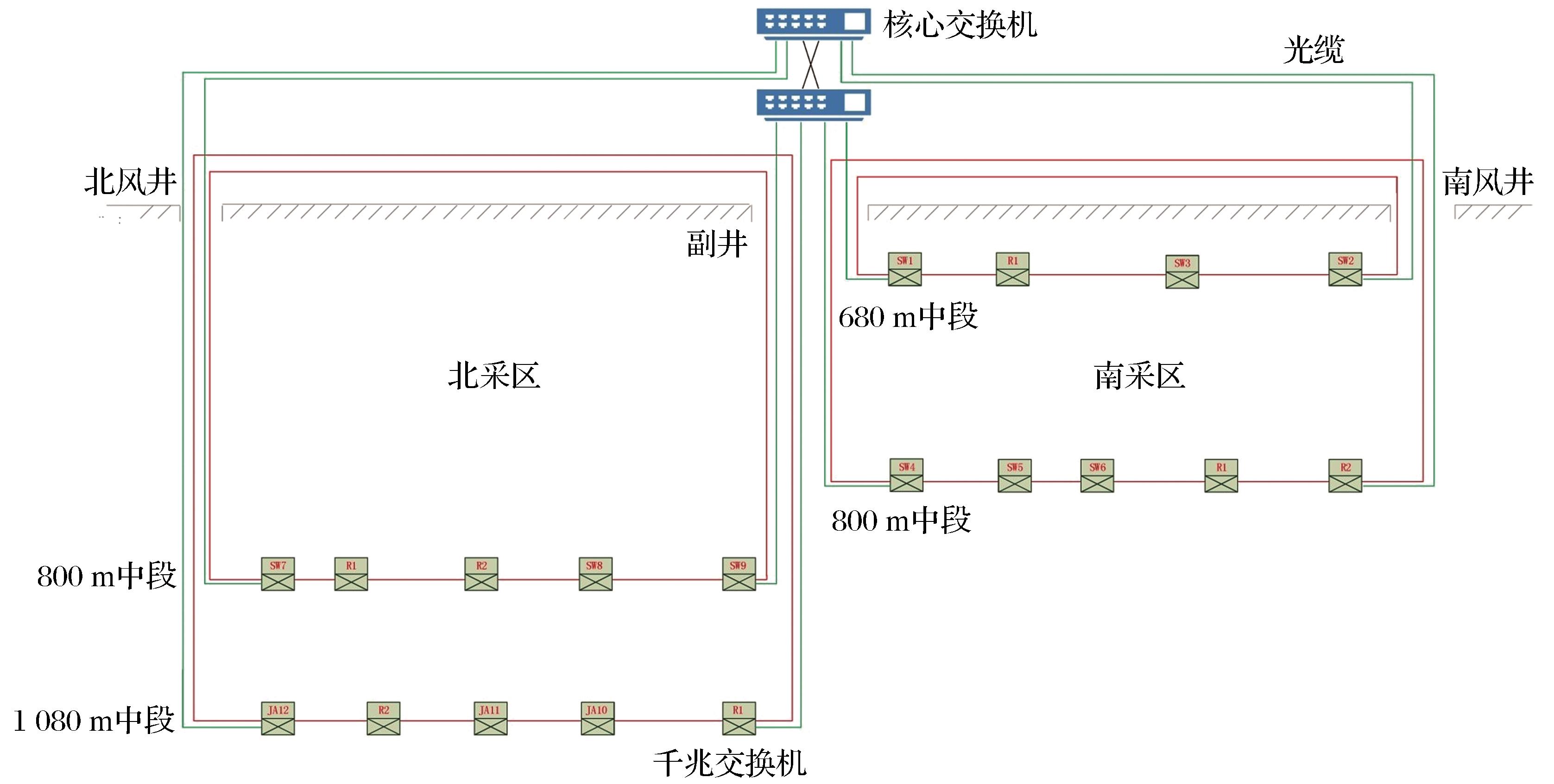

图3

图4

图5

图6

图7

图8

图9

表1

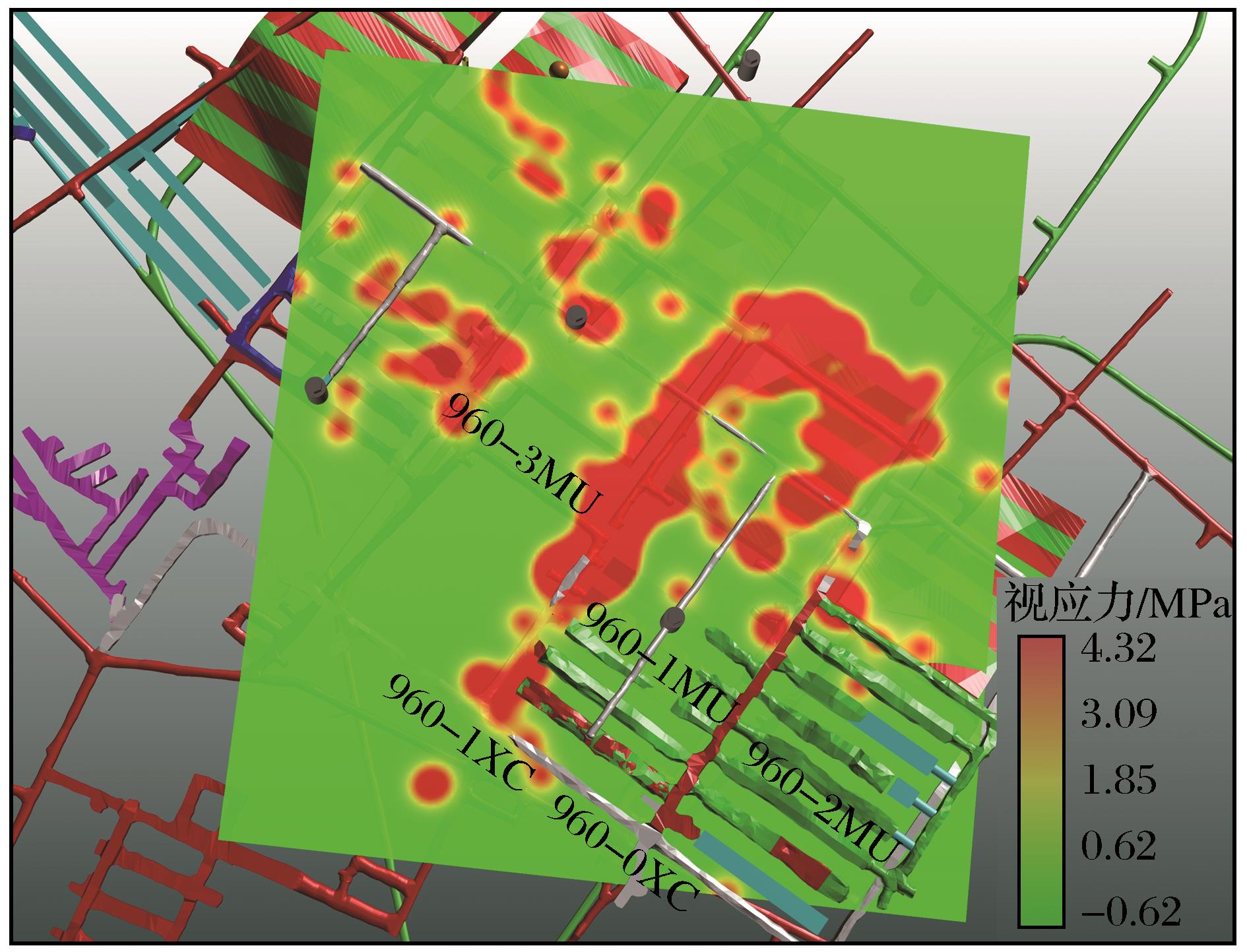

图10

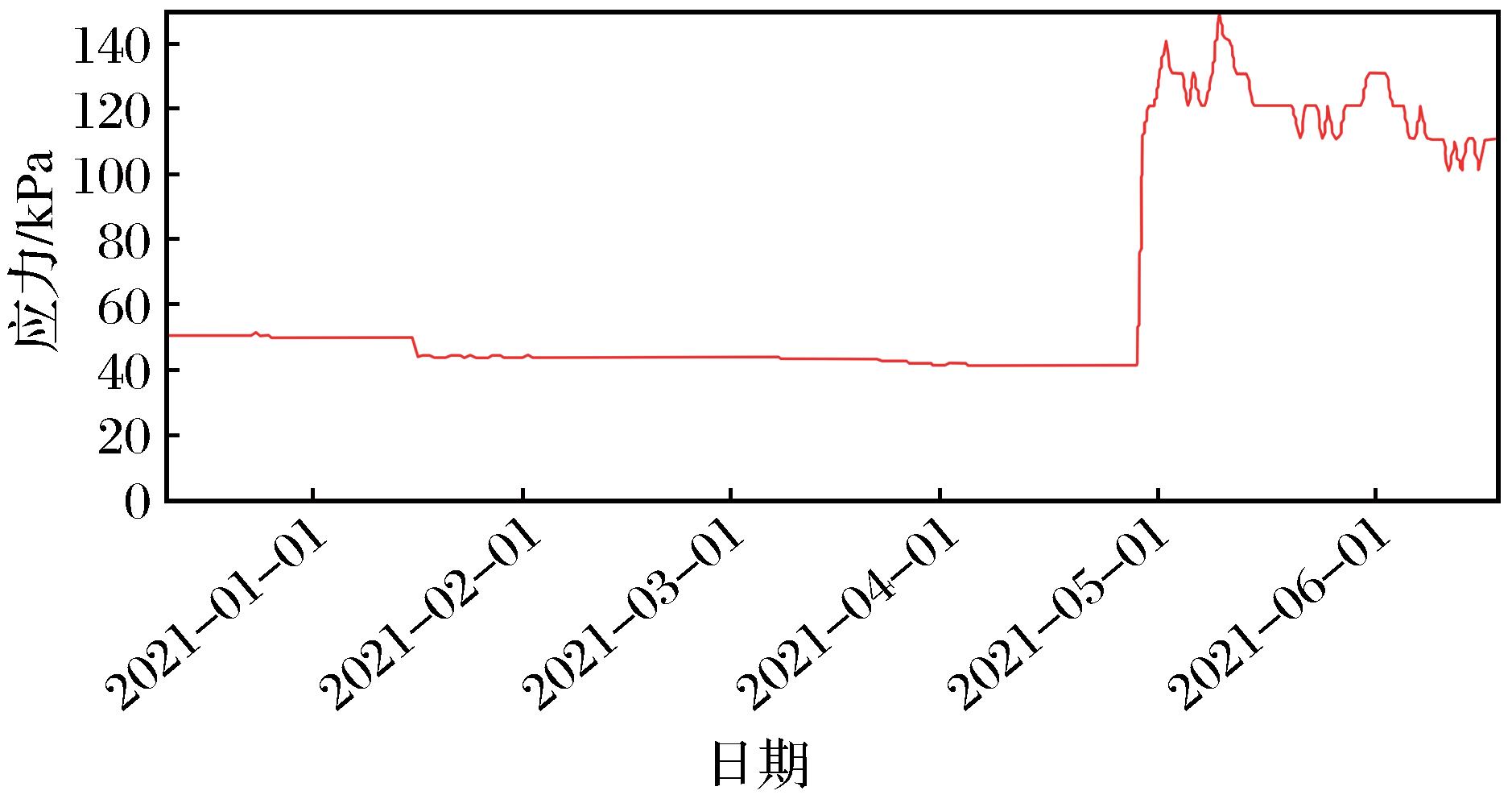

图11

图12

参考文献 0

	Cai Meifeng， Xue Dinglong， Ren Fenhua，2019.Current status and development strategy of metal mines［J］.Chinese Journal of Engineering，41（4）：417-426.
	Chen R，2020.On-line detection method of power quality detection device based on high-precision standard time synchronization technology［J］.International Journal of Circuits，Systems and Signal Processing， 14：708-715.
	Cui Yu， Li Xibing， Dong Longjun，et al，2019.Optimization of micro-seismic monitoring network layout in Linglong gold mine［J］.Gold Science and Technology，27（3）：417-424.
	Dang Jiandong， Zhang Jun，2019.Application of microseismic monitoring technology in Dongguashan copper mine［J］.Modern Mining，35（9）：240-242.
	Dang Mingzhi， Zhang Jun， Jia Mingtao，2020.Application and research of microseismic monitoring technology and disaster early warning methods in Huangtupo copper and zinc mine［J］.Gold Science and Technology，28（2）：246-254.
	Gao Yongtao， Wu Qingliang， Wu Shunchuan，et al，2013.Optimization of microseismic monitoring network based on the theory of D-optimal design［J］.Chinese Journal of Engineering，35（12）：1538-1545.
	Gu Desheng， Li Xibing，2003.Science problem and research state of deep mining in metal and nonferrous mines［J］.Mining Research and Development，23（2）：1-5.
	Guo Xiaoqiang， Fengcheng Haungfu， Wang Guo，et al，2019.Construction and application of microseismic monitoring system in Ashele copper mine［J］.Mining and Metallurgical Engineering，39（6）：29-34.
	He Manchao，2007.Conception system and evaluation indexes for deep engineering［J］.Chinese Journal of Rock Mechanics and Engineering，24（16）：2854-2858.
	Li Shulin， Yin Xiangang， Zheng Wenda，et al，2005.Research of multichannel microseismic monitoring system and its application to Fankou lead zinc mine［J］.Chinese Journal of Rock Mechanics and Engineering，24（12）：2048-2053.
	Li Xibing， Zhou Jian， Wang Shaofeng，et al，2017.Review and exploration of deep solid resource mining［J］.Chinese Journal of Nonferrous Metals，27 （6）：1236-1262.
	Liu C， Li X， Zhang C，et al，2021a.The spatio-temporal evolution law of overlying rock fractures in an experimental working face（N00 mining method） based on microseismic monitoring technology［J］.Arabian Journal of Geosciences，14（14）：1-16.
	Liu Huanxin， Wang Jianbo， Zhao Jie，et al，2018.Critical technical problems of deep mining and preliminary solutions［J］.Mining Research and Development，38（5）：1-5.
	Liu J P， Si Y T， Wei D，et al，2021b.Developments and prospects of microseismic monitoring technology in underground metal mines in China［J］.Journal of Central South University，28（10）：3074-3098.
	Liu Lishun， Yang Xiaocong， Wan Chuanchuan，et al，2022.Research progress on mechanical problems in deep mining of metal mines［J］.Nonferrous Metals（Mining Section），74（4）：14-18，25.
	Liu S J， Hamdulla A，2020.The issues on time synchronization technology in time triggered ethernet［J］.Journal of Physics：Conference Series，1673（1）：012015.
	Liu Xiaoming， Zhao Jiaxuan， Wang Liguan，et al，2016.Evaluation on layout of mine microseismic monitoring network based on comprehensive evaluation method［J］.Journal of Safety Science and Technology，12（5）：66-72.
	Ning Yanhong，2021.Discussion on deep shaft mining technology of a gold mine in South Africa［J］.China Mine Engineering，50（4）：21-24.
	Qian Qihu，2004.The characteristics scientific phenomena of engineering response to deep rock mass and the implication of deepness［J］.Journal of East China Institute of Technology，27（1）：1-5.
	Tang Lizhong， Yang Chengxiang， Pan Changliang，2006.Optimization of microseismic monitoring system network for large-scale deep well mining［J］.Chinese Journal of Rock Mechanics and Engineering，25（10）：2036-2042.
	Wang Niu，2014.On the necessity of large-scale mining［J］.Henan Science and Technology，（2）：161.
	Wu Qingming， Cao Min， Yan Peng，2020.Impact analysis of surface movement caused by deep well mining in Erdaogou mine［J］.Gold，41（6）：40-43.
	Xie Heping，2017.Research framework and anticipated results of deep rock mechanics and mining theory［J］.Advanced Engineering Sciences，49（2）：1-16.
	Yang Chengxiang，2008.Investigation on the Technologies of High Efficiency Mining and Ground Pressure Monitoring and Control for Deep Metal Deposit Mining［D］.Changsha：Central South University.
	Zhao J S， Jiang Q， Lu J F，et al，2022.Rock fracturing observation based on microseismic monitoring and borehole imaging：In situ investigation in a large underground cavern under high geostress［J］.Tunnelling and Underground Space Technology incorporating Trenchless Technology Research， 126：104549.
	蔡美峰，薛鼎龙，任奋华，2019.金属矿深部开采现状与发展战略［J］.工程科学学报，41（4）：417-426.
	崔宇，李夕兵，董陇军，等，2019.玲珑金矿微震监测台网布设优化［J］.黄金科学技术，27（3）：417-424.
	党建东，张君，2019.微震监测技术在冬瓜山铜矿的应用［J］.现代矿业，35（9）：240-242.
	党明智，张君，贾明涛，2020.黄土坡铜锌矿微震监测技术应用与灾害预警方法研究［J］.黄金科学技术，28（2）：246-254.
	高永涛，吴庆良，吴顺川，等，2013.基于D值理论的微震监测台网优化布设［J］.北京科技大学学报，35（12）：1538-1545.
	郭晓强，皇甫风成，王果，等，2019.阿舍勒铜矿微震监测系统建设与应用研究［J］.矿冶工程，39（6）：29-34.
	古德生，李夕兵，2003.有色金属深井采矿研究现状与科学前沿［J］.矿业研究与开发，23（2）：1-5.
	何满潮，2007.深部的概念体系及工程评价指标［J］.岩石力学与工程学报，24（16）：2854-2858.
	李庶林，尹贤刚，郑文达，等，2005.凡口铅锌矿多通道微震监测系统及其应用研究［J］.岩石力学与工程学报，24（12）：2048-2053.
	李夕兵，周健，王少锋，等，2017.深部固体资源开采评述与探索［J］.中国有色金属学报，27（6）：1236-1262.
	刘焕新，王剑波，赵杰，等，2018.深井开采关键技术难题与解决途径初探［J］.矿业研究与开发，38（5）：1-5.
	刘立顺，杨小聪，万串串，等，2022.金属矿山深井开采中的力学问题研究进展［J］.有色金属（矿山部分），74（4）：14-18，25.
	刘晓明，赵嘉轩，王李管，等，2016.基于综合评价法的矿山微震监测台网布设评价［J］.中国安全生产科学技术，12（5）：66-72.
	宁彦红，2021.南非某金矿深井开采技术探讨［J］.中国矿山工程，50（4）：21-24.
	钱七虎，2004.深部岩体工程响应的特征科学现象及“深部”的界定［J］.东华理工学院学报（自然科学版），27（1）：1-5.
	唐礼忠，杨承祥，潘长良，2006.大规模深井开采微震监测系统站网布置优化［J］.岩石力学与工程学报，25（10）：2036-2042.
	王牛，2014.论矿山开采规模化的必要性［J］.河南科技，（2）：161.
	吴清明，曹敏，严鹏，2020.二道沟矿深井开采地表移动影响分析［J］.黄金，41（6）：40-43.
	谢和平，2017.“深部岩体力学与开采理论”研究构想与预期成果展望［J］.工程科学与技术，49（2）：1-16.
	杨承祥，2008.深井金属矿床高效开采及地压监控技术研究［D］.长沙：中南大学.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

传感器编号	三维坐标
传感器编号	X	Y	Z
S680-1	-9 727.33	14 842.22	559.519
S680-2	-9 758.06	14 781.42	559.912
S680-3	-9 785.68	14 726.42	559.914
S680-4	-9 617.56	14 643.69	564.607
S680-5	-9 583.78	14 703.26	564.757
S680-6	-9 549.91	14 761.80	564.891
S680-7	-9 432.12	14 571.32	566.266
S800-1	-9 746.07	14 849.76	441.590
S800-2	-9 641.75	14 807.39	441.400
S800-3	-9 594.04	14 903.38	442.134
S800-4	-9 477.73	14 696.10	447.358
S800-5	-9 416.77	14 801.79	447.780
S960-1	-10 372.80	15 944.26	265.244
S960-2	-10 430.80	15 835.29	265.633
S960-3	-10 347.40	15 788.95	273.118
S960-4	-10 289.60	15 892.07	273.941
S960-5	-10 257.60	15 739.78	280.628
S960-6	-10 200.00	15 842.49	274.856
S1080-1	-10 393.00	15 706.99	156.465
S1080-2	-10 250.80	15 756.23	156.834
S1080-3	-10 177.90	15 889.44	157.658
S1080-4	-10 338.20	16 003.69	157.900
S1080-5	-10 411.00	15 871.76	156.854
S680-8	-9 382.38	14 660.23	564.872
S800-6	-9 298.86	14 606.08	449.012
S680-1	-9 727.33	14 842.22	559.519
S680-2	-9 758.06	14 781.42	559.912
S680-3	-9 785.68	14 726.42	559.914
S680-4	-9 617.56	14 643.69	564.607
S680-5	-9 583.78	14 703.26	564.757
S680-6	-9 549.91	14 761.80	564.891
S680-7	-9 432.12	14 571.32	566.266
