基于博弈论G1-EW-TOPSIS法的岩体质量评价和应用

徐先锋(),邢鹏飞(),王岁红,汪泳

  1. 核工业井巷建设集团有限公司,浙江 湖州 303002
  • 收稿日期:2021-10-12 修回日期:2022-06-08 出版日期:2022-10-31 发布日期:2022-12-10
  • 通讯作者: 邢鹏飞 E-mail:1274153062@qq.com;363328532@qq.com
  • 作者简介:徐先锋(1970-),男,浙江湖州人,高级工程师,从事井巷工程方面的研究工作。1274153062@qq.com

Rock Mass Quality Evaluation and Application Based on Game Theory and G1-EW-TOPSIS Method

Xianfeng XU(),Pengfei XING(),Suihong WANG,Yong WANG

  1. Nuclear Industry Jingxiang Construction Group Co. ,Ltd. ,Huzhou 303002,Zhejiang,China
  • Received:2021-10-12 Revised:2022-06-08 Online:2022-10-31 Published:2022-12-10
  • Contact: Pengfei XING E-mail:1274153062@qq.com;363328532@qq.com

摘要:

岩体质量的合理评价对矿山的安全生产和经济效益具有重要意义。针对岩体质量评价条件复杂、具有模糊性的特点,选取5个代表性参数作为评价指标,提出了一种基于博弈论G1-EW-TOPSIS法的岩体质量评价模型,并将该模型应用于内蒙古某银多金属矿。为验证该模型的有效性,首先对该矿山首采中段进行现场调查,确定5个测点,然后基于博弈论的思想,将G1法计算的主观权重 ω1 和EW法计算的客观权重 ω2 优化组合,得到最终的综合权重 ω,最后利用TOPSIS法计算各测点的相对贴近度来判断岩体质量等级。结果表明:该矿山首采中段岩体质量评价等级主要为Ⅲ级和Ⅳ级,岩体质量较差,需要加强支护。计算结果与工程现场5个测点完全吻合,验证了模型的有效性,为岩体质量评价提供了新思路。

关键词: 岩体质量评价, 组合赋权, TOPSIS, 博弈论, G1法, 熵权法

Abstract:

The reasonable evaluation of rock quality is the basis for engineering design and construction,and it is of great significance to the safe production and economic benefits of mines.In view of the complex conditions and ambiguity of rock quality evaluation,on the basis of comprehensive reference to relevant research literature,five parameters were selected as rock quality evaluation indexes,including core quality index RQD value(X1),uniaxial compressive strength of rock σcX2),rock integrity coefficient KvX3),structural surface strength coefficient J(X4)and unit time water seepage SX5),and a rock quality evaluation model of G1-EW-TOPSIS method based on game theory idea was proposed and applied to the rock quality evaluation of the first mining middle section of a silver polymetallic mine in Inner Mongolia.To verify the validity of the model,firstly,a field survey was conducted to determine five measurement points for the structural surface condition and groundwater flow of the rock mass in the first mining middle section of the mine,and then the subjective weight ω1 and objective weight ω2 of the indexes of the measurement points were obtained by combining the G1 method and EW method through game theory to obtain the comprehensive weight ω.Finally,TOPSIS was used to calculate the relative closeness of each measurement point under each rock quality class to determine the rock quality class of the measurement point.The results show that the five rock quality grade evaluation indexes selected in this paper can better reflect the state of the rock mass.The method of calculating the com-prehensive weight of the model not only overcomes the shortcomings of the single assignment method,but also reduces the error and improves the ability of the model to deal with multi-objective decision problems.The rock quality in the first middle section of this mine is mainly evaluated as grade Ⅲ and grade Ⅳ,the rock quality is poor,and the support needs to be strengthened for the roadway and the exposed surrounding rock of the quarry where the rock quality is grade Ⅳ.The calculation results of the model completely match with the rock quality of 5 measurement points at the mine engineering site,which provides a new idea for rock quality evaluation.

Key words: rock mass quality evaluation, combination weighting, TOPSIS, game theory, G1 method, entropy weight method

中图分类号:

  • TD853.3

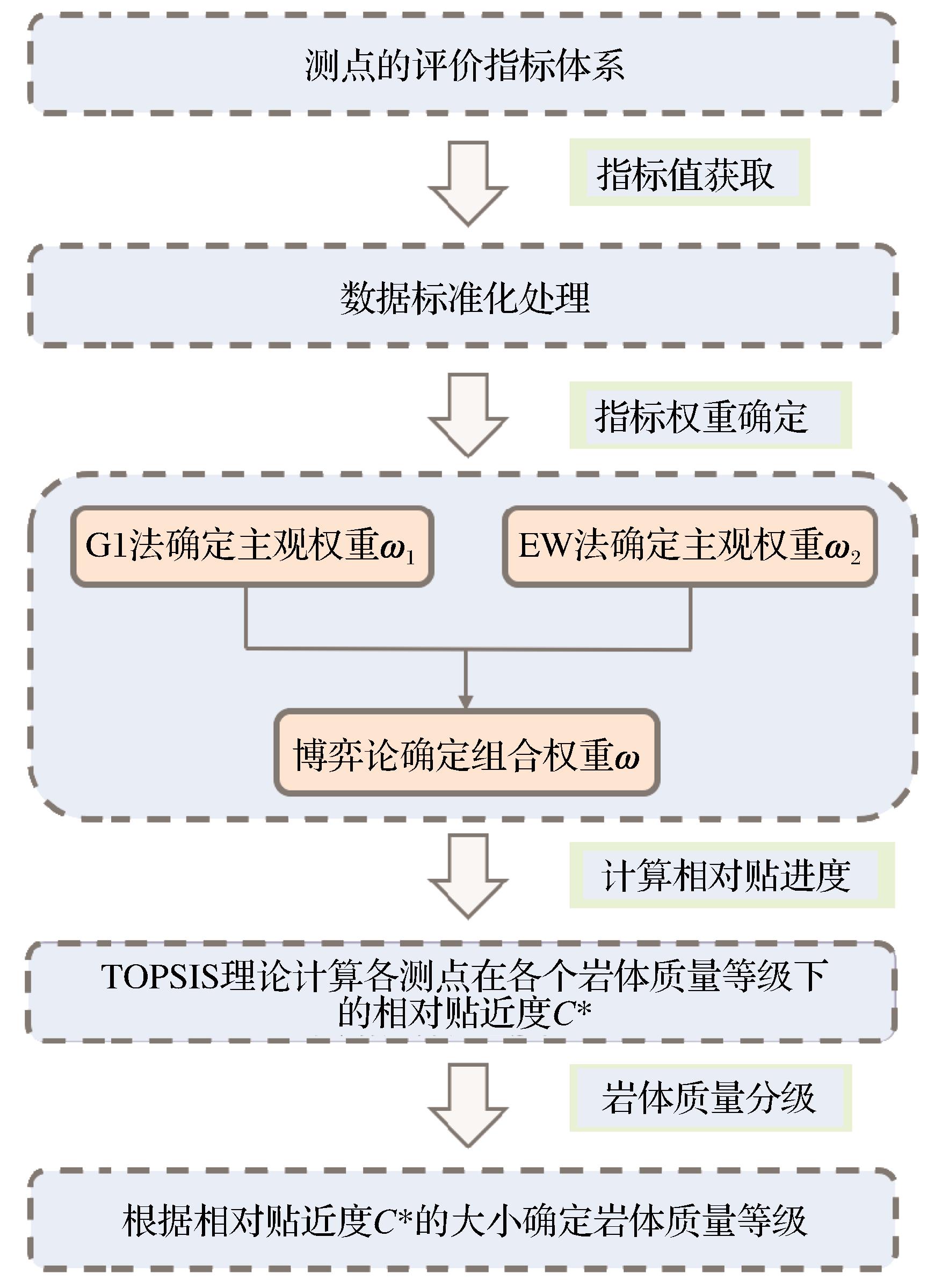

图1

岩体质量评价模型计算流程图evaluation model"

表1

rl 赋值说明"

rl赋值说明
1.0评价指标Xl 与评价指标Xl-1重要程度一样
1.2评价指标Xl-1的重要程度与评价指标Xl 相比稍微重要
1.4评价指标Xl-1与评价指标Xl 的重要程度介于稍微重要和非常重要之间
1.6评价指标Xl-1的重要程度与评价指标Xl 相比非常重要
1.8评价指标Xl-1的重要程度与评价指标Xl 相比极度重要

表2

岩体质量分级标准"

岩石质量等级X1/%X2/MPaX3X4X5/[L·min-1·(10 m)-1
Ⅰ(稳定)90~100120~2000.75~1.000.8~1.00~5
Ⅱ(较稳定)75~9060~1200.45~0.750.6~0.85~10
Ⅲ(基本稳定)50~7530~600.30~0.450.4~0.610~25
Ⅳ(不稳定)25~5015~300.20~0.300.2~0.425~125
Ⅴ(极不稳定)0~250~150~0.200~0.2125~300

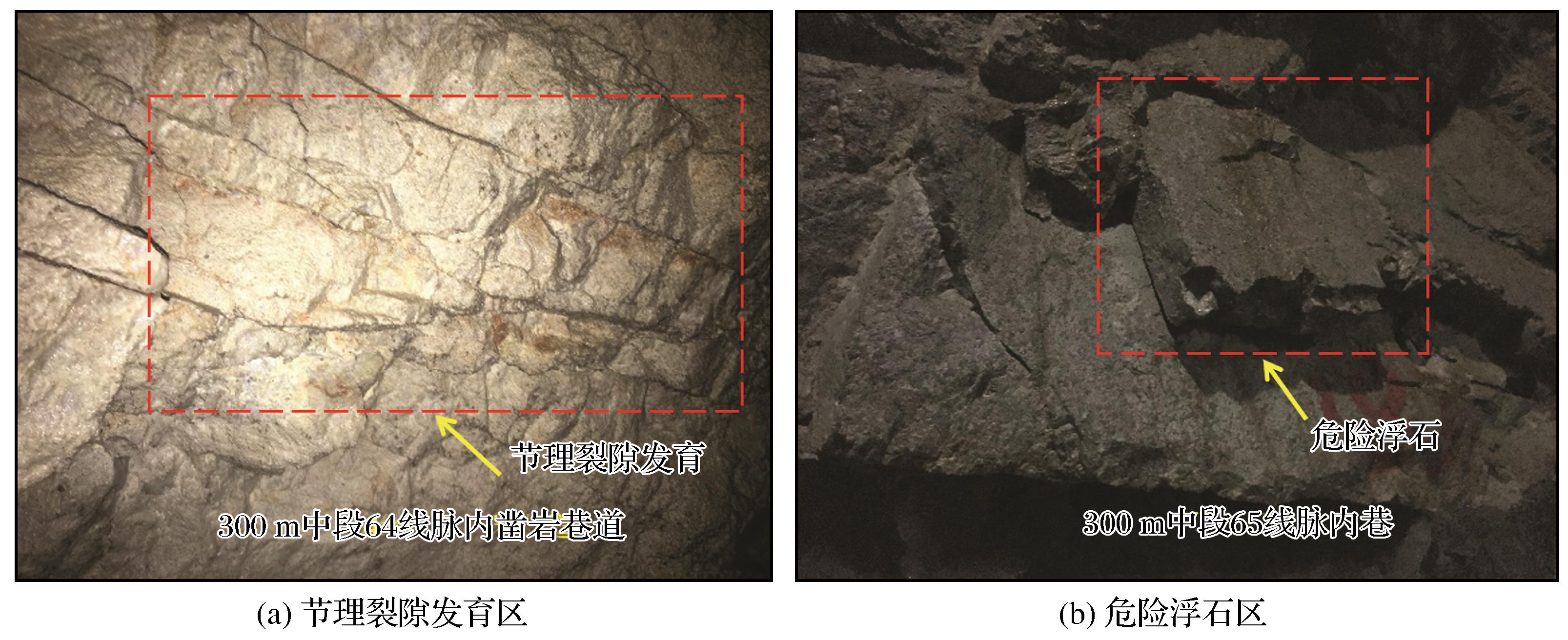

图2

围岩情况现场调查"

表3

测点数据"

测点编号指标值
X1X2X3X4X5
1105.01620.465.86.1
292.84550.414.25.4
392.84600.444.76.7
4105.01680.475.38.5
576.80830.486.27.9

表4

评价指标排序和rk 赋值"

专家编号指标排序r2r3r4r5
1X2>X3>X4>X1>X51.61.51.41.3
2X2>X4>X1>X3>X51.71.01.21.1
3X2>X3>X5>X4>X11.71.21.31.0
4X3>X2>X4>X5>X11.61.41.21.1

表5

G1法权重计算结果"

指标专家排序结果ω1
专家1专家2专家3专家4
X10.2430.1430.1730.2250.196
X20.3890.3210.3530.3590.356
X30.0890.1580.1330.1220.126
X40.1160.1890.2080.1600.168
X50.1620.1890.1330.1340.155

表6

熵权法和综合权重计算结果"

指标ω2ω
X10.1600.178
X20.2670.313
X30.1620.144
X40.1990.183
X50.2120.183

表7

岩体质量评价结果"

测点相对贴进度本文方法G1法EW法工程实测
10.50.4650.5160.4970.5
20.50.4780.5100.5920.5
30.50.4760.4970.4320.5
40.50.5020.5050.4680.5
50.50.5120.4910.4800.5
