黄金科学技术 ›› 2018, Vol. 26 ›› Issue (3): 365-371.doi: 10.11872/j.issn.1005-2518.2018.03.365

• 采选技术与矿山管理 • 上一篇    下一篇

基于AHP和熵权TOPSIS模型的岩爆预测方法

卢富然,陈建宏

  1. 中南大学资源与安全工程学院,湖南 长沙 410083
  • 收稿日期:2017-05-27 修回日期:2017-08-09 出版日期:2018-06-30 发布日期:2018-07-28
  • 作者简介:卢富然(1992-),男,辽宁铁岭人,硕士研究生,从事采矿工艺与技术研究工作。1670635059@qq.com
  • 基金资助:
    国家自然科学基金项目“地下金属矿采掘计划可视化优化方法与技术研究”(编号:51374242)和国家自然科学基金青年基金项目“基于人工智能的矿山技术经济指标动态优化研究”(编号:51404305)联合资助


Rockburst Prediction Method Based on AHP and Entropy Weight TOPSIS Model

LU Furan,CHEN Jianhong

  1. School of Resources and Safety Engineering,Central South University,Changsha 410083,Hunan,China
  • Received:2017-05-27 Revised:2017-08-09 Online:2018-06-30 Published:2018-07-28

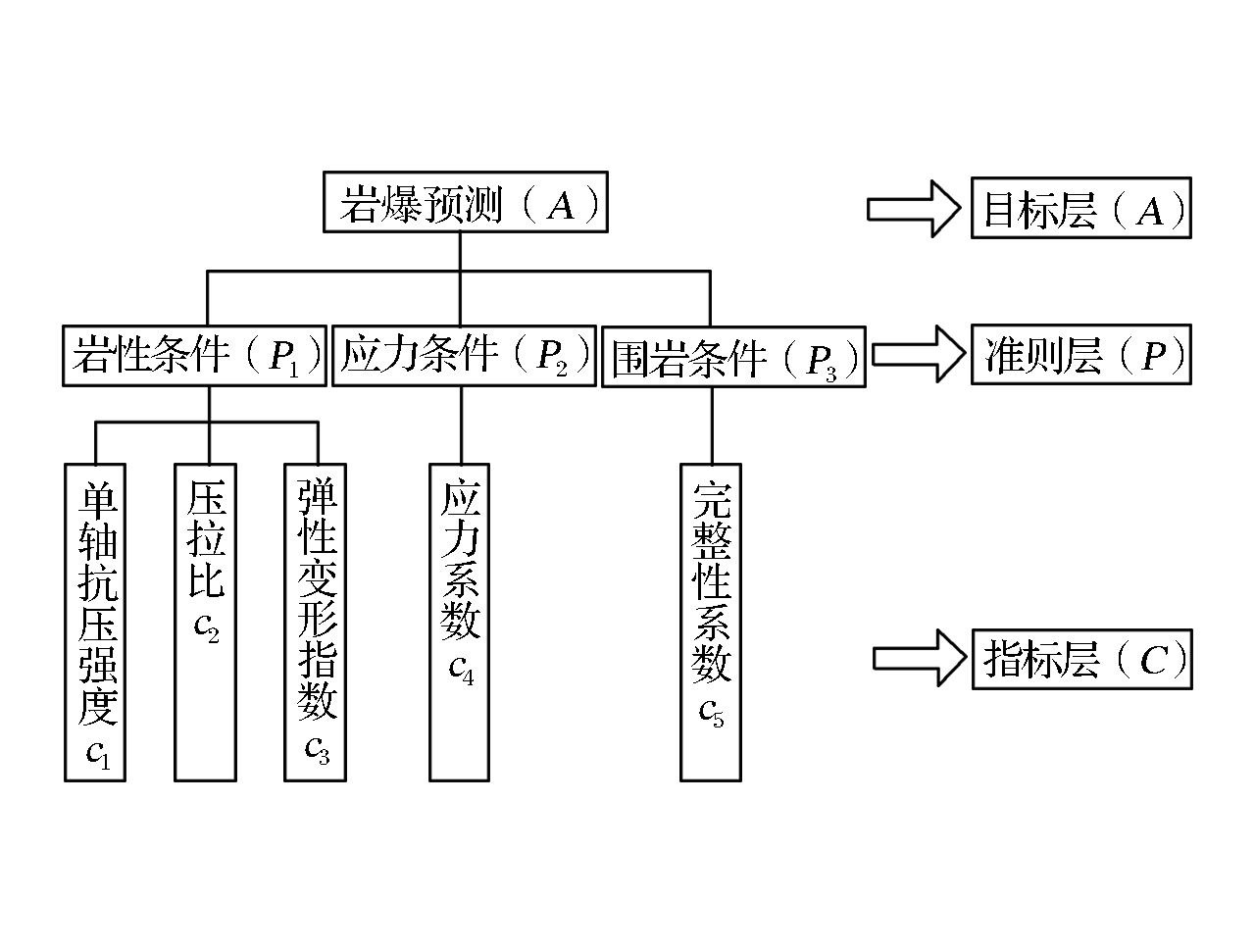

摘要: 为了准确预测地下金属矿的岩爆情况,建立了AHP和熵权TOPSIS模型。运用AHP和熵权法的基本原理,从岩性条件、应力条件和围岩条件3个方面选取预测指标,最终确定的指标为岩石的单轴抗压强度〖σ〗_c、压拉比〖σ〗_c/σ_t、弹性变形指数〖W〗_et、切应力与单轴抗压强度的比值〖σ〗_θ/σ_c和完整性系数〖K〗_v,分别为各预测指标分配合理的权重。然后,运用TOPSIS的基本原理,结合AHP和熵权法得到的权重来计算各岩爆等级临界值和实际矿山数据的贴近度,通过对比这2个贴近度来预测岩爆是否发生。实例研究表明:所建模型得到的预测结果与工程实际情况相一致,因此认为AHP和熵权TOPSIS模型可用于准确预测地下矿山的岩爆问题。

关键词: 层次分析法, 熵权法, 逼近理想解排序法, 岩爆, 预测指标, 权重分配, 金属矿山, 深部开采

Abstract: To accurately predict the rockburst of underground metal mine,a AHP and entropy weight TOPSIS model was established.The predictors of rockburst were selected from lithological,stress and rock conditions,the weight of uniaxial compressive strength 〖σ〗_c,the rate of rock’s compressive tensile strength 〖σ〗_c/σ_t,the elastic energy index of rock 〖W〗_et,the stress coefficient of rock 〖σ〗_θ/σ_c and integrality coefficient 〖K〗_v were calculated as the predictors of rockburst by AHP and entropy weight method.Then the closeness of rockburst levels’ critical values and realistic mines’ data were calculated by TOPSIS,combined with the weight calculated by AHP and entropy weight method.The occurrence of rockburst was predicted by comparing these two closenesses.Case study shows the predicted result of the established model is consistent well with the practical engineering,so the AHP and entropy weight TOPSIS model can be used to predict rockburst of underground metal mine accurately.

Key words: analytic hierarchy process, entropy weight method, technique for order preference by similarity to ideal solution, rockburst, prediction index, weight allocation, metal mine, deep mining

中图分类号:

  • TU45
[1] 古德生,周科平.现代金属矿业的发展主题[J].金属矿山,2012,47(7):1-8.<br />
Gu Desheng,Zhou Keping.Development theme of the modern metal mining[J].Metal Mine,2012,47(7):1-8.<br />
[2] 蔡美峰,冀东,郭奇峰.基于地应力现场实测与开采扰动能量积聚理论的岩爆预测研究[J].岩石力学与工程学报,2013,32(10):1973-1980.<br />
Cai Meifeng,Ji Dong,Guo Qifeng.Study of rockburst prediction based on in-situ stress measurement and theory of energy accumulation caused by mining disturbance[J].Chinese Journal of Rock Mechanics and Engineering,2013,32(10):1973-1980.<br />
[3] 胡敏,陈建宏,陆玉根.基于遗传算法和BP神经网络岩爆预测[J].矿业研究与开发,2011,31(5):90-94.<br />
Hu Min,Chen Jianhong,Lu Yugen.Research on rock burst prediction based on BP neural network and GA[J].Mining Research and Development,2011,31(5):90-94.<br />
[4] 冯夏庭,赵洪波.岩爆预测的支持向量机[J].东北大学学报,2002,23(1):57-59.<br />
Feng Xiating,Zhao Hongbo.Prediction of rockburst using support vector machine[J].Journal of Northeastern University,2002,23(1):57-59.<br />
[5] 王元汉,李卧东,李启光,等.岩爆预测的模糊数学综合评判方法[J].岩石力学与工程学报,1998,17(5):493-501.<br />
Wang Yuanhan,Li Wodong,Li Qiguang,et al.Comprehensive method for estimating rock burst with Fuzzy[J].Chinese Journal of Rock Mechanics and Engineering,1998,17(5):493-501.<br />
[6] 宫凤强,李夕兵.岩爆发生和烈度分级预测的距离判别方法及应用[J].岩石力学与工程学报,2007,26(5):1013-1018.<br />
Gong Fengqiang,Li Xibing.A distance discriminant analysis method for prediction of possibility and classification of rockburst and its application[J].Chinese Journal of Rock Mechanics and Engineering,2007,26(5):1013-1018.<br />
[7] 张炳江.层次分析法及其应用案例[M].北京:电子工业出版社,2014:17-22.<br />
Zhang Bingjiang.Analytic Hierarchy Process and Its Application Cases[M].Beijing:Publishing House of Electronics Industry,2014:17-22.<br />
[8] 尹土兵,王品,张鸣鲁.基于AHP及模糊综合评判的地下金属矿山安全分析与评价[J].黄金科学技术,2015,23(3):60-66.<br />
Yin Tubing,Wang Pin,Zhang Minglu.Analysis and evaluation of safety in underground metal mine based on AHP and Fuzzy evaluation method[J].Gold Science and Technology,2015,23(3):60-66.<br />
[9] 陈建宏,覃曹原,刘栋.基于AHP和熵权VIKOR法的矿井通风系统优选[J].世界科技研究与发展,2016,38(5):955-959.<br />
Chen Jianhong,Qin Caoyuan,Liu Dong.Optimization of mine ventilation system based on AHP and entropy weight VIKOR method[J].World Sci-Tech R&D,2016,38(5):955-959.<br />
[10] 陈建宏,邹哲,任聪亚.基于AHP-VIKOR法的采矿方法优选研究[J].黄金科学技术,2015,23(3):50-54.<br />
Chen Jianhong,Zou Zhe,Ren Congya.Research on optimization of mining method based on the AHP-VIKOR method[J].Gold Science and Technology,2015,23(3):50-54.<br />
[11] 王新民,康虔,秦健春,等.层次分析法—可拓学模型在岩质边坡稳定性安全评价中的应用[J].中南大学学报(自然科学版),2013,44(6):2455-2462.<br />
Wang Xinmin,Kang Qian,Qin Jianchun,et al.Application of AHP-extenics model to safety evaluation of rock slope stability[J].Journal of Central South University(Science and Technology),2013,44(6):2455-2462.<br />
[12] 任玉辉,肖羽堂.层次分析法在校园火灾危险性分析中的应用[J].安全与环境工程,2008,15(1):85-88.<br />
Ren Yuhui,Xiao Yutang.Application of analytic hierarchy process to the campus fire hazard analysis[J].Safety and Environmental Engineering,2008,15(1):85-88.<br />
[13] 吴立云,杨玉中,张强.矿井通风系统评价的TOPSIS方法[J].煤炭学报,2007,32(4):407-410.<br />
Wu Liyun,Yang Yuzhong,Zhang Qiang.TOPSIS method for evaluation on mine ventilation system[J].Journal of China Coal Society,2007,32(4):407-410.<br />
[14] 万孝衡,王新民,朱阳亚,等.基于组合赋权TOPSIS法的采场结构参数优选[J].黄金科学技术,2014,22(5):69-73.<br />
Wan Xiaoheng,Wang Xinmin,Zhu Yangya,et al.Optimization of the stope structural parameters based on empowerment combination TOPSIS[J].Gold Science and Technology,2014,22(5):69-73.<br />
[15] Wu J,Sun J S,Zha Y,et al.Ranking approach of cross-efficiency based on improved TOPSIS technique[J].Journal of Systems Engineering and Electronics,2011,22(4):604-608.<br />
[16] 邬书良,周智勇,陈建宏,等.直觉模糊集TOPSIS的露天矿岩体质量评价[J].中南大学学报(自然科学版),2016,47(7):2463-2468.<br />
Wu Shuliang,Zhou Zhiyong,Chen Jianhong,et al.Evaluation of rock mass quality based on intuitionistic Fuzzy set TOPSIS in open-pit mine[J].Journal of Central South University(Science and Technology),2016,47(7):2463-2468.<br />
[17] 王新民,李天正,陈秋松,等.基于变权重理论和TOPSIS的充填方式优选[J].中南大学学报(自然科学版),2016,47(1):198-203.<br />
Wang Xinmin,Li Tianzheng,Chen Qiusong,et al.Filling way optimization based on variable weight theory and TOPSIS[J].Journal of Central South University(Science and Technology),2016,47(1):198-203.<br />
[18] 张钦礼,程健,王新民,等.基于灰色关联和加权TOPSIS法的采矿方法优选[J].科技导报,2013,31(31):38-42.<br />
Zhang Qinli,Cheng Jian,Wang Xinmin,et al.Mining method optimization based on GRA and weighted TOPSIS method[J].Science & Technology Review,2013,31(31):38-42.<br />
[19] 宫凤强,李夕兵,张伟.基于Bayes判别分析方法的地下工程岩爆发生及烈度分级预测[J].岩土力学,2010,31(增1):370-378.<br />
Gong Fengqiang,Li Xibing,Zhang Wei.Rockburst prediction of underground engineering based on bayes discriminant analysis method[J].Rock and Soil Mechanics,2010,31(Supp.1):370-378.<br />
[20] 史秀志,周健,董蕾,等.未确知测度模型在岩爆烈度分级预测中的应用[J].岩石力学与工程学报,2010,29(增1):2720-2726.<br />
Shi Xiuzhi,Zhou Jian,Dong Lei,et al.Application of unascertained measurement model to prediction of classification of rockburst intensity[J].Chinese Journal of Rock Mechanics and Engineering,2010,29(Supp.1):2720-2726.<br />
