Study on Structure Ore-controlling Characteristics and Metallogenic Regulartiy of Dongcaogou Gold-Silver Deposit in Xiong’ershan Area

Housheng XU1(),Dexian ZHANG2,3()

  1. 1.Henan Found Mining Co. , Ltd. , Luoning 471716, Henan, China
    2.School of Geosciences and Info-physics, Central South University, Changsha 410083, Hunan, China
    3.Key Laboratory of Metallogenic Prediction of Nonferrous Metals and Geological Environment Monitoring, Central South University, Changsha 410083, Hunan, China
  • Received:2022-08-31 Revised:2022-12-27 Online:2023-04-30 Published:2023-04-27
  • Contact: Dexian ZHANG;


The Xiong’ershan ore concentration area is located in the middle eastern part of the Qinling orogenic belt. Multi-stage tectonic activity leads to regional multi-level faults,among which the first-grade fault is a deep fault with multi-stage activity and structural inheritance characteristics,which controls the distribution of original source of ore-forming materials and regional mineralization.The second-grade fault controls the distribution of metallogenic belts.The third and fourth grade faults are the main ore hosting faults.The regional extension and tectonic extension in Yanshanian period led to extensive magmatic activities,which provided important material and energy sources for mineralization.The interaction between the Yanshanian mantle and the crust led to large-scale magmatic activities and tectonic movement,thus forming a large number of precious and nonferrous metal deposits of different stages and scales in the area.The Dongcaogou deposit is a new gold-silver deposit discovered in the Xiong’ershan ore concentration area in recent years,which is still in the stage of exploration and development.Field structural analysis shows that the orebody of the Dongcaogou deposit is strictly controlled by faults.From the end of Indosinia to the early Yanshanian,the structure in the near EW direction is dominant in this region,with minor NNE-near SN direction faults.Five stages of tectonic activities in the deposit were identified in this study,and their sequence and tectonic stress field are as follows:The first stage tectonic stress field is near SN compression,the second stage tectonic stress field is near EW compression,the third stage tectonic stress field is NW compression,these three stages fault are pre-mineralization structures,the fourth stage tectonic stress field is NNE compression,which is a fault structure in the syn-mineralization,and the late stage tectonic stress field is converted into extension due to stress relaxation.The fifth stage tectonic stress field is NE compression,which is a post-mineralization fault.According to the occurrence,kinematics and deformation characteristics,the ore-control faults can be divided into structural fracture zone (strong structural deformation zone) and steep fault.The study of the time-space relationship between structure and mineralization shows that the ore-controlling faults in the early and late ore-forming stages have obviously difference in structural characteristics.In the early ore-forming stage (late Indosinian early Yanshanian) ,the ore-controlling faults are compressive faults and show obvious ductile brittle deformation where S-C structures and tectonic schistosity zones are developed,reflecting a tectonic stress field of nearly S-N compression. In the late ore forming stage (middle and late Yanshanian) ,the ore-controlling faults are characterized by tensile faults and brittle deformation,and the ore veins are characterized by typical expansive filling veins,which suggested that tectonic stress field is nearly E-W oriented extension.The ore-controlling faults in different directions in the area are multi-directional conjugate fault systems formed under the near S-N direction compression,and the secondary faults derived from them.The assembly patterns of the compound conjugate fault system control the spatial distribution and pattern of ore bodies in the Dongcaogou Au-Ag deposit.

Key words: ore-controlling fault, tectonic stress filed, ore-control regularity, tectonic evolution, Dongcaogou Au-Ag deposit, Xiong’ershan ore concentration area

CLC Number:

  • P618.5


Tectonic location(a) and regional geological map(b) of Xiong’ershan area and geological map of Dongcuogou Au-Ag deposit(c)"


Ore-controlling fracture and ore-bearing fracture zone in Dongcaogou gold deposit"

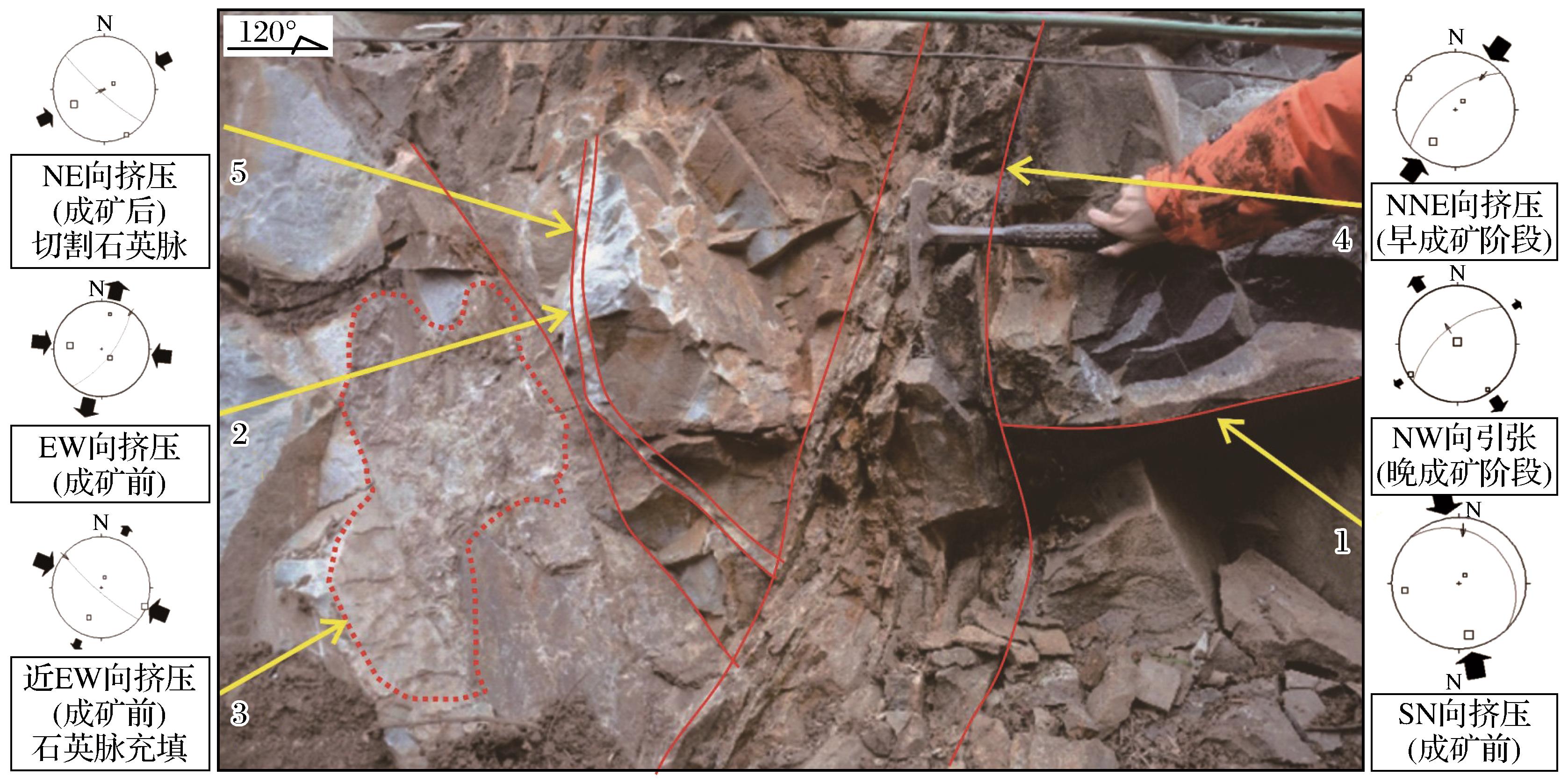

Analysis of five stages of ore-controlling tectonic activity and paleostress field in the mining area"

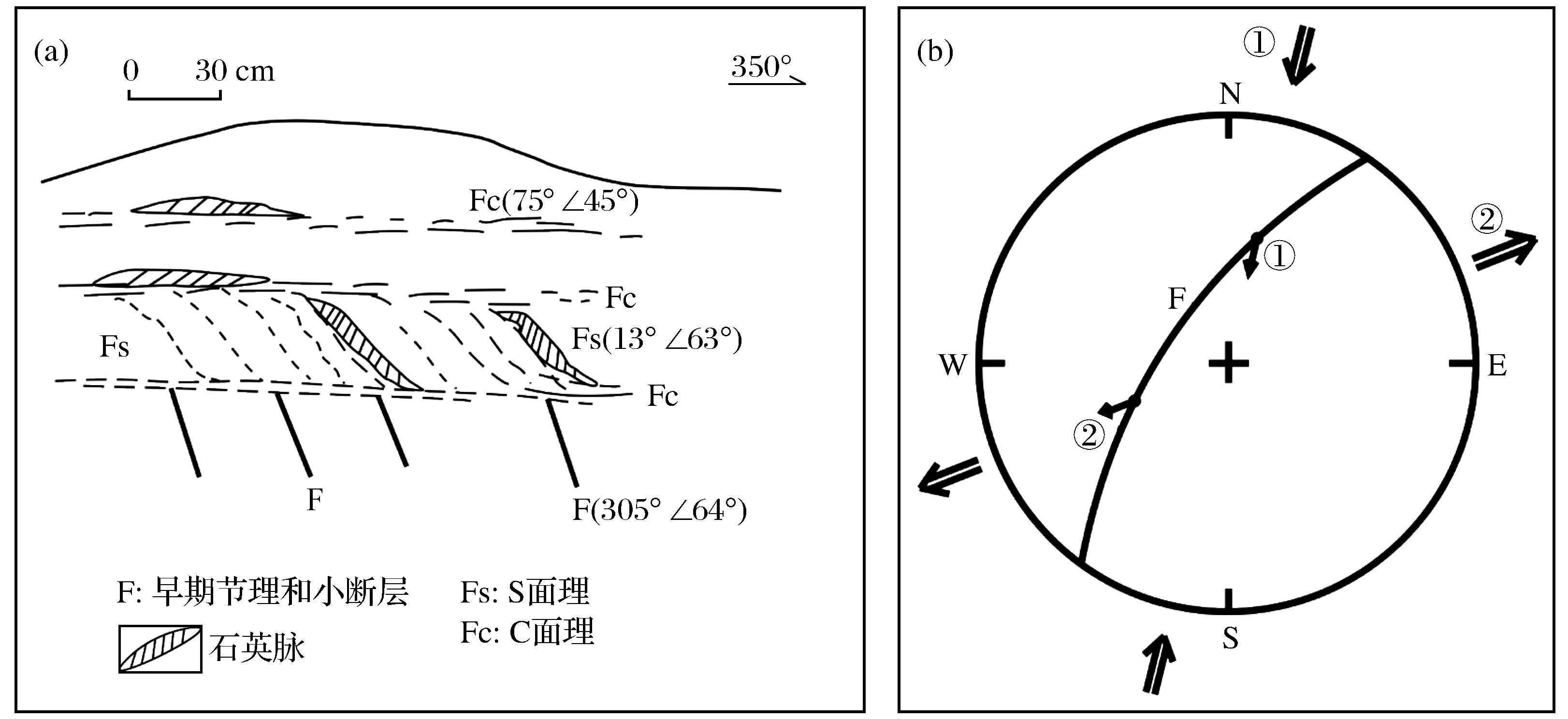

Sketch map of C9 vein (a) and its tectonic stress filed (b) in the level 843 of Dongcaogou gold deposit"

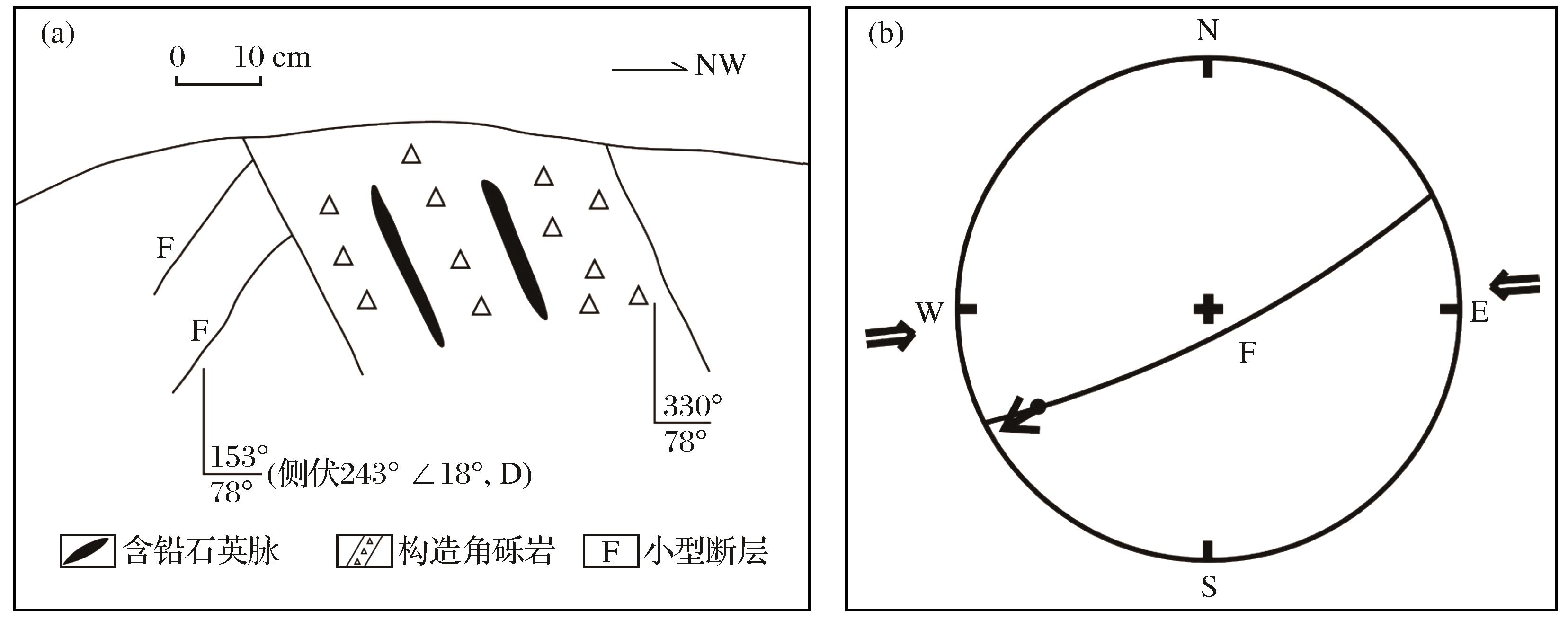

Sketch map for stage Ⅱ(a) and its tectonic stress filed(b)"

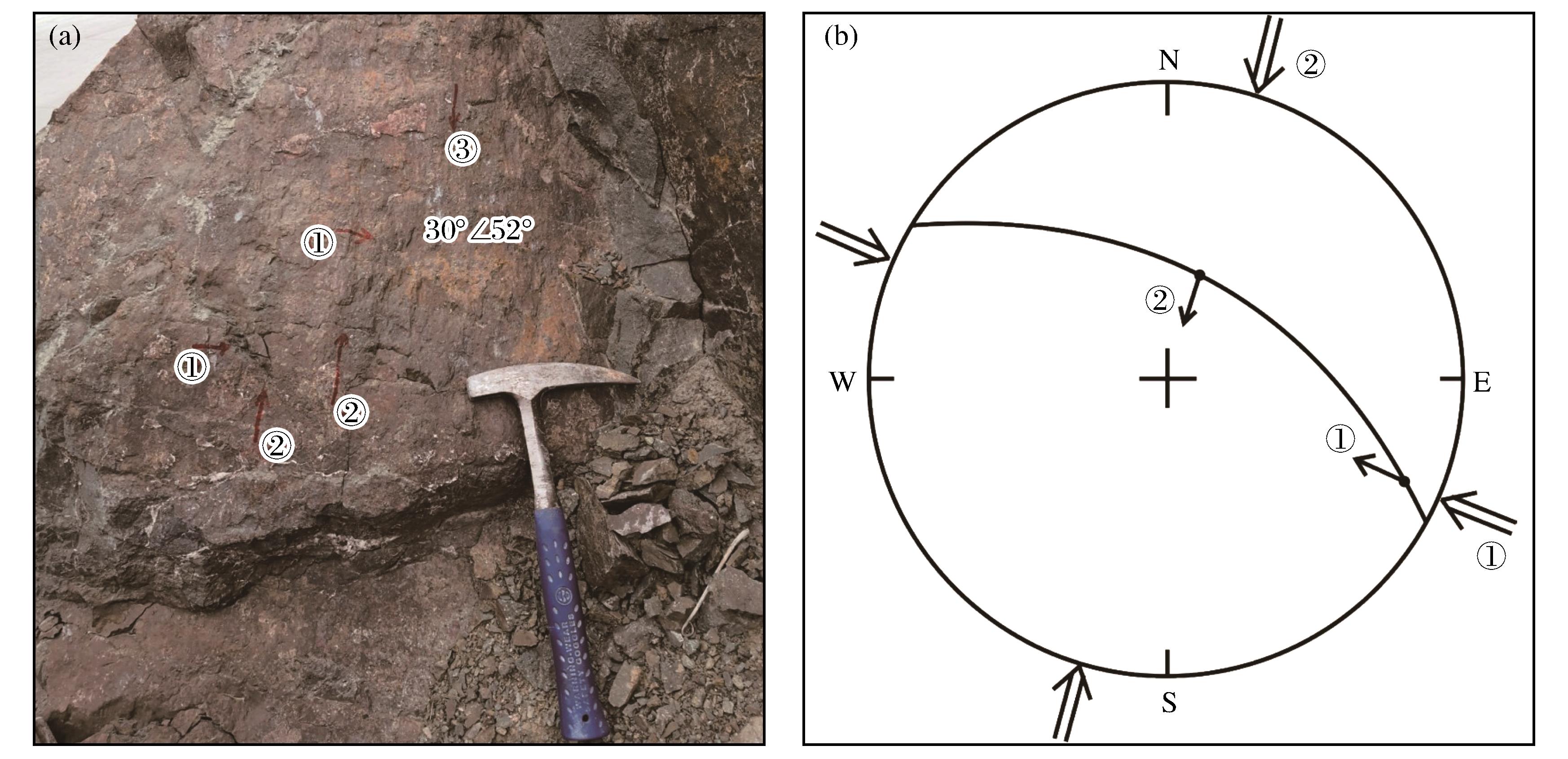

Structural scratches for stage Ⅲ and Ⅳ(a) and its tectonic stress filed(b)"

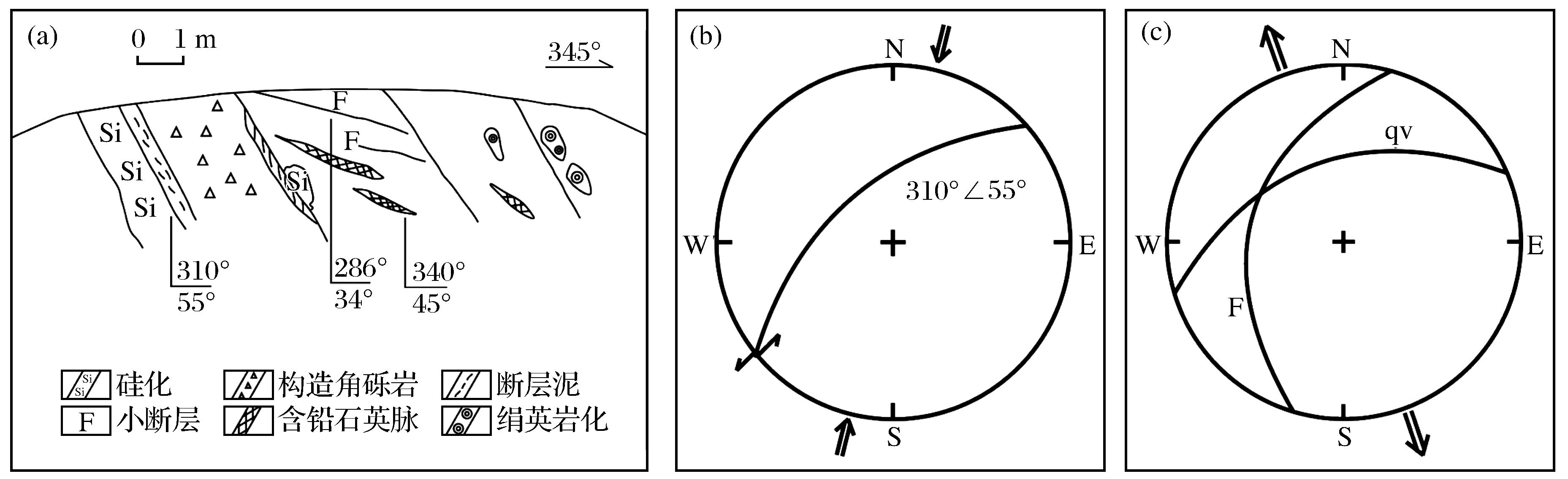

Sketch map of No.76 orebody(a) and its tectonic stress filed (b,c) in the level 800 of Dongcaogou gold deposit"


Cutting relationships among multi-phase faults and ore-bearing vein"

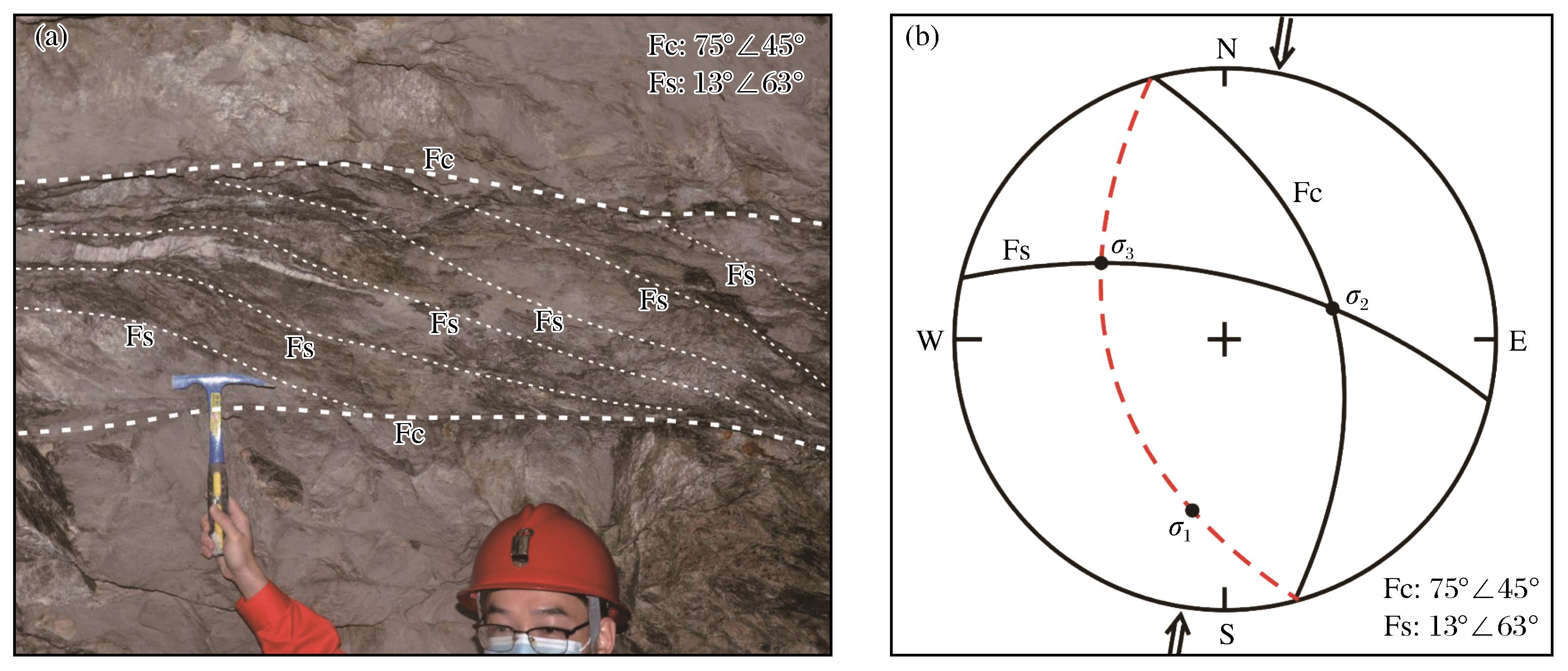

Ore-controlling fracture zone develops along S-foliation and syn curved ore-bearing vein (a) and tectonic stress field inverted by S-C foliation (b)"

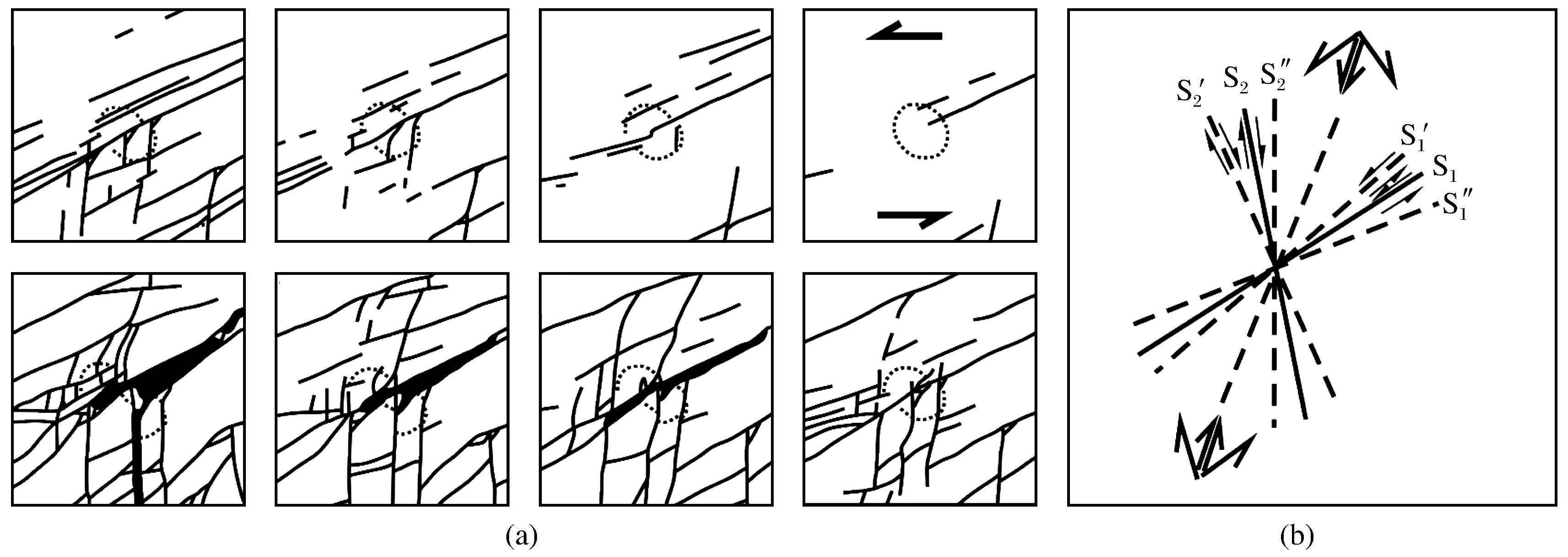

Ore-controlling fault assemblage (a) and their formation mechanism(b)"

Bai Desheng, Chen Liang, Wang Huabing,2018.Geological characteristics and metallogeny of the Huaishuping gold deposit in Songxian County,Henan Province[J].Geology and Exploration,54(3):479-489.
Cao M, Yao J, Deng X,et al,2017.Diverse and multistage Mo,Au,Ag-Pb-Zn and Cu deposits in the Xiong’er Terrane,East Qinling:From Triassic Cu mineralization [J].Ore Geology Reviews,81:565-574.
Cui M, Zhang B, Zhang L,2011.U-Pb dating of baddeleyite and zircon from the Shizhaigou diorite in the southern margin of North China Craton:Constrains on the timing and tectonic setting of the Paleoproterozoic Xiong’er group[J].Gondwana Research,20(1):184-193.
Gao Guangming, Peng Ensheng,1992.A preliminary research on the explanation of linear structure network and its formation mechanism of Tm image from Xiong’ershan area [J].Geotectonica et Metallogenia,16(2):215-217.
Gong Jianghua,2009.Ore-controlling Discipline and Prediction for Deep or Adjacent Ore Prospecting of Ag-polymetallic Deposits in Western Part of Xiong’ershan[D].Changsha:Central South University.
Guo Baojian, Li Yongfeng, Wang Zhiguang,et al,2005.Type,metallogenetic regularities,mineralization model and prospecting proposal in the Xiong’ershan District [J].Geology and Prospecting,41(5):43-47.
Guo Jun,2021.A Geochemical Study of Mesozoic Magmatic Rocks from the Xiaoqinling-Xiong’er Shan Area in the Southern Margin of the North China Block [M].Hefei:University of Science and Technology of China.
Healy D, Blenkinsop T G, Timms N E,et al,2015.Polymodal faulting:Time for a new angle on shear failure[J].Journal of Structural Geology,80:57-71.
Ismat Z,2015.What can the dihedral angle of conjugate-faults tell us? [J].Journal of Structural Geology,73:97-113.
Li Jianquan,2010.Geology and Geochemistry of Auriferous Strata in Xiong’ershan Goldfield [D].Beijing:China University of Geosciences(Beijing).
Li Liantao, Xu Gongquan, Wang Aizhi,2009.Analysis on the ore-controlling factors of the Xiong’ershan gold deposit,Henan[J].Mineral Resources and Geology,23(2):152-157.
Li N, Chen Y J, Santosh M,et al,2018.Late Mesozoic granitoids in the Qinling orogen,Central China,and tectonic significance[J].Earth-Science Reviews,182:141-173.
Li Xiaolong,2021.Study on Mineralization and Prospecting Models of Gold Deposits in the Xiong’ershan,Western Henan Province [M].Beijing:China University of Geosciences(Beijing ).
Li Yongfeng, Luo Zhengchuan, Li Junping,et al,2011.Mineralization and prediction of nonferrous precious metals in Xiong’ershan area,western Henan[R].Zhengzhou:He-nan Nonferrous Metals Geology and Mineral Resources Bureau.
Li Zhanke, Li Jianwei,2010.Carbon and oxygen isotope evidence of ore-forming fluid source of Shagou silver-lead-zinc deposit in Xiong’ershan area [J].Mineral Deposits,29(Supp.1):466-467.
Liang Tao, Lu Ren, Bai Fengjun,et al,2012.Spatial distribution features of Ag,Ag-Pb,Au,Mo and Pb deposits(mineralization spots) in Xiong’ershan,western Henan Province,and their implicatiotion for prospecting[J].Mineral Deposits,31(3):590-600.
Liesa C L, Lisle R J,2004.Reliability of methods to separate stress tensors from heterogeneous fault-slip data[J].Journal of Structural Geology,26(3):559-572.
Liu Wenyi, Liu Jishun, He Meixiang,et al,2018.Geochemical features of Au-Ag polymetallic deposits in Xiong’ershan ore district of western Henan and their geological significances[J].The Chinese Journal of Nonferrous Metals,28(7):1401-1417.
Lu Xinxiang,2004.Study on the relationship between mantle fluid and gold deposits in Xiaoqinling-Xiong’ershan area[R].Zhengzhou:Henan Institute of Geological Sciences.
Lu Xinxiang, Yu Xiangdong, Yu Zaiping,et al,2003.Characteristics of ore-forming fluids in gold deposits of Xiaoqinling-Xiong’ershan area[J].Mineral Deposits,22(4):377-385.
Lu Xinxiang, Yu Xiangdong, Yu Zaiping,et al,2004.Minerogenesis of gold and its coupling with tectonics in Xiaoqinling-Xiong’ershan region[J].Gold Geology,10(1):1-5.
áF Nieto-Samaniego,1999.Stress,strain and fault patterns[J].Journal of Structural Geology,21(8):1065-1070.
Wang Tuanhua, Xie Guiqing, Ye Anwang,et al,2009.Material sources of gold deposits in Xiaoqinling-Xiong’ershan area of western Henan Province as well as the relationship between gold deposits and intermediate-basic dykes[J].Acta Geoscientica Sinica,30(1):27-38.
Wang Yitian, Ye Huishou, Liu Junchen,et al,2021.Extensional tectonic setting of the Triassic metallogenic event in the Xiaoqinling gold field:Evidence from 40Ar-39Ar chronology of the tectonite[J].Acta Petrologica Sinica,37(8):2419-2430.
Wu Fafu,2010.Yanshaninan Minerogenetic System of Gold Deposits in Xiong’ershan Gold Ore Concentration Region[M].Beijing:China University of Geosciences(Beijing ).
Wu Fafu, Gong Qingjie, Shi Jianxi,et al,2012.Ore-controlling geological factors of gold deposits in the Xiong’ershan region,western Henan Province[J].Geology and Exploration,48(5):865-875.
Xu Gang, Zhang You, Fang Rong,et al,2013.Analysis of the type of gold deposits and ore-controlling factors in Xiong’ershan region,Henan Province[J].Gold,34(2):25-31.
Xu H, Yang Z, Peng P,et al,2017.Magnetic fabrics and rock magnetism of the Xiong’er volcanic rocks and their implications for tectonic correlation of the North China Craton with other crustal blocks in the Nuna/Columbia supercontinent[J].Tectonophysics,712/713:415-425.
Zhang Dengtang, Feng Jianzhi, Li Lei,et al,2015.Discussion on post-collision lithospheric evolution and Au-Mo mineralization in the southern margin of the North China Craton[J].Geotectonica et Metallogenia,39(2):300-314.
Zhang Guowei, Meng Qingren, Lai Shaocong,1995.Structural structure of Qinling orogenic belt[J].Science in China,Seriese B,25(9):994-1003.
Zhang Zengrong, He Shaoxun, Peng Ensheng,1992.Extension tectonics and its relation to gold metallogenesis in Xiong’ershan [J].Geotectonica et Metallogenia,16(2):199-200.
