考虑岩石微缺陷影响的损伤本构模型

doi:10.11872/j.issn.1005-2518.2023.03.164

摘要/Abstract

摘要：

为准确描述岩石应力—应变曲线非线性过程，提出了考虑岩石微缺陷影响的损伤本构模型。首先对含微缺陷岩石进行分析，把含微缺陷岩石抽象成不含微缺陷的岩石骨架部分和微缺陷部分。岩石微缺陷包括初始空隙和岩石受载新增的微裂纹，微缺陷只能产生应变，不能承受应力。初始空隙产生的应变反映压密阶段的非线性特征，新增的微裂纹产生的应变反映岩石峰后阶段应变软化，用修正系数b来表示新增微缺陷的影响，假设岩石骨架部分的损伤符合Weibull概率分布，最后推导出基于微裂纹的损伤本构模型，并给出参数V_m 、n、F₀、m和b的确定方法，对模型参数进行讨论。用砂岩和苏长岩试验数据进行验证，结果显示试验数据与理论结果相吻合。

关键词: 含微缺陷岩石, 本构模型, 微缺陷, 压密阶段, 应变软化, 修正系数

Abstract:

In order to accurately describe the whole process of rock stress-strain curve，a statistical damage contitutive model considering the effect of rock microdefects was proposed.Firstly，rocks containing microdefects are analysed and abstracted into a rock skeleton part and a defective part without microdefects.The rock microdefects include initial microdefects and new microdefects added to the rock by loading，which can only generate strain but not stress.The strain generated by the initial microdefects is negatively exponential to the stress during the compression-density stage，and the model parameters n and V_m are obtained by fitting the experimental curve of closed strain-stress for the microdefects.After the compression-density stage，the initial micro-defects are completely closed and the resulting strain is a constant.As additional micro-defects are mainly generated in large numbers in the post-peak stage，the effect of additional micro-defects on the post-peak stage is mainly considered.A variable b in the range of 0 to 1 is used to represent the weakening effect of the strain formed by the additional micro-defects on the strain generated in the rock.Different values of b can reflect the degree of strain softening in the rock，and a method for determining the value of b is given to obtain the value of b under different stress states for different rocks.The deformation of the rock skeletal part without micro-defects and whose damage conforms to the Weibull probability distribution，the deformation of the rock skeletal part and the micro-defective part make up the deformation of the rock，which leads to the derivation of the damage constitutive model of the rock，and the specific determination method of the parameters m and F₀ of this damage constitutive model is given.The parameters of the model are discussed.The smaller the value of b，the greater the strain generated by the new microcracks in the rock and the more obvious the strain softening is.The damage variables of the rock are analysed for different values of b.The smaller the value of b，the faster the damage value of the rock reaches 1 and the faster the skeletal part of the rock is damaged.The damage costitutive model in this paper takes into account the compression-density phase，the strain-softening phase，the effect of residual strain，and can characterise all phases of the rock stress-strain curve，and the model parameters are small and the method of determination is clear.Finally，the model is validated with sandstone and saprolite test data，and the test data agree with the theoretical results，indicating the reasonableness of the model.

Key words: rocks with microdefects, constitutive model, microdefects, compression-density stage, strain softening, correction factor

中图分类号:

TD853

刘志祥,晏孟洋,张双侠,熊帅,王凯. 考虑岩石微缺陷影响的损伤本构模型[J]. 黄金科学技术, 2023, 31(3): 507-515.

Zhixiang LIU,Mengyang YAN,Shuangxia ZHANG,Shuai XIONG,Kai WANG. Damage Constitutive Model Considering the Effect of Rock Microdefects[J]. Gold Science and Technology, 2023, 31(3): 507-515.

图/表 11

图1

图2

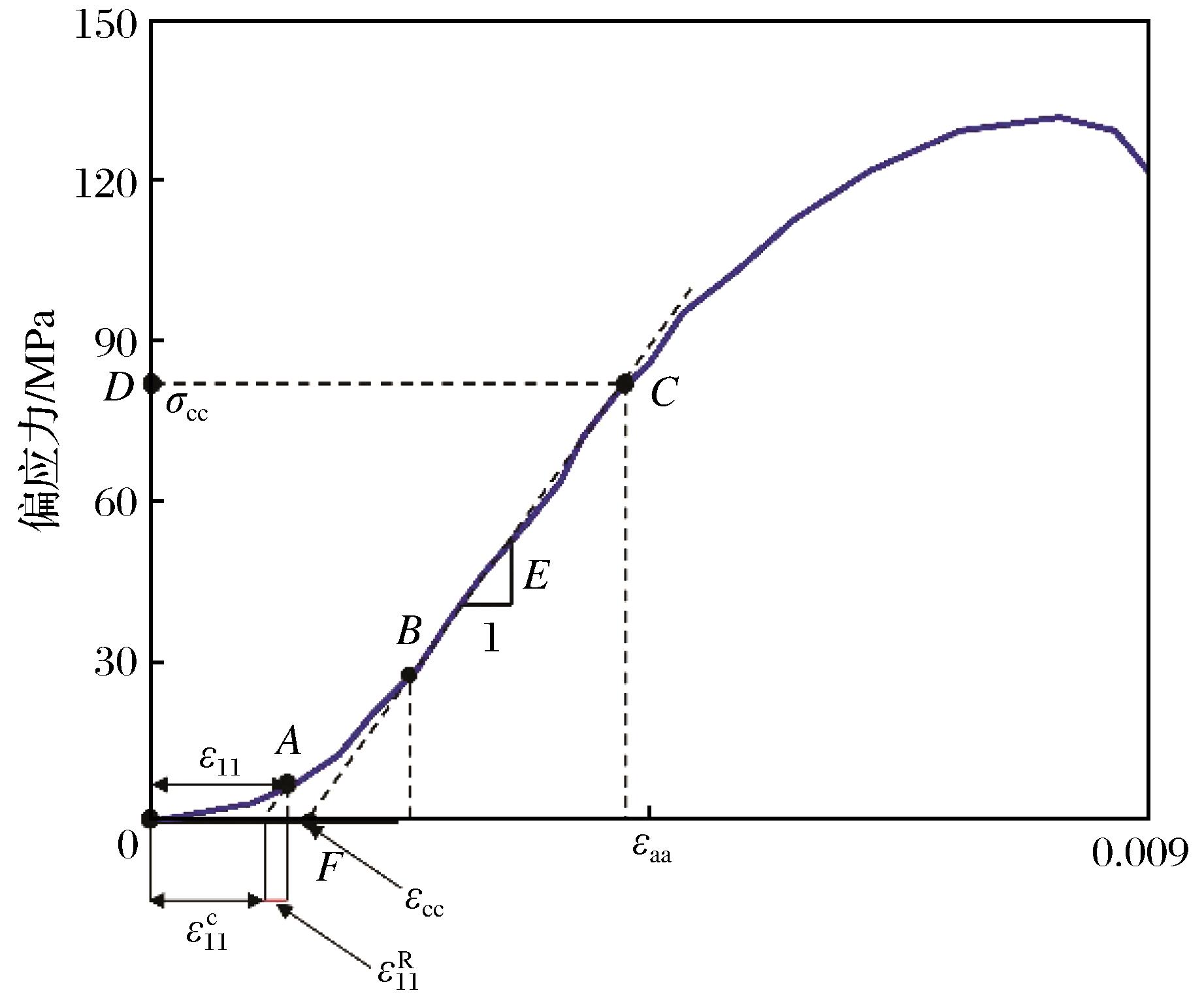

图3

图4

表1

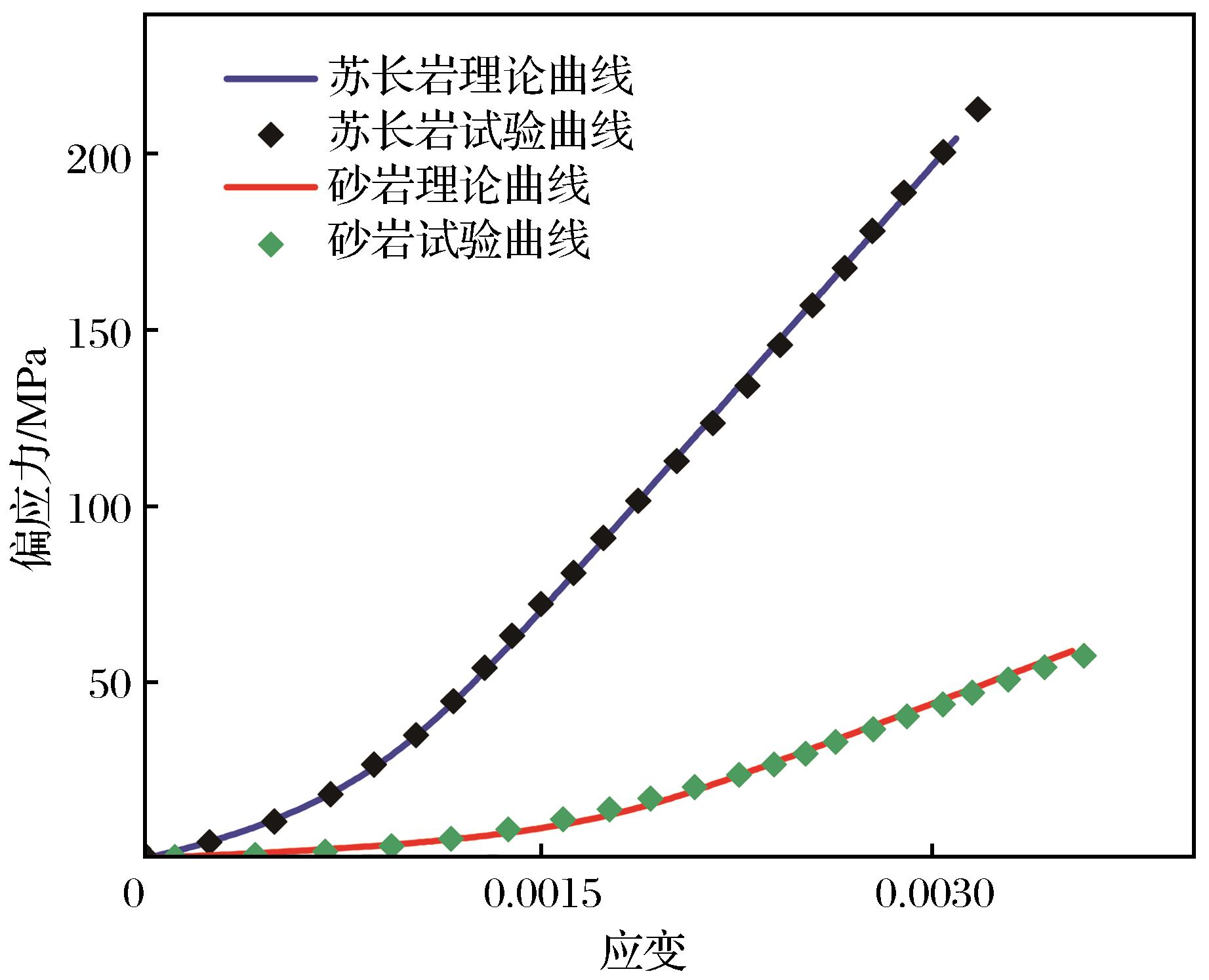

图5

表2

砂岩和苏长岩损伤演化方程参数"

岩石类型	σ₃₃ /MPa	σ $11 r$ /MPa	ε $11 p$ /%	σ $11 p$ /MPa	b=b（MSE_min）	F₀/%	m
砂岩	3	25.1474	0.74	107.1221	0.70	0.5271	8.7655
	5	37.2000	0.85	132.1709	0.74	0.6660	7.5065
	8	62.9458	0.98	156.6792	0.85	0.9274	3.4272
苏长岩	3	56.8732	0.44	249.1216	0.90	0.4307	6.8780
	5	69.0954	0.50	274.0948	0.85	0.4707	6.8579
	8	101.7840	0.58	306.4413	0.80	0.5192	6.6992

表2

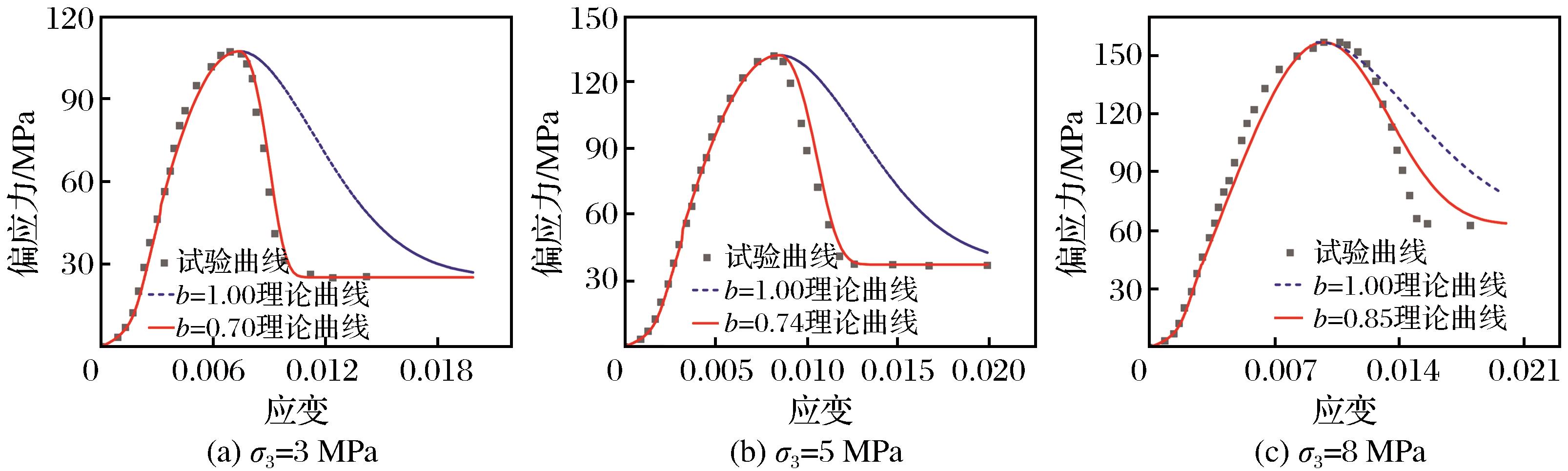

图6

图7

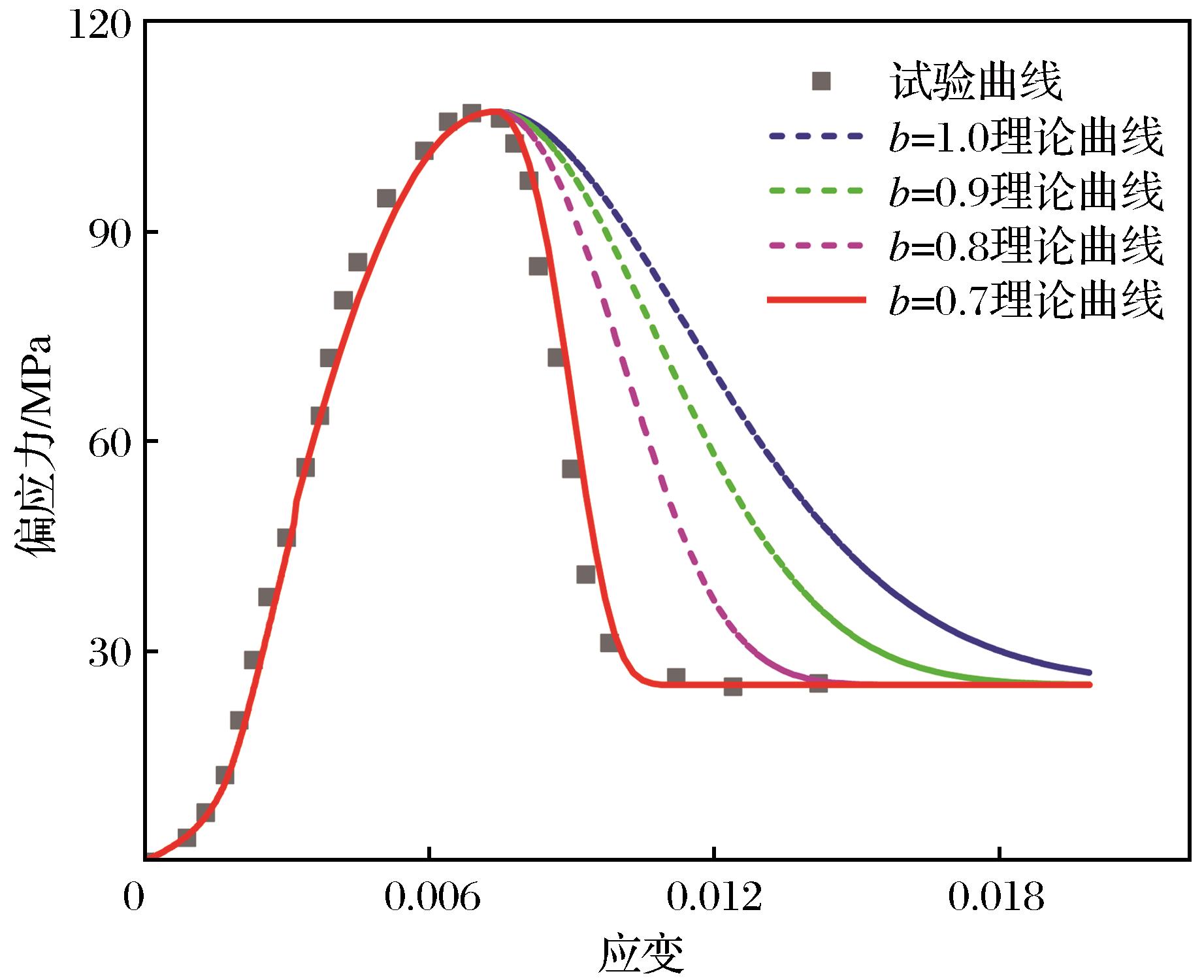

图8

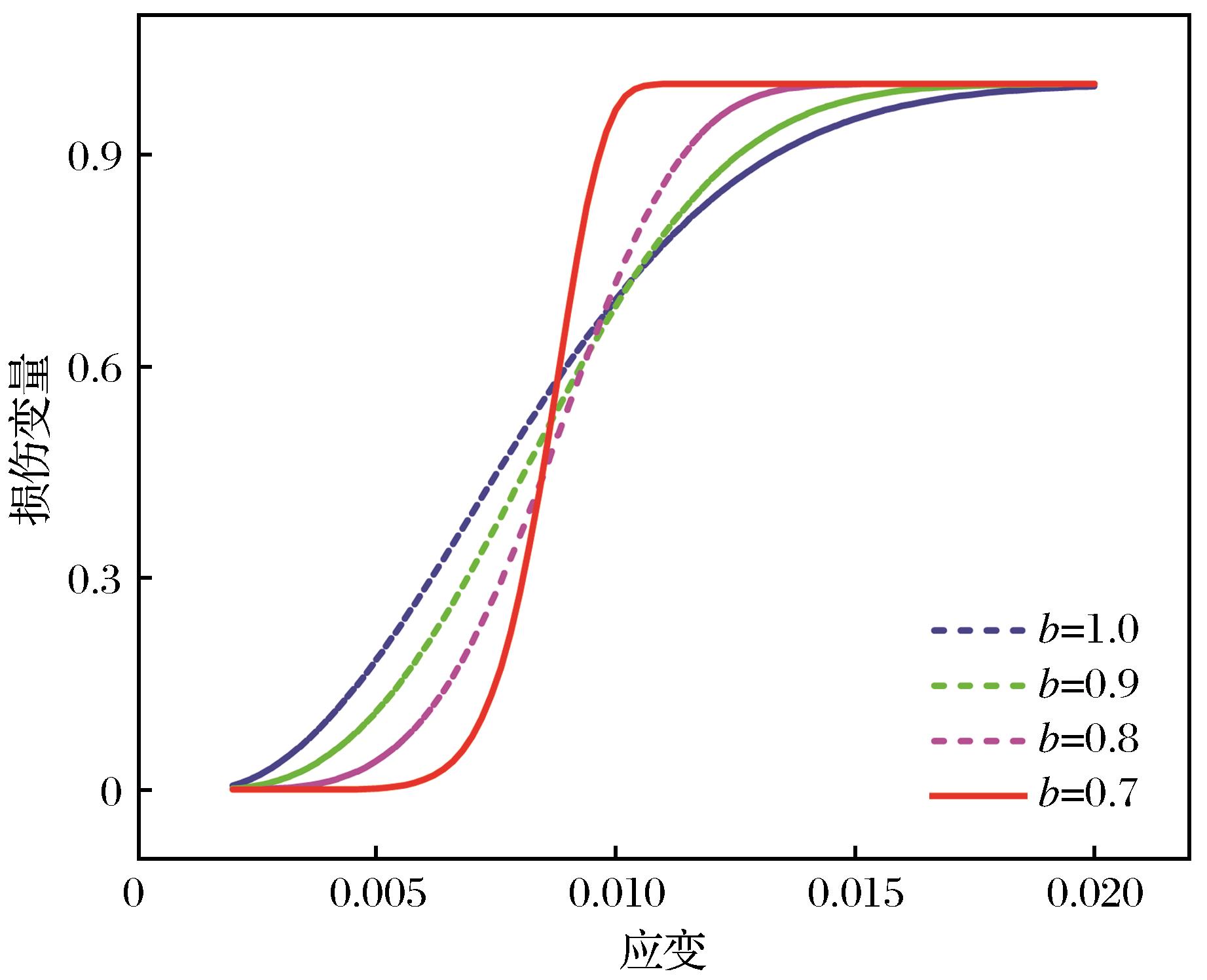

图9

参考文献 0

	Cao W， Zhao H， Li X，2010.Statistical damage model with strain softening and hardening for rocks under the influence of voids and volume changes［J］.Canadian Geotechnical Journal，47（8）：857-871.
	Cao Wengui， Zhang Chao， He Min，2016.A statistical damage simulation method for rock strain softening considering the characteristics of void compacting stage［J］.Journal of Geotechnical Engineering，38（10）：1754-1761.
	Cao Wengui， Zhao Heng， Li Xiang，2012.A statistical damage simulation method for the whole process of rock deformation based on residual strength deformation phase characteristics［J］.Journal of Civil Engineering，45（6）：139-145.
	Cao Wengui， Zhao Minghua， Tang Xuejun，2003.Study on statistical damage simulation of rock fracture process［J］.Journal of Geotechnical Engineering，（2）：184-187.
	Chen K， Tang M， Guo Z，2019.Comparative study on three-dimensional conventional and modified statistical damage constitutive models［J］.Multiscale and Multidisciplinary Modeling，Experiments and Design，2（4）：259-267.
	Chen S， Qiao C S， Ye Q，2018.Comparative study on three-dimensional statistical damage constitutive modified model of rock based on power function and Weibull distribution［J］.Environmental Earth Sciences，77（3）：108.
	Gao M B， Li T B， Wei T，et al，2018.A statistical constitutive model considering deterioration for brittle rocks under a coupled thermal-mechanical condition［J］.Geofluids，2018：1-10.DOI：10.1155/2018/3269423 . doi: 10.1155/2018/3269423
	He Manchao， Xie Heping， Peng Suping，2005.Study on rock mechanics in deep mining engineering［J］.Chinese Journal of Rock Mechanics and Engineering，24（16）：2803-2813.
	Hu B， Yang S Q， Xu P，et al，2018.Nonlinear rheological damage model of hard rock［J］.Journal of Central South University，25（7）：1665-1677.
	Huang J， Zhao M， Du X，2018.An elasto-plastic damage model for rocks based on a new nonlinear strength criterion［J］.Rock Mechanics and Rock Engineering，51（5）：1413-1429.
	Jia Baoxin， Chen Guodong， Liu Fengpu，2022.Ontogenetic model of rock damage at high temperature and its validation［J］.Geotechnics，43（Supp.2）：63-73.
	Lemaitre J A，1985.Continuous damage mechanics model for ductile materials［J］.Journal of Engineering Materials and Technology，107（1）：83-89.
	Li Haichao， Zhang Sheng，2017.Rock damage model based on modified Lemaitre strain equivalence assumption［J］.Geotechnics，38（5）：1321-1326.
	Liang Mingchun， Miao Shengjun， Cai Meifeng，2021.Ontogenetic model of rock damage considering shear expansion properties and post-peak morphology［J］.Journal of Rock Mechanics and Engineering，40（12）：2392-2401.
	Liu D， He M， Cai M，2018.A damage model for modeling the complete stress-strain relations of brittle rocks under uniaxial compression［J］.International Journal of Damage Mechanics，27（7）：1000-1019.
	Miao S， Wang H， Cai M，2018.Damage constitutive model and variables of cracked rock in a hydro-chemical environment［J］.Arabian Journal of Geosciences，11：1-14.
	Peng J， Rong G， Cai M，2015.A model for characterizing crack closure effect of rocks［J］.Engineering Geology，189：48-57.
	Yumlu M， Ozbay M U，1995.A study of the behaviour of brittle rocks under plane strain and triaxial loading conditions［J］.International Journal of Rock Mechanics and Mining Sciences & Geomechanics Abstracts，32（7）：725-733.
	Zhang Chao， Chen Qiunan， Yang Qijun，2020.Simulation of the whole process of deformation damage of brittle rocks considering initial void closure and its influence［J］.Journal of Coal，45（3）：1044-1052.
	Zhang Chao， Yang Chuqing， Bai Yun，2021.Analysis of damage evolution of rock-like brittle materials and its modeling method［J］.Geotechnics，42（9）：2344-2354.
	曹文贵，张超，贺敏，2016.考虑空隙压密阶段特征的岩石应变软化统计损伤模拟方法［J］.岩土工程学报，38（10）：1754-1761.
	曹文贵，赵衡，李翔，2012.基于残余强度变形阶段特征的岩石变形全过程统计损伤模拟方法［J］.土木工程学报，45（6）：139-145.
	曹文贵，赵明华，唐学军，2003.岩石破裂过程的统计损伤模拟研究［J］.岩土工程学报，（ 2）：184-187.
	何满潮，谢和平，彭苏萍，等，2005.深部开采岩体力学研究［J］.岩石力学与工程学报，24（16）：2803-2813.
	贾宝新，陈国栋，刘丰溥，2022.高温下岩石损伤本构模型及其验证［J］.岩土力学，43（增2）：63-73.
	李海潮，张升，2017.基于修正Lemaitre应变等价性假设的岩石损伤模型［J］.岩土力学，38（5）：1321-1326.
	梁明纯，苗胜军，蔡美峰，2021.考虑剪胀特性和峰后形态的岩石损伤本构模型［J］.岩石力学与工程学报，40（12）：2392-2401.
	张超，陈秋南，杨期君，2020.考虑初始空隙闭合及其影响的脆性岩石变形破坏全过程模拟［J］.煤炭学报，45（3）：1044-1052.
	张超，杨楚卿，白允，2021.岩石类脆性材料损伤演化分析及其模型方法研究［J］.岩土力学，42（9）：2344-2354.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

岩石种类	E/GPa	ε_cc/‰	V_m/‰	n	R²（拟合系数）
砂岩	28	1.37	1.43	4.64	0.9468
苏长岩	85	0.67	0.68	14.71	0.9924
