厚硬顶板弱化前后垮落致灾数值模拟研究

doi:10.11872/j.issn.1005-2518.2019.02.257

黄金科学技术 ›› 2019, Vol. 27 ›› Issue (2): 257-264.doi: 10.11872/j.issn.1005-2518.2019.02.257

• 采选技术与矿山管理 • 上一篇

厚硬顶板弱化前后垮落致灾数值模拟研究

吕闹(),汪海波()

安徽理工大学土木建筑学院，安徽淮南 232001

收稿日期:2018-04-14 修回日期:2018-07-10 出版日期:2019-04-30 发布日期:2019-04-30
通讯作者: 汪海波 E-mail:519363133@qq.com;wanghb_aust@163.com
作者简介:吕闹（1990-），男，安徽淮北人，硕士研究生，从事冲击动力学方面的研究工作。519363133@qq.com|汪海波（1983-），男，安徽舒城人，博士（后），副教授，从事爆破工程与冲击动力学方面的教学和研究工作。wanghb_aust@163.com
基金资助:
国家自然科学基金项目“无限岩体深孔超前破裂爆破岩体破碎机理及应用基础研究”（编号：51404010）、安徽省高校自然科学研究重大项目“高应力场岩体爆破破岩机理研究”（编号：KJ2017ZD11）和安徽省科技攻关计划项目“矿山爆破安全与灾害控制技术”(编号：1501041123)

Numerical Simulation of Collapse Disaster Before and After Weakening of Thick and Hard Roof

Nao LV(),Haibo WANG()

School of Civil Engineering and Architecture，Anhui University of Science and Technology，Huainan 232001，Anhui，China

Received:2018-04-14 Revised:2018-07-10 Online:2019-04-30 Published:2019-04-30
Contact: Haibo WANG E-mail:519363133@qq.com;wanghb_aust@163.com

摘要/Abstract

摘要：

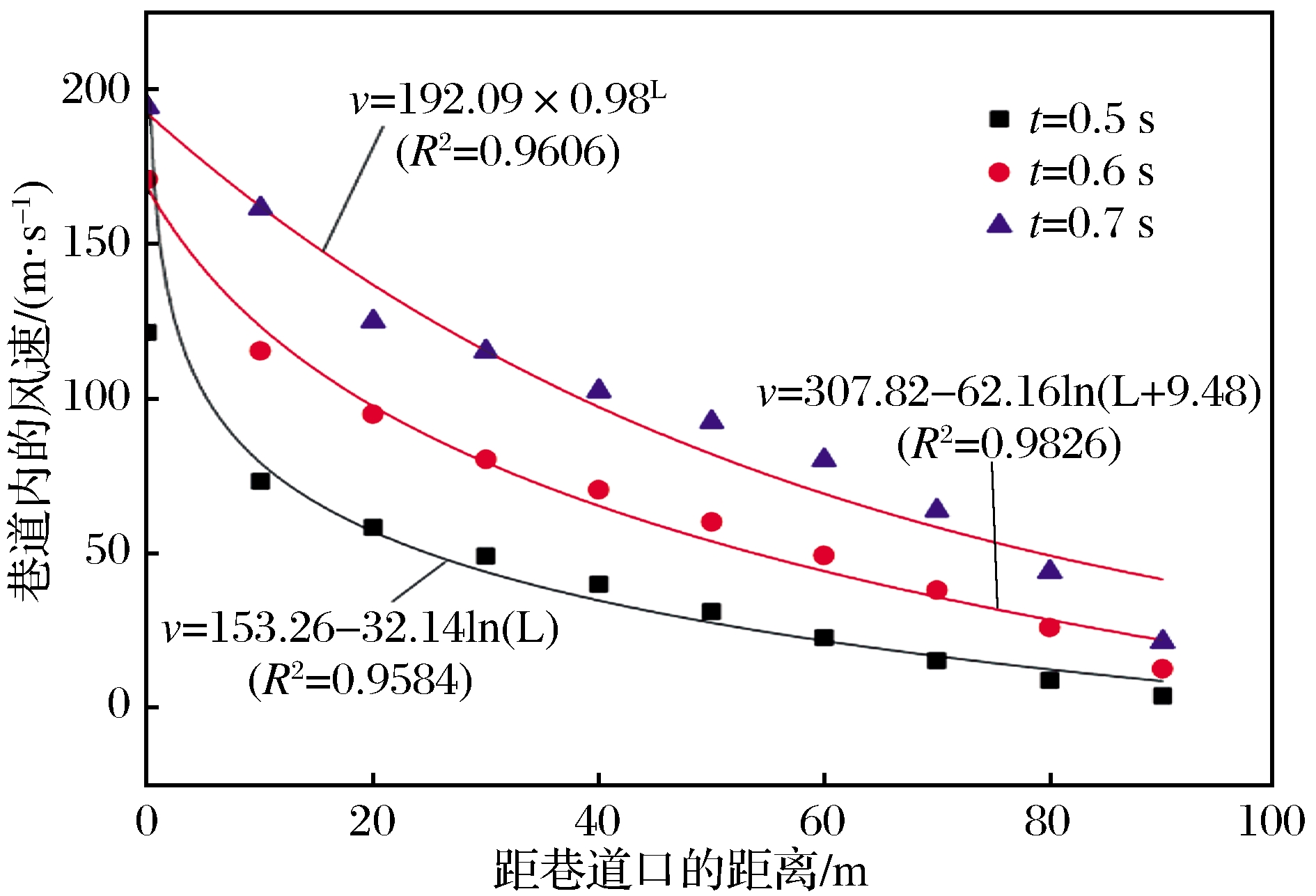

针对采空区大面积顶板垮落对采区机械设备及工作人员造成的冲击灾害问题，采用ANSYS/LS-DYNA有限元软件，建立顶板弱化前后块体冲击地面的三维计算模型，研究顶板弱化前后垮落体引起巷道内飓风风速的变化规律及冲击载荷对工作面煤层的影响。结果表明：在顶板下落过程中，由采空区到巷道口处，飓风速度呈增大趋势，且在巷道口处风速急剧增大，但风速在巷道内随着距巷道口距离的增大而衰减；随着顶板下落时间的增加，巷道内的风速整体呈上升趋势，但巷道内风速的衰减速率逐渐降低，且风速峰值随着所在位置与巷道口距离的增大呈对数衰减；大面积顶板垮落使工作面煤层出现应力集中现象，顶板弱化放顶循环步距控制在30 m以下可显著降低飓风的影响范围及冲击载荷对工作面煤层的影响。

关键词: 顶板垮落, 飓风, 冲击载荷, 风速, 距离, 数值模拟, 厚硬岩层, 采空区

Abstract:

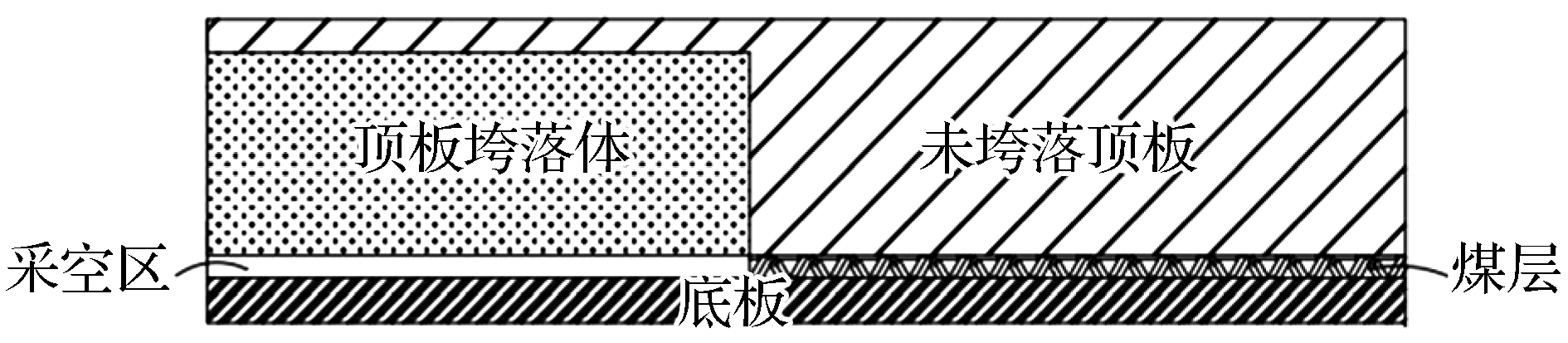

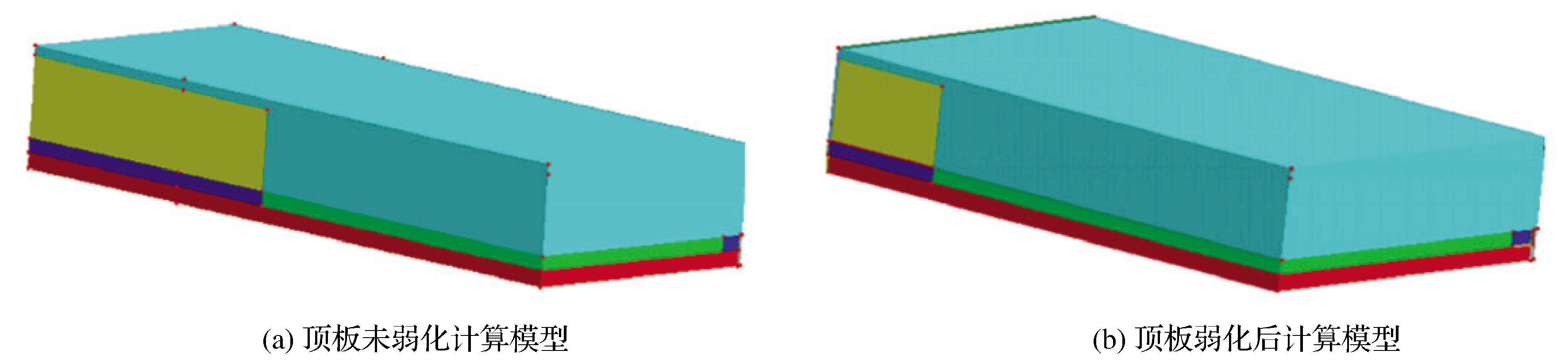

In view of the impact disaster caused by large area roof caving on mechanical equipment and workers in mining area，the related research was conducted relying on 210108 working face of Xinji No.2 Mine.According to the difference of block volume before and after roof weakening.A a three-dimensional calculation model of two kinds of caving bodies with the same height and width，coal seam，goaf and floor is established by using ANSYS/LS-DYNA finite element software.The calculation adopts Euler-Lagrange fluid-solid coupling algorithm.Rock and coal are described by Lagrange mesh and Lagrange element，air is described by ALE mesh and Euler element.The cloud map of hurricane velocity in goaf and roadway ，and the cloud map of effective stress in the bottom of coal seam in typical moment behind roof collapse are obtained by simulation under two kinds of calculation conditions.The variation rule of hurricane wind speed in roadway caused by collapse of different volume before and after roof weakening and the influence of impact load on coal seam in working face are analyzed.The results show that: For two kinds of condition，the attenuation law of hurricane velocity in goaf and roadway is basically the same，but the distribution characteristics of effective stress at the bottom of coal seam are different.From goaf to roadway entrance，hurricane speed tends to increase，and the wind speed increases sharply at roadway entrance，but the wind speed decreases with the increase of the distance between the location and the roadway entrance.With the increase of roof falling time，the wind speed in the roadway rises as a whole，but the attenuation and deceleration decay rate of the wind speed in the roadway decreases gradually，and the peak wind speed decreases logarithmically with the increase of the distance between the location and the roadway entrance.After roof weakening，the length of collapse body decreases，and hurricane wind speed decreases at different times.The maximum wind speed value ofin roadway entrance decreases from 298.62 m/s to 224.89 m/s，which decreases by 25 $%$ ，and the reduction increases gradually with the increase of the distance to roadway entrance，which is 42 $%$ at 90 m.According to the fitting formula of the relationship between peak wind speed and distance，when the maximum allowable wind speed is 6 m/s，the influence range of Hhurricane after roof weakening decreases from 247 m to 158 m，which reduces by 36 $%$ .Large area of roof collapse causes stress concentration in coal seam of working face.After roof weakening，the stress distribution in coal seam of working face is more uniform，and the peak value of maximum effective stress decreases from 10 MPa before weakening to 4.3 MPa，which decreases by 57 $%$ .Controlling the cyclic step distance of roof weakening caving below 30 m can significantly reduce the impact range of hurricane and the impact load on the stability of coal seam in working face.

Key words: roof collapse, hurricane, impact load, wind velocity, distance, numerical simulation thick-hard strata, mine goaf

中图分类号:

TD853

吕闹,汪海波. 厚硬顶板弱化前后垮落致灾数值模拟研究[J]. 黄金科学技术, 2019, 27(2): 257-264.

Nao LV,Haibo WANG. Numerical Simulation of Collapse Disaster Before and After Weakening of Thick and Hard Roof[J]. Gold Science and Technology, 2019, 27(2): 257-264.

图/表 11

图1

图2

表1

表2

图3

图4

图5

图6

图7

表3

图8

参考文献 23

1	姜海军.浅埋煤层短壁开采关键层破断及控制研究[D].北京：中国矿业大学，2016.
	JiangHaijun.Study on the Breaking and Control of Key Strata under Short-Wall Mining in Shallow Seam[D].Beijing：China University of Mining and Technology，2016.
2	KouameK J A,JiangF X,ZhuS T.Research on cause of dynamic disaster of deep mining cintrol in China and its further prevention application in Ivory coast[J].Geotechnical and Geological Engineering,2017,35(3):1141-1149.
3	WangH W,JiangY D,ZhaoY X,et al.Numerical investigation of the dynamic mechanical state of a coal pillar during Longwall mining panel extraction[J].Rcck Mechanics and Rock Engineering,2013,46(5):1211-1221.
4	宋选民，连清旺，邢平伟，等.采空区顶板大面积垮落的空气冲击灾害研究[J].煤炭科学技术，2009,37（4）:1-4.
	SongXuanmin,LianQingwang,XingPingwei,et al.Research on air bumping disaster induced by large roof falling in goaf [J].Coal Science and Technology,2009,37(4):1-4
5	王开，弓培林，张小强，等.复采工作面过冒顶区顶板断裂特征及控制研究[J].岩石力学与工程学报，2016，35（10）：2080-2088.
	WangKai，GongPeilin，ZhangXiaoqiang，et al.Characteristics and control of roof fracture in caving zone for residual coal mining face[J].Chinese Journal of Rock Mechanics and Engineering，2016，35（10）：2080-2088.
6	王晓军，邓书强，李永欣，等.散体介质下水平矿柱顶板失稳控制研究[J].黄金科学技术，2016，24（2）：76-82.
	WangXiaojun，DengShuqiang，LiYongxin，et al.Research on instability control of horizontal pillar roof in granular medium[J].Gold Science and Technology，2016，24（2）：76-82.
7	付玉平，宋选民，邢平伟，等.浅埋厚煤层大采高工作面顶板岩层断裂演化规律的模拟研究[J].煤炭学报，2012，37（3）：366-371.
	FuYuping，SongXuanmin，XingPingwei，et al.Study on simulation of caving and evolution law of roof strata of large mining height workface in shallow thick coal seam[J]. Journal of China Coal Society，2012，37（3）：366-371.
8	刘洪磊，杨天鸿，张博华，等.西部煤层开采覆岩垮落及矿压显现影响因素研究[J].煤炭学报，2017，42（2）：460-469.
	LiuHonglei，YangTianhong，ZhangBohua，et al.Influence factors of overlying coal strata falling and mine pressure behaviors in western coal mines[J].Journal of China Coal Society，2017，42（2）：460-469.
9	姜耀东，杨英明，马振乾，等.大面积巷式采空区覆岩破坏机理及上行开采可行性分析[J].煤炭学报，2016，41（4）：801-807.
	JiangYaodong，YangYingming，MaZhenqian，et al.Breakage mechanism of roof strata above widespread mined-out area with roadway mining method and feasibility analysis of upward mining[J].Journal of China Coal Society，2016，41（4）：801-807.
10	何江，窦林名，巩思园，等.倾斜薄煤层切顶巷预裂顶板防治冲击矿压技术研究[J].煤炭学报，2015，40（6）：1347-1352.
	HeJiang，DouLinming，GongSiyuan，et al.Research on rock burst prevention technology of roof-cutting roadway in inclined thin coal seam[J].Journal of China Coal Society，2015，40（6）：1347-1352.
11	于斌，刘长友，杨敬轩，等.坚硬厚层顶板的破断失稳及其控制研究[J].中国矿业大学学报，2013，42（3）：342-348.
	YuBin，LiuChangyou，YangJingxuan，et al.Research on the fracture instability and its control technique of hard and thick roof[J].Journal of China University of Mining and Technology，2013，42（3）：342-348.
12	郝旭彬，杨立辉，万胜，等.基于AHP及模糊综合评判法的采空区稳定性评价[J].黄金科学技术，2013，21（6）：63-67.
	HaoXubin，YangLihui，WanSheng，et al.Stability evaluation for mine gob areas based on AHP and fuzzy synthetic judgment theory[J].Gold Science and Technology，2013，21（6）：63-67.
13	孙杨，罗黎明，邓红卫.金属矿山深部采场稳定性分析与结构参数优化[J].黄金科学技术，2017，25（1）：99-105.
	SunYang，LuoLiming，DengHongwei.Stability analysis and parameter optimization of stope in deep metal mines[J].Gold Science and Technology，2017，25（1）：99-105.
14	罗铁牛.独立采空区稳定性研究与经验教训[J].黄金科学技术，2003，11（1）：33-37.
	LuoTieniu.The disquisition and experience of the stability of the independent hollow areas[J].Gold Science and Technology，2003，11（1）：33-37.
15	张耀平，曹平，袁海平，等.复杂采空区稳定性数值模拟分析[J].采矿与安全工程学报，2010，27（2）：232-238.
	ZhangYaoping，CaoPing，YuanHaiping，et al.Numerical simulation on stability of complicated goaf[J].Journal of Mining and Safety Engineering，2010，27（2）：232-238.
16	张成良，杨绪祥，李风，等.大型采空区下持续开采空区稳定性研究[J].武汉理工大学学报，2010，32（8）：117-120.
	ZhangChengliang，YangXuxiang，LiFeng，et al.Stability study on mined-out area with continuous mining under the large scale mined-out area[J].Journal of Wuhan University of Technology，2010，32（8）：117-120.
17	吴爱祥，王贻明，胡国斌.采空区顶板大面积冒落的空气冲击波[J].中国矿业大学学报，2007，36（4）：473-477.
	WuAixiang，WangYiming，HuGuobin.Air shock wave induced by roof falling in a large scale in ultra-huge mined-area[J].Journal of China University of Mining and Technology，2007，36（4）：473-477.
18	邢平伟，付玉平，李志军，等.采场顶板飓风耦合模型及采高对飓风灾害的影响[J].中北大学学报，2010，31（3）：227-231.
	XingPingwei，FuYuping，LiZhijun，et al.Coupling model of stope roof with hurricane disaster and the influence analysis of mining height on hurricane velocity[J].Journal of North University of China，2010，31（3）：227-231.
19	顾铁凤，宋选民.封闭采空区顶板垮落—空气冲击耦合模型与差分解法[J].煤炭学报，2008，33（11）：1211-1216.
	GuTiefeng，SongXuanmin.The air impulsion coupling model with roof caving and its difference solution under closed goaf[J].Journal of China Coal Society，2008，33（11）：1211-1216.
20	严国超，息金波，宋选民，等.采场冲击气浪的灾害模拟[J].辽宁工程技术大学学报(自然科学版)，2009，28（2）：177-180.
	YanGuochao，XiJinbo，SongXuanmin，et al.Simulation of lashing blast of compressed air in coal face[J].Journal of Liaoning Technical University（Natural Science），2009，28（2）：177-180.
21	邵晓宁.厚硬砂岩顶板破断规律及深孔超前爆破弱化技术研究[D].合肥：安徽理工大学，2014.
	ShaoXiaoning.Research of Fracture Law and Deep Hole Advance Blasting Technology in Hard and Thick Sandstone Roof[D].Hefei：Anhui University of Science and Technology，2014.
22	马维绪.煤矿通风与安全技术[M].北京：煤炭工业出版社，2007.
	MaWeixu.Ventilation and Safety Techniques in Coal Mines[M].Beijing：China Coal Industry Publishing House Press，2007.
23	中华人民共和国国家安全生产监督管理总局.煤矿安全规程[S].北京：煤炭工业出版社，2016.
	State Administration of Work Safety of the People’s Republic of China.Mine safety standards[S].Beijing：China Coal Industry Publishing House Press，2016.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

岩石	密度/（kg·m^-3）	抗拉强度/MPa	抗压强度/MPa	弹性模量/GPa	泊松比
顶板	2695	2.64	92.3	35.5	0.24
底板	2517	2.75	30	28.7	0.226

材料	密度/（kg·m^-3）	杨氏模量/GPa	泊松比	屈服强度/MPa	C₀	C₁	C₂	C₃	C₄	C₅	C₆	μ
煤体	1 270	5.08	0.28	10	-	-	-	-	-	-	-	-
空气	1.18	-	-	-	0	0	0	0	0.4	0.4	0	1.745×10^-5

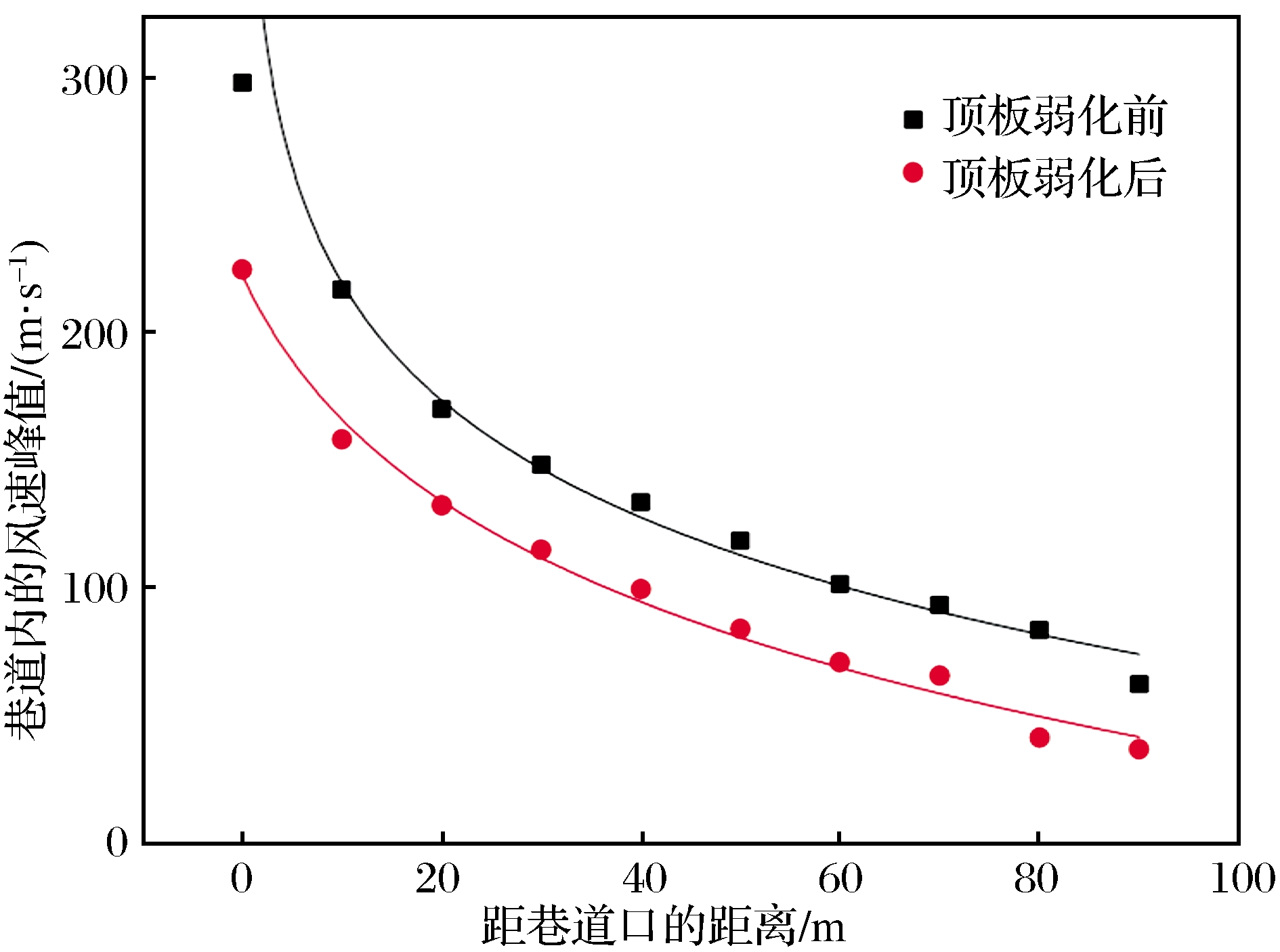

至巷道口距离/m	未弱化风速峰值/（m·s^-1）	弱化后风速峰值/（m·s^-1）
0	298.62	224.89
10	216.98	157.82
20	169.92	131.90
30	147.89	114.44
40	133.09	98.93
50	117.98	83.24
60	100.86	70.01
70	92.69	64.76
80	82.73	40.30
90	61.38	35.81
