粉煤灰改良铁尾矿膏体充填材料试验研究

doi:10.11872/j.issn.1005-2518.2022.05.057

摘要/Abstract

摘要：

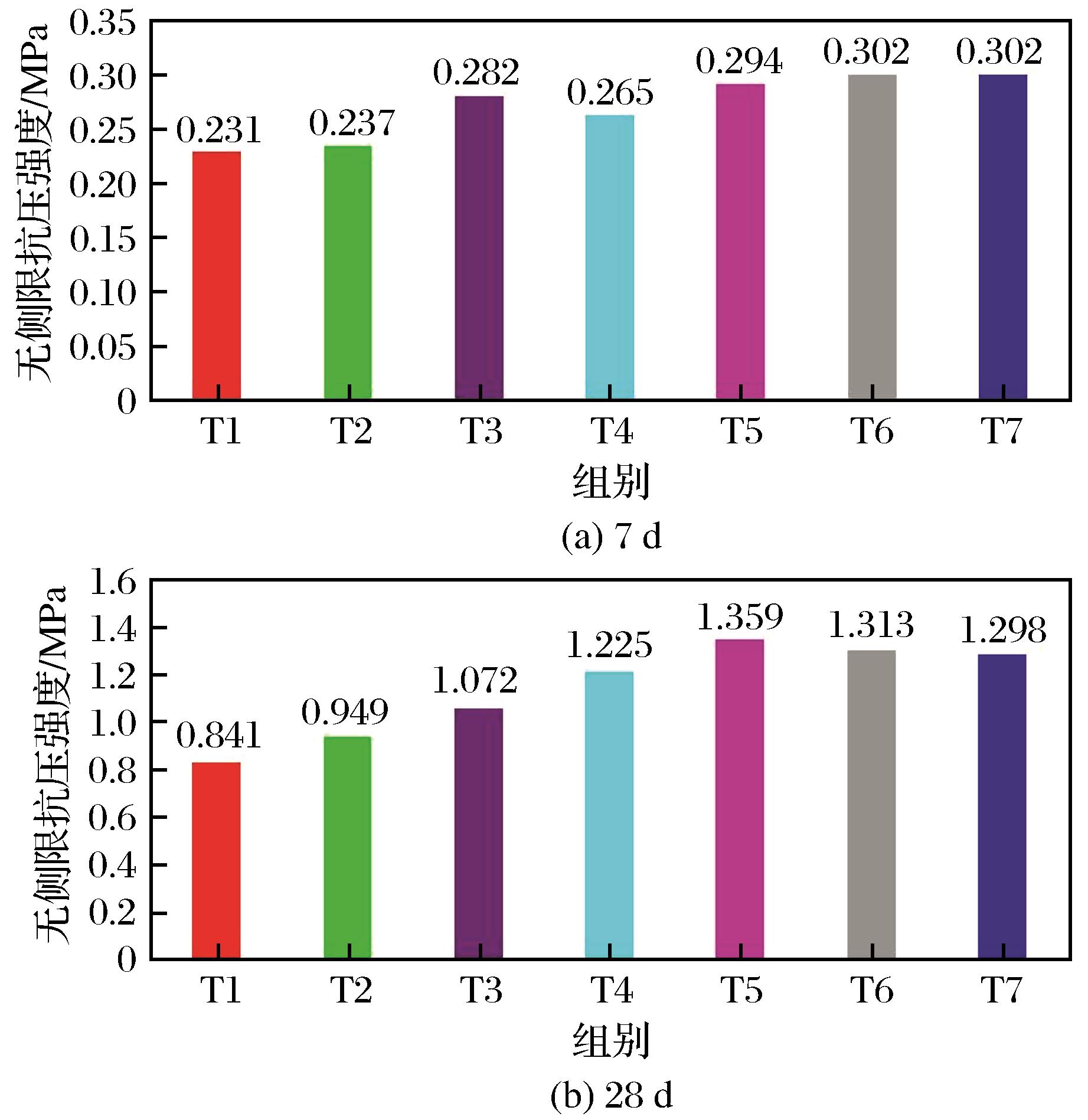

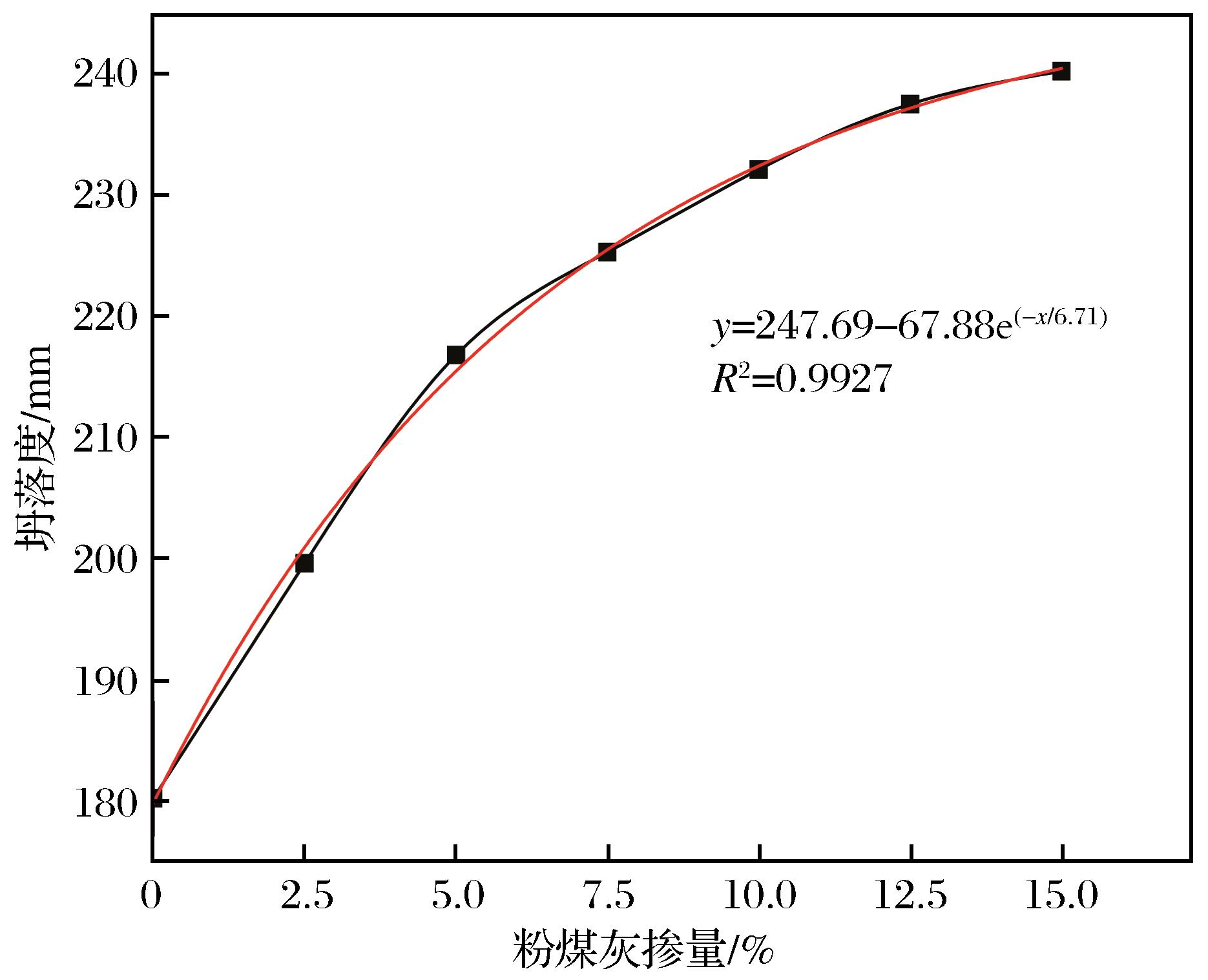

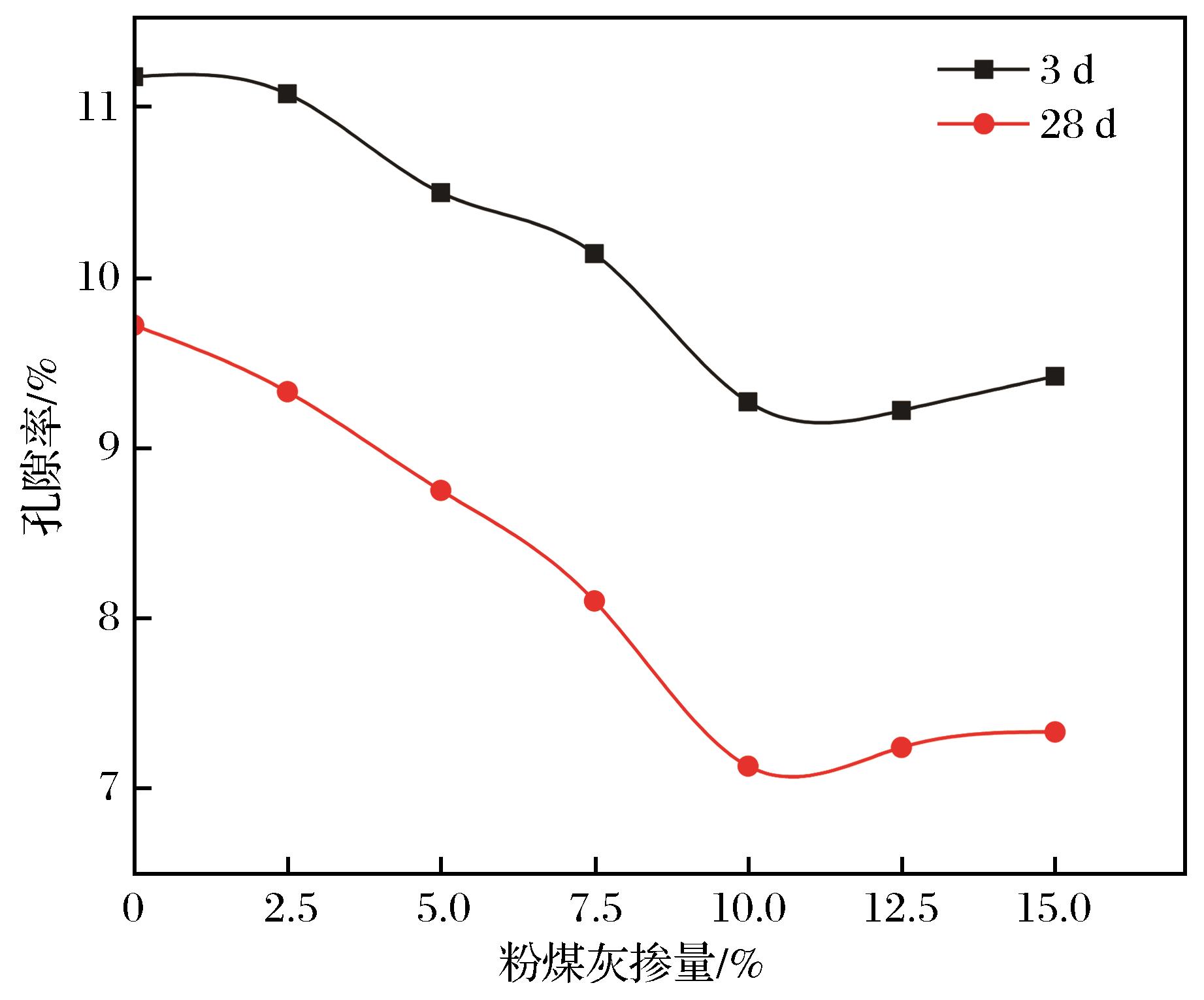

铁尾矿大量堆存不仅造成环境污染而且存在地质灾害风险，将其用作膏体充填材料骨料，能够解决尾矿危害并保证矿山地下采场的安全稳定。通过开展相关试验，研究了本溪歪头山铁尾矿基本性质，发现其比重大、细颗粒含量少且级配不良，不适合单独作为膏体充填材料骨料。通过试验研究粉煤灰基本性质，选择将其作为掺合料，掺量由0开始以2.5%的梯度升高至15%，通过坍落度试验确定料浆质量浓度为72%，混合各材料制备膏体充填材料。试验研究了不同粉煤灰掺量下充填材料的坍落度、抗压强度、孔隙率和吸水率的变化。结果表明：随着粉煤灰掺量的增加，料浆坍落度由180.2 mm增加至240.2 mm，试件孔隙率先减小后略微上升，吸水率提升，28 d无侧限抗压强度达1.359 MPa。研究表明掺入粉煤灰可以提升膏体充填材料流动性和强度，但粉煤灰掺入量以不多于固体质量的12.5%为宜，该研究成果可为其他金属矿山改良充填结构提供理论支持。

关键词: 铁尾矿, 全尾砂, 膏体充填, 粉煤灰, 性能改良

Abstract:

The large storage of iron tailings not only causes environment pollution，but also has the risk of geological disasters.It can be used as paste filling material aggregate，which can solve the harm of tailings and ensure the safety and stability of underground stope.The Waitoushan iron mine adopts filling method.The filling material is composed of iron tailings，cement and water and the filling slurry has a mass concentration of 68%，which belongs to cemented filling with low-concentration whole tailings.Due to the low mass concentration of filling slurry， the whole tailings of iron tailings are coarse.Fine particles such as cement in the slurry are easily lost，which are not only waste cementing materials and affect the strength of the filling body，but also seriously pollute the underground environment.The filling material composition is fixed，and other admixtures and additives are not added，so the filling structure of the mine is single.Aiming at the problems of waste of filling materials and single filling structure in Waitoushan iron mine，the basic properties of Waitoushan iron tailings were studied by relevant tests.The test shows that the iron tailings have a large proportion，a small content of fine particles and poor gradation，so it is not suitable as paste aggregate alone.The fly ash was selected as admixture to supplement the fine particles in the iron tailings.The content of fly ash increased from 0 to 15% in a gradient of 2.5%，and the mass concentration of slurry was 72%，the paste filling material was prepared by mixing all materials.The slump，compressive strength，porosity and water absorption of filling materials with different fly ash content were tested.The results show that with the increase of fly ash content，the slump of slurry increases from 180.2 mm to 240.2 mm，the porosity decreases first and then slightly increases，and the water absorption rate increases.The unconfin compressive strength of filling material specimen could reach 1.359 MPa in 28 days.The results show that the fluidity and unconfined compressive strength of paste filling materials can be improved by adding fly ash，but the amount of fly ash should be no more than 12.5% of the solid mass.The results provide theoretical support for other metal mines to improve the filling structure.

Key words: iron tailings, full tailings, paste filling, fly ash, performance improvement

中图分类号:

X753

海龙,程同俊,徐博,赵鑫. 粉煤灰改良铁尾矿膏体充填材料试验研究[J]. 黄金科学技术, 2022, 30(5): 724-732.

Long HAI,Tongjun CHENG,Bo XU,Xin ZHAO. Experimental Study on the Paste Filling Material of Iron Tailings Improved by Fly Ash[J]. Gold Science and Technology, 2022, 30(5): 724-732.

图/表 11

表1

表2

图1

图2

表3

图3

图4

图5

图6

图7

图8

参考文献 0

	Chan D， Sun P C，2006.Effects of fine recycled aggregate as sand replacement in concrete［J］.Transaction of the Hongkong Institute of Engineers，13（4）：2-7.
	Das B B， Kondraivendhan B，2011.Implication of pore size distribution parameters on compressive strength，permeability and hydraulic diffusivity of concrete［J］.Construction and Building Materials，28（1）：382-386.
	Fall M， Pokharel M，2010.Coupled effects of sulphate and temperature on the strength development of cemented tailings backfills：Portland cement-paste backfill［J］.Cement and Concrete Composites，32（10）：819-828.
	Huang Xiaoyan， Ni Wen， Zhu Liping，et al，2010.Grinding characteristic of Qidashan iron tailings［J］.Chinese Journal of Engineering，32（10）：1253-1257.DOI：10.13374/j.issn 1001-053x.2010.10.003 . doi: 10.13374/j.issn 1001-053x.2010.10.003
	Ke Xing，2016.Study on Structure and Properties of the Consolidation Mass of Cemented Tailings Backfill［D］.Wuhan：Wuhan University.
	Liu Lang， Fang Zhiyu， Zhang Bo，et al，2021.Development history and basic categories of mine backfill technology［J］.Metal Mine，50（3）：1-10.DOI：10.19614/j.cnki.jsks.202103001 . doi: 10.19614/j.cnki.jsks.202103001
	Meng Fanjing， Liu Huabo， Hua Shaozhen，2021.Mechanical mechanism of influence of inter-granular friction on granular lubrication［J］.Engineering Mechanics，38（4）：221-229，246.
	Meng W N， Khayat K H，2016.Mechanical properties of ultra-high-performance concrete enhanced with graphite nanoplatelets and carbon nanofibers［J］.Composites Part B：Engineering，107：113-122.
	Ministry of Housing and Urban-Rural Development of the People’s Republic of China，2019. Standard of geotechnical test method：［S］.Beijing：China Planning Press.
	Ministry of Housing and Urban-Rural Development of the People’s Republic of China，State Administration of Market Supervision，2019. Standard for test methods of physical and mechanical properties of concrete：［S］.Beijing：China Building Industry Press.
	Mohd Zain M F， Radin S S，2000.Physical properties of high-performance concrete with admixtures to a medium temperature range 20 ℃ to 50 ℃［J］.Cement and Concrete Research，30（8）：1283-1287.
	Paiva H， Silva A S， Velosa A，et al，2017.Microstructure and hardened state properties on pozzolan-containing concrete［J］.Construction and Building Materials，140：374-384.
	Pokharel M， Fall M，2013.Combined influence of sulphate and temperature on the saturated hydraulic conductivity of hardened cemented paste backfill［J］.Cement and Concrete Composites，38：21-28.
	Scrivener K L， Crumbie A K， Laugesen P，2004.The interfacial transition zone （ITZ） between cement paste and aggregate in concrete［J］.Interface Science，12（4）：411-421.
	State Administration of Market Supervision，State Administration for Standardization，2020. Technical specification for full tailings paste filling：［S］.Beijing：China Standard Press.
	Wang Qihu， Zhang Guangquan， Ye Yicheng，et al，2019.Study on stress coordination of composite support body in stope filled alternately with waste rock and tailings［J］.China Safety Science Journal，29（4）：96-103.
	Wang X P， Yu R， Shui Z H，et al，2017.Mix design and characteristics evaluation of an eco-friendly ultra-high performance concrete incorporating recycled coral based materials［J］.Journal of Cleaner Production，165：70-80.
	Wang Zheng，2020.Study on Corrosive Characteristics and Zoning Evaluation of Concrete Under Water/Soil Environment in Shanxi Province［D］.Taiyuan：Taiyuan University of Technology.DOI：10.27352/d.cnki.gylgu.2020.000866 . doi: 10.27352/d.cnki.gylgu.2020.000866
	Yi Longsheng， Mi Hongcheng， Wu Qian，et al，2020.Present situation of comprehensive utilization of tailings resources in China［J］.Conservation and Utilization of Mineral Resources，40（3）：79-84.DOI：10.13779/j.cnki.issn1001-0076.2020.03.013 . doi: 10.13779/j.cnki.issn1001-0076.2020.03.013
	Yu L， Zhang J X， Mu K，2012.Relationships between compressive strength and microstructure in mortars with iron ore tailings as fine aggregate［J］.Applied Mechanics and Materials，188：211-218.
	Zeng Yayuqiong， Pan Jianping， Yang Xiuying，et al，2018.Application of iron tailings in road base materials［J］.Applied Chemical Industry，47（2）：358-364.DOI：10.16581/j.cnki.issn1671-3206.20171204.047 . doi: 10.16581/j.cnki.issn1671-3206.20171204.047
	Zhang Lihua，2010.Discussion on the controlling method for backfilling cement-sand ratio［J］.China Mine Engineering，39（5）：20-22，29.
	国家市场监督管理总局，国家标准化管理委员会，2020. 全尾砂膏体充填技术规范：［S］.北京：中国标准出版社.
	黄晓燕，倪文，祝丽萍，等，2010.齐大山铁尾矿粉磨特性［J］.北京科技大学学报，32（10）：1253-1257.DOI：10.13374/j.issn1001-053x.2010.10.003 . doi: 10.13374/j.issn1001-053x.2010.10.003
	柯兴，2016.尾砂胶结充填固结体结构与性能研究［D］.武汉：武汉大学.
	刘浪，方治余，张波，等，2021.矿山充填技术的演进历程与基本类别［J］.金属矿山，50（3）：1-10.DOI：10.19614/j.cnki.jsks.202103001 . doi: 10.19614/j.cnki.jsks.202103001
	孟凡净，刘华博，花少震，2021.颗粒间摩擦对颗粒流润滑影响的力学机制［J］.工程力学，38（4）：221-229，246.
	王其虎，张光权，叶义成，等，2019.废石尾砂交替充填采场复合支撑体应力协调研究［J］.中国安全科学学报，29（4）：96-103.
	王铮，2020.山西省水土环境对混凝土的腐蚀分区评价及其腐蚀特性研究［D］.太原：太原理工大学.DOI：10.27352/d.cnki.gylgu.2020.000866 . doi: 10.27352/d.cnki.gylgu.2020.000866
	易龙生，米宏成，吴倩，等，2020.中国尾矿资源综合利用现状［J］.矿产保护与利用，40（3）：79-84.DOI：10.13779/j.cnki.issn1001-0076.2020.03.013 . doi: 10.13779/j.cnki.issn1001-0076.2020.03.013
	曾雅钰琼，潘建平，杨秀英，等，2018.铁尾矿在道路基层材料中的应用研究进展［J］.应用化工，47（2）：358-364.DOI：10.16581/j.cnki.issn1671-3206.20171204.047 . doi: 10.16581/j.cnki.issn1671-3206.20171204.047
	张利华，2010.充填料灰砂比控制方法探讨［J］.中国矿山工程，39（5）：20-22，29.
	中华人民共和国住房和城乡建设部，2019. 土工试验方法标准：［S］.北京：中国计划出版社.
	中华人民共和国住房和城乡建设部，国家市场监督管理总局，2019. 混凝土物理力学性能试验方法标准：［S］.北京：中国建筑工业出版社.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

参数名称	数值	参数名称	数值
初凝时间/min	210	体积安定性	合格
终凝时间/min	300	标准稠度用水量/%	28.5
3 d抗折强度/MPa	3.6	w（SO₃）/%	≤3.5
3 d抗压强度/MPa	15.6	w（MgO）/%	≤6.0
28 d抗折强度/MPa	7.7	w（Cl^-）/%	≤0.10
28 d抗压强度/MPa	33.9

化学成分	铁尾矿	粉煤灰
SiO₂	73.93	49.35
Al₂O₃	2.38	28.58
Fe₂O₃	14.18	8.66
CaO	3.85	5.37
MgO	3.49	1.27
SO₃	0.14	-

组别	坍落度/mm	无侧限抗压强度/MPa				孔隙率/%		吸水率/%
组别	坍落度/mm	3 d	7 d	14 d	28 d	3 d	28 d	吸水率/%
T₁	180.2	0.149	0.231	0.455	0.841	11.17	9.71	17.32
T₂	199.6	0.174	0.237	0.440	0.949	11.07	9.32	19.12
T₃	216.8	0.156	0.282	0.464	1.072	10.49	8.74	19.72
T₄	225.3	0.184	0.265	0.498	1.225	10.13	8.09	21.49
T₅	232.1	0.199	0.294	0.551	1.359	9.26	7.12	23.89
T₆	237.5	0.205	0.302	0.532	1.313	9.21	7.23	27.12
T₇	240.2	0.201	0.302	0.519	1.298	9.41	7.32	31.43
