黄金科学技术 ›› 2021, Vol. 29 ›› Issue (5): 637-646.doi: 10.11872/j.issn.1005-2518.2021.05.032

• 矿产勘查与资源评价 • 上一篇    下一篇

EH4音频大地电磁方法在辽东五龙金矿控矿构造及成矿预测研究中的应用

俞炳1,2,3(),邱海成4,于昌明1,2(),曾庆栋1,2,3,杜琴1,2,叶杰1,2,李建平4,陈海涛4

  1. 1.中国科学院地质与地球物理研究所,矿产资源研究重点实验室,北京 100029
    2.中国科学院地球科学研究院,北京 100029
    3.中国科学院大学地球与行星科学学院,北京 100049
    4.辽宁五龙黄金矿业有限责任公司,辽宁 丹东 118012
  • 收稿日期:2021-02-23 修回日期:2021-07-26 出版日期:2021-10-31 发布日期:2021-12-17
  • 通讯作者: 于昌明 E-mail:yubing15@mails.ucas.ac.cn;ycm@mail.iggcas.ac.cn
  • 作者简介:俞炳(1993-),男,浙江嵊州人,博士研究生,从事矿床学研究工作。yubing15@mails.ucas.ac.cn
  • 基金资助:
    国家重点研发计划重点专项“深地资源勘查开采”(2016YFC0600108-06)

Application of EH4 Magnetotelluric Method in Ore-controlling Structure and Metallogenic Prediction of the Wulong Gold Deposit in Liaodong Peninsula

Bing YU1,2,3(),Haicheng QIU4,Changming YU1,2(),Qingdong ZENG1,2,3,Qin DU1,2,Jie YE1,2,Jian-ping LI4,Haitao CHEN4

  1. 1.Key Laboratory of Mineral Resources,Institute of Geology and Geophysics,Chinese Academy of Sciences,Beijing 100029,China
    2.Innovation Academy for Earth Science,Chinese Academy of Sciences,Beijing 100029,China
    3.College of Earth and Planetary Sciences,University of Chinese Academy of Sciences,Beijing 100049,China
    4.Liaoning Wulong Gold Mining Co. ,Ltd. ,Dandong 118012,Liaoning,China
  • Received:2021-02-23 Revised:2021-07-26 Online:2021-10-31 Published:2021-12-17
  • Contact: Changming YU E-mail:yubing15@mails.ucas.ac.cn;ycm@mail.iggcas.ac.cn

摘要:

五龙金矿是辽东金矿集区最大的石英脉型金矿床,已累计探明金资源量大于80 t,作为一个开采多年的老矿山,当前面临着矿山资源储量严重不足的问题,亟需寻找深部隐伏资源。通过应用EH4音频大地电磁方法,在五龙金矿的东西两侧分别布设了100线、1000线和1050线3条EH4测量线,采用标量TM模式对原始测量数据进行收集并复核,经计算机处理后绘制出EH4二维反演剖面图。在EH4二维反演剖面图上成功识别出了分别位于矿区东西两侧的100#断裂和鸡心沟断裂,其垂向延深均超过1 000 m。经过地质观察和坑道钻孔工程揭露,断裂带地表和浅部均存在着明显的金矿化,表明这些断裂在五龙金矿成矿过程中起着重要作用。将EH4音频大地电磁方法应用于五龙金矿控矿构造及成矿预测研究中,取得了良好的效果,矿区东、西部和深部均具有良好的找矿潜力,为矿区下一步地质找矿指明了方向。

关键词: EH4音频大地电磁方法, 控矿构造, 成矿预测, 石英脉型金矿床, 深部隐伏资源, 五龙金矿, 辽东金矿集区

Abstract:

Wulong gold deposit is the largest quartz vein type gold deposit in the Liaodong gold district.The accumulated proven gold resources are more than 80 tons with an average grade of 5.35×10-6.The fault structure is well developed and magmatic activity is widespread in the Wulong gold deposit,thus it has good metallogenic potential.Wulong gold deposit has been mined for many years,the gold reserve is reducing steadily,so it is urgent to find deep concealed gold resources.The physical properties of different rocks have been tested and analyzed in Wulong mining area,which show that their resistivities are significantly different,and they have the geophysical prerequisites for prospecting and exploration.EH4 magnetotelluric method is one of the advanced techniques in geophysical exploration system,especially in ore-control structure and metallogenic prediction.In this study,the EH4 magnetotelluric method was used,and sounding data acquisition and two-dimensional inversion calculations were carried out on the east and west sides of Wulong gold deposit.Three EH4 measuring lines of No.100,No.1000,and No.1050 were laid out on the east and west sides of the Wulong gold deposit.The lengths of these EH4 measuring lines are 1 000 m,800 m,and 800 m,respectively.Specifically,the line of No.100 on the east side is mainly used to detect the NNE-trending 100# fault,while the lines of No.1000 and No.1050 on the west side are mainly used to detect the NNE-trending Jixingou fault.The scalar TM mode was adopted in the EH4 test work in Wulong gold deposit.On the basis of the above work,we first check the original measurement data,then perform computer processing,and finally draw the EH4 2D inversion profile.The EH4 two-dimensional inversion profile has effectively identified the 100# fault and Jixingou fault on the east and west sides of the Wulong gold deposit with vertical extensions exceeding 1 000 m.In addition,field geological observations and tunnel or drilling projects showed that there is obvious gold mineralization on the surface and shallow parts of these fault zones,which indicated that these fault structures (100# fault and Jixingou fault) play an important role in the Wulong gold mineralization.The results of this study show that the EH4 magnetotelluric method is effective in the study of ore-controlling structure and metallogenic prediction in the Wulong gold deposit.The eastern,western and deep areas of the Wulong gold deposit have quite good prospecting potential,which points out the direction for the further prospecting.

Key words: EH4 magnetotelluric method, ore-controlling structure, metallogenic prediction, quartz vein type gold deposit, deep concealed resources, Wulong gold deposit, Liaodong gold district

中图分类号:

  • P618.51

图1

五龙金矿区区域地质图(据俞炳等,2020修改)1.第四系;2.上侏罗统小东沟组;3.下震旦统钓鱼台组;4.古元古界辽河群;5.白垩纪斑状花岗岩;6.白垩纪花岗闪长岩;7.侏罗纪片麻状二云母花岗岩;8.主要断裂;9.金矿床(点);10.水库/河流;11.国界"

图2

五龙金矿床地质图(据俞炳等,2020修改)1.第四系;2.片麻状二云母花岗岩;3.花岗斑岩;4.细粒闪长岩;5.煌斑岩;6.辉绿岩;7.断裂;8.矿体及编号;9.EH4测量线及编号"

图3

五龙金矿矿石反射光显微照片和热液蚀变特征(a)黄铁矿和白钨矿赋存在早期的石英±黄铁矿脉中;(b)黄铜矿和方铅矿赋存于中期的石英—多金属硫化物脉中;(c)~(d)金以包体金的形式赋存在石英中;(e)围岩强硅化热液蚀变;(f)围岩硅化和绢云母化热液蚀变;Au-自然金;Ccp-黄铜矿;Gn-方铅矿;Po-磁黄铁矿;Py-黄铁矿;Qtz-石英;Sh-白钨矿"

表1

五龙金矿区岩石电性特征统计(杜琴等,2018)"

岩性电阻率/(Ω·m)样品数/块
片麻状二云母花岗岩4 471~14 9556
细粒闪长岩3 100~11 0906
花岗斑岩4 500~13 0006
白色石英脉1 000~100 0007
含矿石英脉165~2 5058

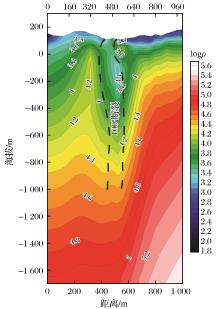

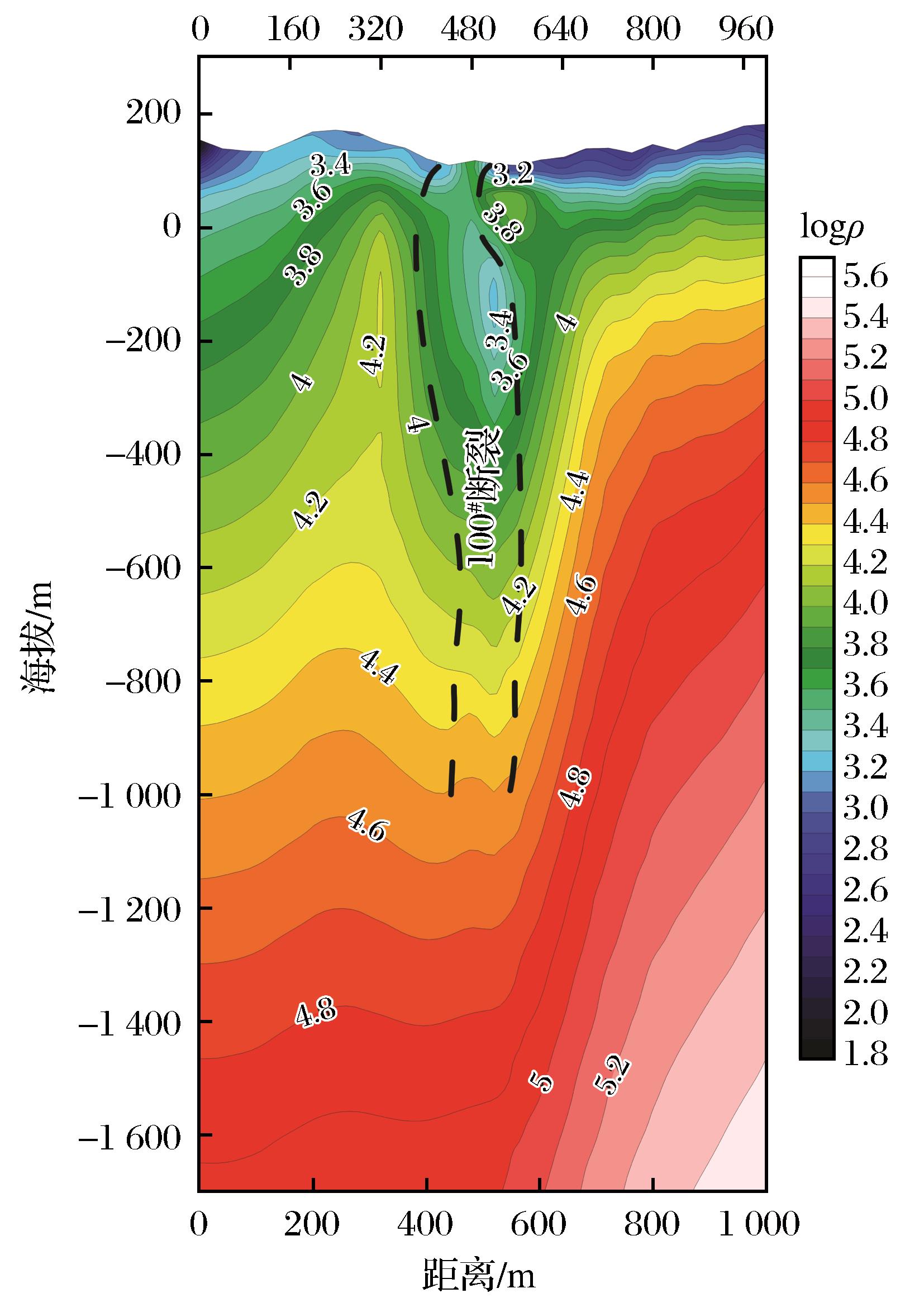

图4

五龙金矿100线EH4二维反演剖面图"

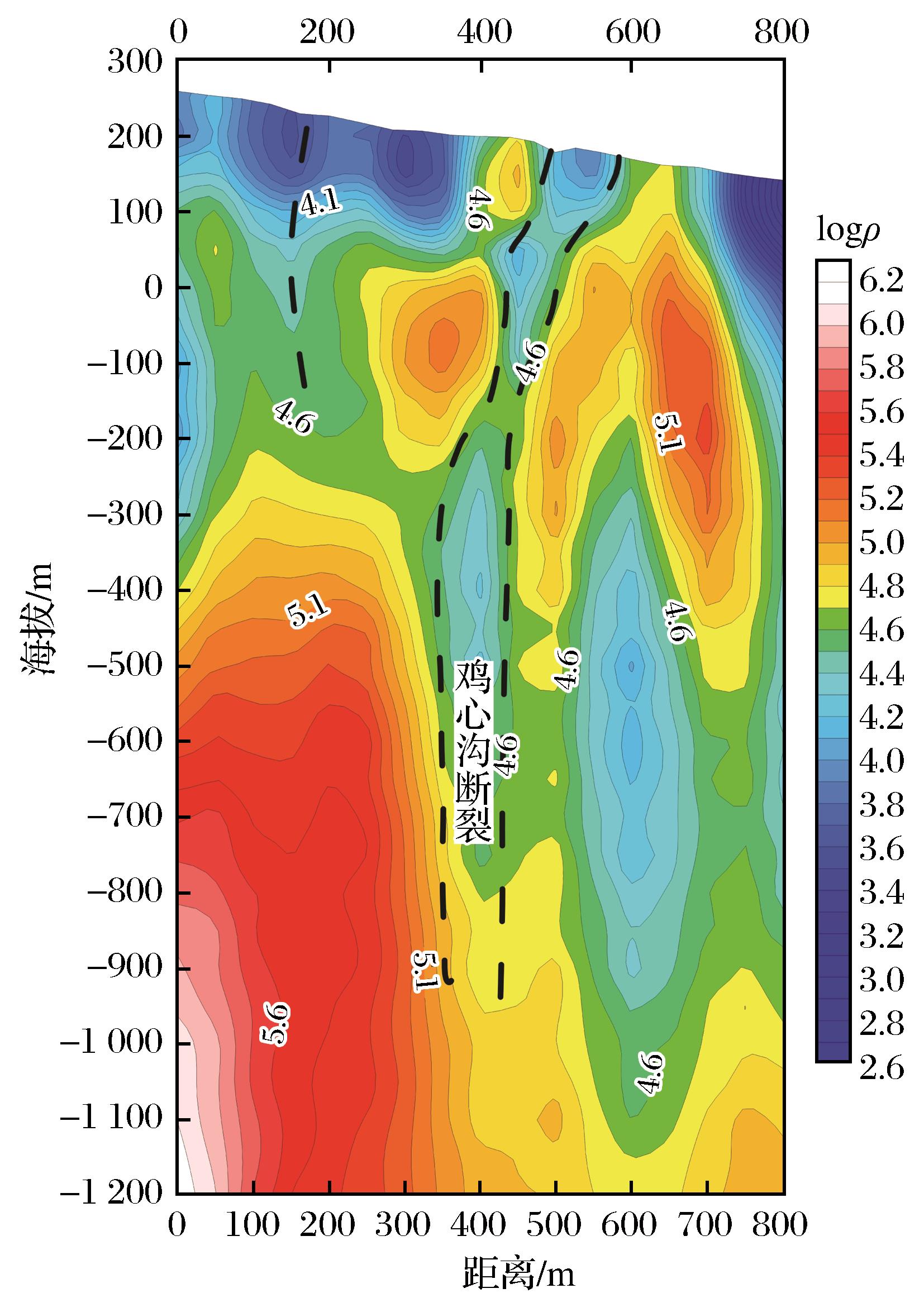

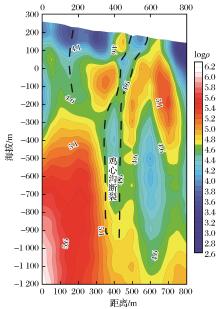

图5

五龙金矿1000线EH4二维反演剖面图"

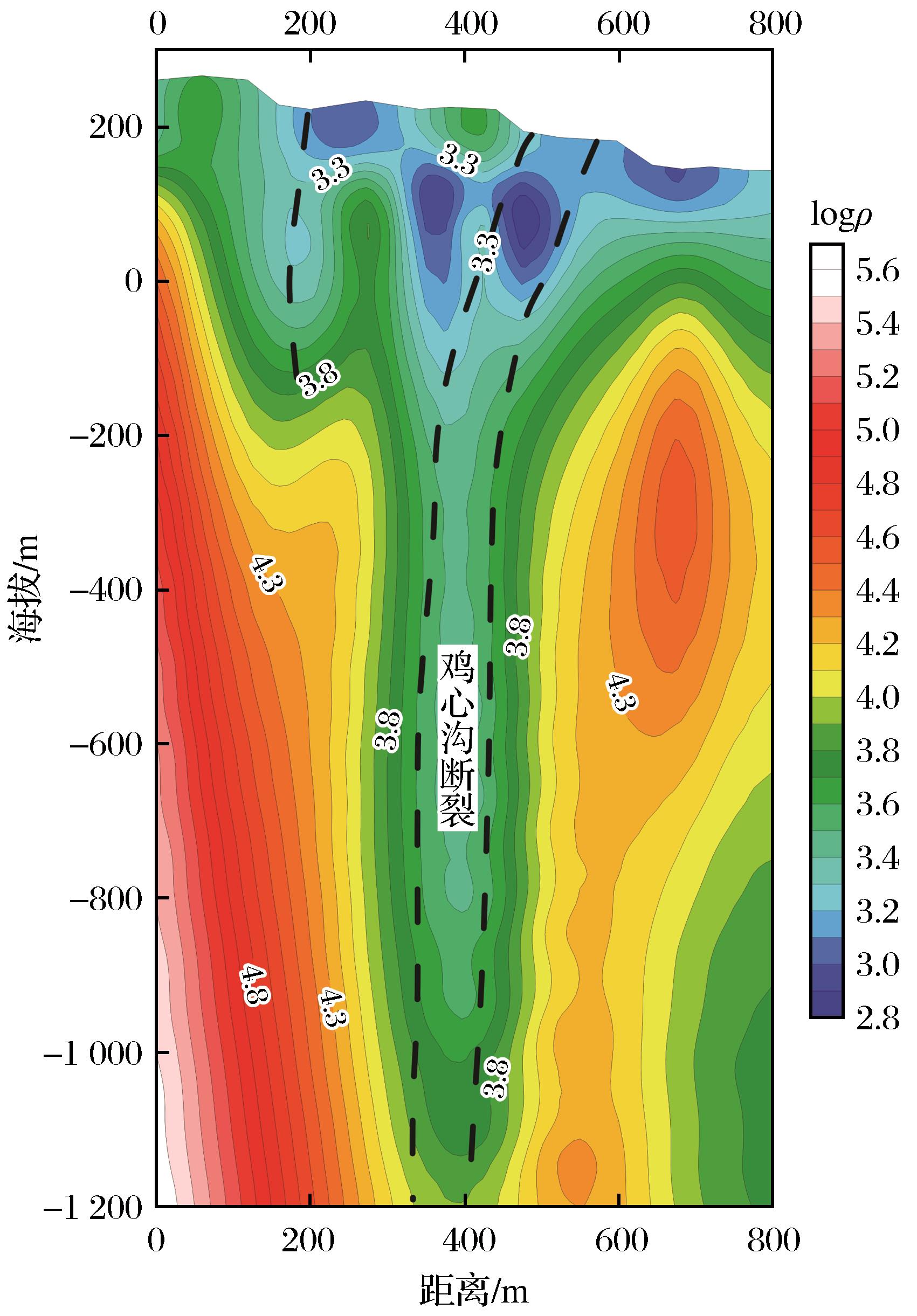

图6

五龙金矿1050线EH4二维反演剖面图"

图7

五龙金矿1000线和1050线EH4综合推断解释图"

Du Qin,Xing Baoshan,Ye Jie,al et,2018.Application of the continuous conductivity observation system to prediction of deep prospecting prediction in the Wulong gold deposit[J].Geology and Exploration,54(2):332-343.
Gu Y C,Chen R Y,Li D T,al et,2018.Jurassic ca.160 Ma crustal remelting and Paleoproterozoic intrusive rock residues in the Liaodong Peninsula,East China:Evidence from in situ zircon U-Pb dating and Lu-Hf isotopic analysis[J].Geological Journal,53(Supp.2):174-188.
Huang Zhenhao,Li Zhaoyi,Shi Yuchun,al et,2015.The instruction function and analysis of mineralization potential for deep prospecting in Luowei ore mine from results of geophysical prospecting[J].Gold Science and Technology,23(1):53-60.
Liu J M,Zhao G C,Xu G,al et,2020.Structural control and genesis of gold deposits in the Liaodong Peninsula,northeastern North China Craton[J].Ore Geology Reviews,125:103672.
Liu J,Zhang L J,Wang S L,al et,2019.Formation of the Wulong gold deposit,Liaodong gold province,NE China:Constraints from zircon U-Pb age,sericite Ar-Ar age,and H-O-S-He isotopes[J].Ore Geology Reviews,109:130-143.
Shen Ping,Shen Yuanchao,Liu Tiebing,al et,2007.Application of stratagem EH4 system to prediction of hidden ore bodies[J].Mineral Deposits,26(1):70-78.
Shen Yuanchao,Shen Ping,Liu Tiebing,al et,2008.Prediction of hidden gold orebodies in depleted mines by the stratagem EH4 system[J].Progress in Geophysics,23(1):559-567.
Wang Y B,Yu B,Zeng Q D,al et,2019.Petrogenesis and tectonic setting of the Wulong two-mica monzogranite on Liaodong Peninsula,NE China:Constraints from zircon U-Pb and Hf-O isotopic data[J].Geochemical Journal,53(4):261-279.
Wang Y Z,Wang F,Wu L,al et,2018.(U-Th)/He thermochronology of metallic ore deposits in the Liaodong Peninsula:Implications for ore field evolution in northeast China[J].Ore Geology Reviews,92:348-365.
Wang Zhiqiang,Zhifan Huhua,Chen Bin,al et,2020.The petrogenesis of the Early Cretaceous Sanguliu pluton in the Liao-dong Peninsula,NE China:Constrained from the trace-element modelling and Sr-Nd isotopes[J].Acta Petrologica Sinica,36(12):3683-3704.
Wei J H,Liu C Q,Tang H F,2003.Rb-Sr and U-Pb isotopic systematics of pyrite and granite in Liaodong gold province,North China:Implication for the age and genesis of a gold deposit[J].Geochemical Journal,37(5):567-577.
Wu F Y,Lin J Q,Wilde S A,al et,2005a.Nature and significance of the Early Cretaceous giant igneous event in Eastern China[J].Earth and Planetary Science Letters,233(1/2):103-119.
Wu F Y,Yang J H,Wilde S A,al et,2005b.Geochronology,petrogenesis and tectonic implications of Jurassic granites in the Liaodong Peninsula,NE China[J].Chemical Geology,221(1/2):127-156.
Xiao Shiye,Zhu Guang,Zhang Shuai,al et,2018.Structural processes and dike emplacement mechanism in the Wulong gold field,eastern Liaoning[J].Chinese Science Bulletin,63(Supp.2):3022-3036.
Yang Fengchao,Song Yunhong,Yang Jialin,al et,2018.SHRIMP U-Pb age and geochemical characteristics of granites in Wulong-Sidaogou gold deposit,East Liaoning[J].Geotectonica et Metallogenia,42(5):940-954.
Yang Jinhui,Wu Fuyuan,Luo Qinghua,al et,2004.Deformation age of Jurassic granites in the Dandong area,eastern China:40Ar/39Ar geochronological constraints[J].Acta Petrologica Sinica,20(5):1205-1214.
Yao Xiaofeng,Yan Tingjie,Lin Chenggui,al et,2021.New sight for gold forming system in Wulong deposit:Indicated by the distal Pb-Zn mineralization in hydrothermal breccia[J].Acta Petrologica Sinica,37(6):1883-1900.
Yu B,Zeng Q D,Frimmel H E,al et,2018.Genesis of the Wu-long gold deposit,northeastern North China Craton:Constraints from fluid inclusions,H-O-S-Pb isotopes,and pyrite trace element concentrations[J].Ore Geology Revie-ws,102:313-337.
Yu B,Zeng Q D,Frimmel H E,al et,2020.The 127 Ma gold mineralization in the Wulong deposit,Liaodong Peninsula,China:Constraints from molybdenite Re-Os,monazite U-Th-Pb,and zircon U-Pb geochronology[J].Ore Geology Reviews,121:103542.
Yu Bing,Zeng Qingdong,Xia Fan,al et,2020.Structural superimposed halo of the Wulong gold deposit in Liaoning Province[J].Geology and Exploration,56(5):898-914.
Zeng Qingdong,Chen Renyi,Yang Jinhui,al et,2019.The metallogenic characteristics and exploring ore potential of the gold deposits in eastern Liaoning Province[J].Acta Petrologica Sinica,35(7):1939-1963.
Zeng Qingdong,Shen Yuanchao,Liu Tiebing,al et,2004.Metallogenic perspective of Duolanasayi gold deposit,Xinjiang[J].Gold Science and Technology,12(5):1-5.
Zhang P,Kou L L,Zhao Y,al et,2020a.Genesis of the Wulong gold deposit,Liaoning Province,NE China:Constrains from noble gases,radiogenic and stable isotope studies[J].Geoscience Frontiers,11(2):547-563.
Zhang S,Zhu G,Liu C,al et,2018.Strike-slip motion within the Yalu River fault zone,NE Asia:The development of a shear continental margin[J].Tectonics,37(6):1771-1796.
Zhang S,Zhu G,Xiao S Y,al et,2020b.Temporal variations in the dynamic evolution of an overriding plate:Evidence from the Wulong area in the eastern North China Craton,China[J].Geological Society of America Bulletin,132(9/10):2023-2042.
Zhang Shuji,Liu Xinhui,Yang Shuanhai,2014.Geological characteristics of No.106 vein orebody in Jinlongshan gold mine,South Qinling Mountains[J].Gold Science and Te-chnology,22(3):7-14.
杜琴,刑宝山,叶杰,等,2018.连续电导率观测系统在五龙金矿深部找矿预测中的应用研究[J].地质与勘探,54(2):332-343.
黄镇豪,李兆谊,石玉春,等,2015.物探成果对罗维矿区深部找矿的指示作用及成矿潜力分析[J].黄金科学技术,23(1):53-60.
申萍,沈远超,刘铁兵,等,2007.EH4连续电导率成像仪在隐伏矿体定位预测中的应用研究[J].矿床地质,26(1):70-78.
沈远超,申萍,刘铁兵,等,2008.EH4在危机矿山隐伏金矿体定位预测中的应用研究[J].地球物理学进展,23(1):559-567.
王志强,胡滑志帆,陈斌,等,2020.辽东半岛早白垩世三股流岩体岩石成因:微量元素模拟和Sr-Nd同位素的制约[J].岩石学报,36(12):3683-3704.
肖世椰,朱光,张帅,等,2018.辽东五龙金矿区成矿期构造过程与岩脉就位机制[J].科学通报,63(增2):3022-3036.
杨凤超,宋运红,杨佳林,等,2018.辽东五龙—四道沟金矿集区花岗杂岩SHRIMP U-Pb年龄、地球化学特征及地质意义[J].大地构造与成矿学,42(5):940-954.
杨进辉,吴福元,罗清华,等,2004.辽宁丹东地区侏罗纪花岗岩的变形时代:40Ar/39Ar年代学制约[J].岩石学报,20(5):1205-1214.
姚晓峰,颜廷杰,林成贵,等,2021.辽东半岛五龙金矿成矿系统新认识:来自外围热液角砾岩型铅锌矿化的指示[J].岩石学报,37(6):1883-1900.
俞炳,曾庆栋,夏凡,等,2020.辽宁五龙金矿构造叠加晕研究[J].地质与勘探,56(5):898-914.
曾庆栋,陈仁义,杨进辉,等,2019.辽东地区金矿床类型、成矿特征及找矿潜力[J].岩石学报,35(7):1939-1963.
曾庆栋,沈远超,刘铁兵,等,2004.新疆多拉纳萨依金矿床成矿远景[J].黄金科学技术,12(5):1-5.
张蜀冀,刘新会,杨拴海,2014.南秦岭金龙山金矿106号脉体群地质特征[J].黄金科学技术,22(3):7-14.
