黄金科学技术 ›› 2021, Vol. 29 ›› Issue (5): 729-739.doi: 10.11872/j.issn.1005-2518.2021.05.020

• 采选技术与矿山管理 • 上一篇    下一篇

选矿厂计算机辅助设计(CAD)与虚拟现实技术应用现状及展望

王雨琦(),郑高华,王毓华(),卢东方,郑霞裕

  1. 中南大学资源加工与生物工程学院,湖南 长沙 410083
  • 收稿日期:2021-01-22 修回日期:2021-05-27 出版日期:2021-10-31 发布日期:2021-12-17
  • 通讯作者: 王毓华 E-mail:240952037@qq.com;wangyh@csu.edu.cn
  • 作者简介:王雨琦(1997-),女,湖南长沙人,硕士研究生,从事基于虚拟现实技术的浮选分级设计及配置系统研究工作。240952037@qq.com
  • 基金资助:
    国家自然科学基金面上项目“锂辉石矿预处理体系中矿物表面选择性溶蚀行为及调控机理研究”(51674290)

Application Status and Prospects of Computer Aided Design and Virtual Reality Technology in Mineral Processing Plant

Yuqi WANG(),Gaohua ZHENG,Yuhua WANG(),Dongfang LU,Xiayu ZHENG

  1. School of Minerals Processing and Bioengineering,Central South University,Changsha 410083,Hunan,China
  • Received:2021-01-22 Revised:2021-05-27 Online:2021-10-31 Published:2021-12-17
  • Contact: Yuhua WANG E-mail:240952037@qq.com;wangyh@csu.edu.cn

摘要:

选矿厂设计过程涉及大量数据计算、图形绘制以及设计规范和设计经验的应用,计算机辅助设计的应用无疑能显著提高设计效率和质量。通过对选矿厂计算机辅助设计研究现状进行总结和分析,指出存在的问题和不足,即设计过程模块化、设计规范和经验处理不成熟、设备配置自主化和可视化程度低以及沉浸感缺乏等。计算机虚拟现实技术(VR)的出现,为解决这些问题和不足提供了新的技术途径,将VR技术应用于选矿厂设计中,可有效提升设计过程的自主化、可视化、沉浸感以及人机交互性与设计员的想象创造力,是未来选矿厂计算机辅助设计的重要发展方向。

关键词: 选矿厂设计, 计算机辅助设计, 虚拟现实技术, 选矿工艺, 设备配置, 三维设计

Abstract:

The design of the mineral processing plant is a complicated and important work,which involves a lots of data calculation,graphic drawing and the application of the design standards and experience.The most traditional design process mainly relies on manual calculation and drawing,which usually takes a large amount of time and energy to complete.Moreover,it is difficult to find the problems in the design in time,and it is also troublesome to modify the data and graphics.With the development of computer technology,the development and application of computer aided design software can significantly improve the efficiency and quality of the operation in the process of design and drawing of the mineral processing plant.Through the research and development of the software of process and equipment selection calculation,two-dimensional and three-dimensional graphics drawing,the repetitive and regular calculation and drawing steps in the design process can be reduced,and all kinds of errors happened in the engineering drawing is reduced at the same time.In addition,the application of the expert system technology,solved the problem of design standards and experience in the design process of the mineral processing plant to a certain extent,which can make computer participate in the design process,rather than just acting as a design tool.But at present,there are still deficiencies in the computer-aided design of mineral processing plant,such as the fragmentation of design process,the immature treatment of design specifications and experience,the lack of autonomy,visualization and immersion of equipment layout and so on.With the continuous development of computer technology,the rise of modern virtual reality technology provides a new and optional technical way to solve the existing deficiencies in the computer-aided design of mineral processing plant.The virtual reality technology integrates multi-computer technologies such as multimedia,graphics,simulation and artificial intelligence,which can greatly improve the autonomy,visualization and immersion of the design process,as well as human-computer interaction and designers'imagination and creativity.It has been widely used in many fields and industries,and has achieved some effective results.In the field of the mineral processing plant design,the application of virtual reality technology is still in the preliminary exploration stage,but it has great research potential and research value,and it will be an important development direction of the computer-aided design of mineral processing plant in the future.

Key words: mineral processing plant design, computer aided design, virtual reality technology, mineral processing technology, equipment layout, three-dimension design

中图分类号:

  • TD928

图1

破碎、磨矿的5种基本流程单元(a)一段开路单元;(b)一段带预先分级单元;(c)一段带检查分级单元;(d)一段带预先和检查分级单元;(e)一段带预先分级和检查分级单元"

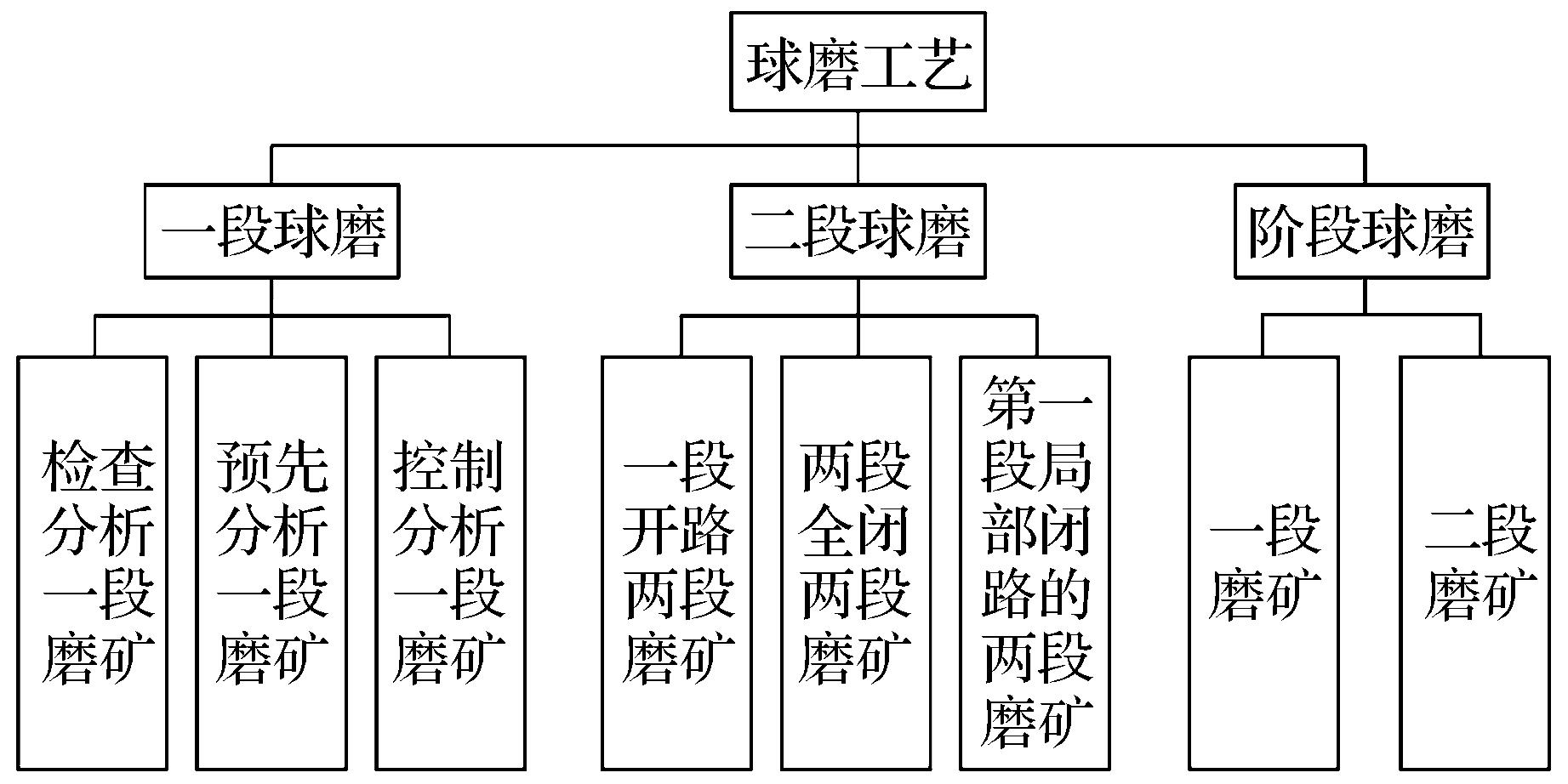

图2

球磨工艺选择知识的树形结构图"

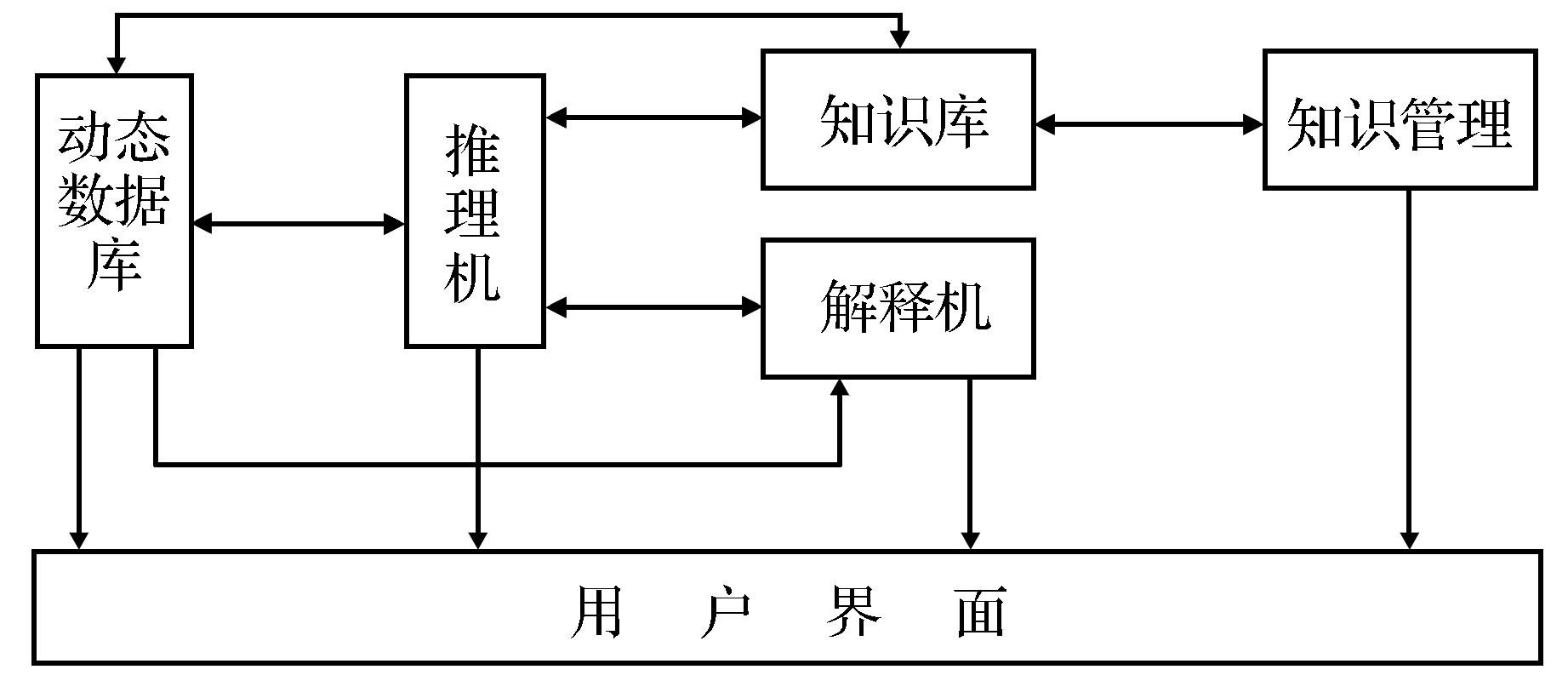

图3

磨矿方案选择系统结构图"

图4

“二叉树”原理图(a)浮选流程;(b)对应的“二叉树”表示"

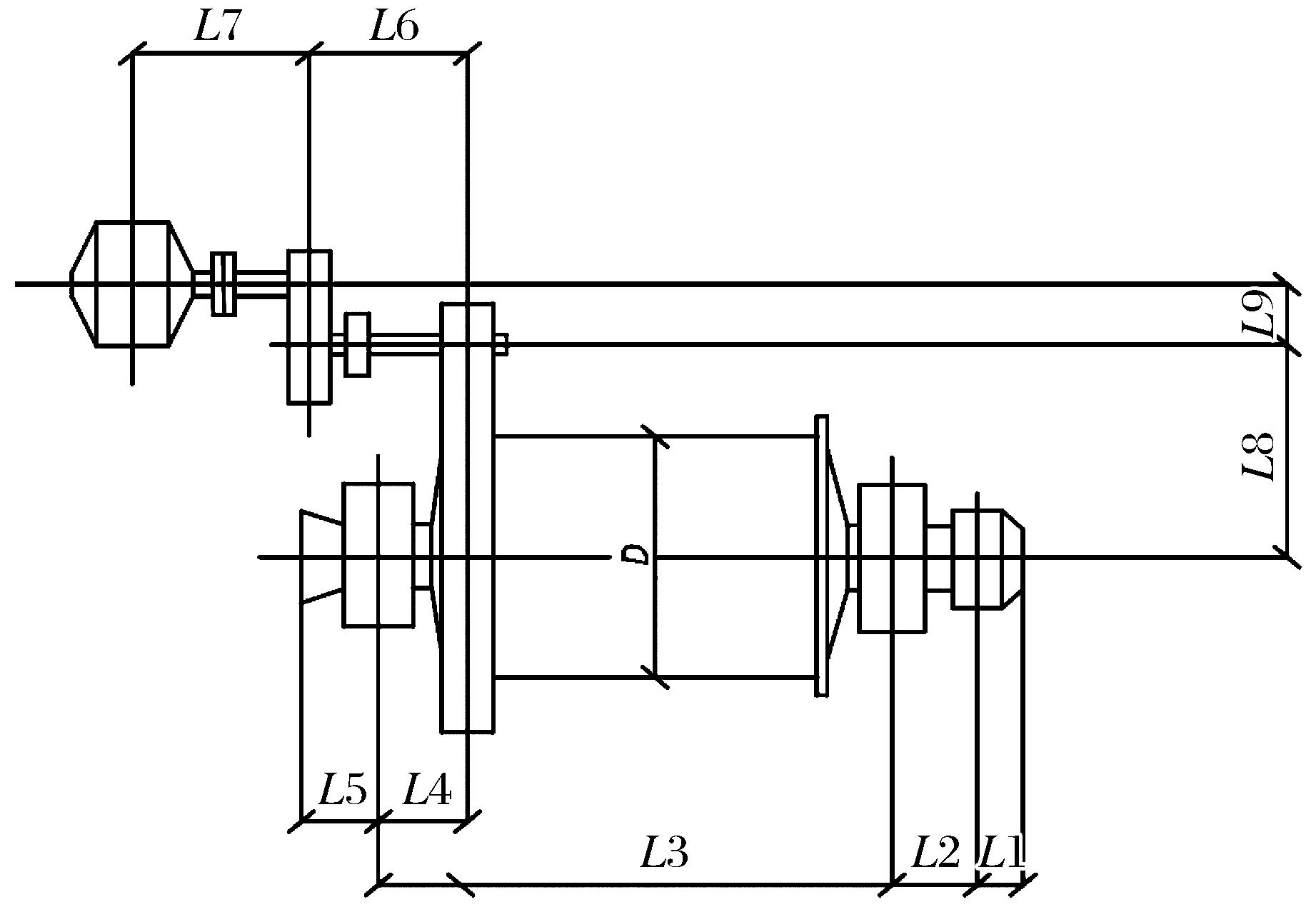

图5

利用参数化绘图法得到的球磨机示意图"

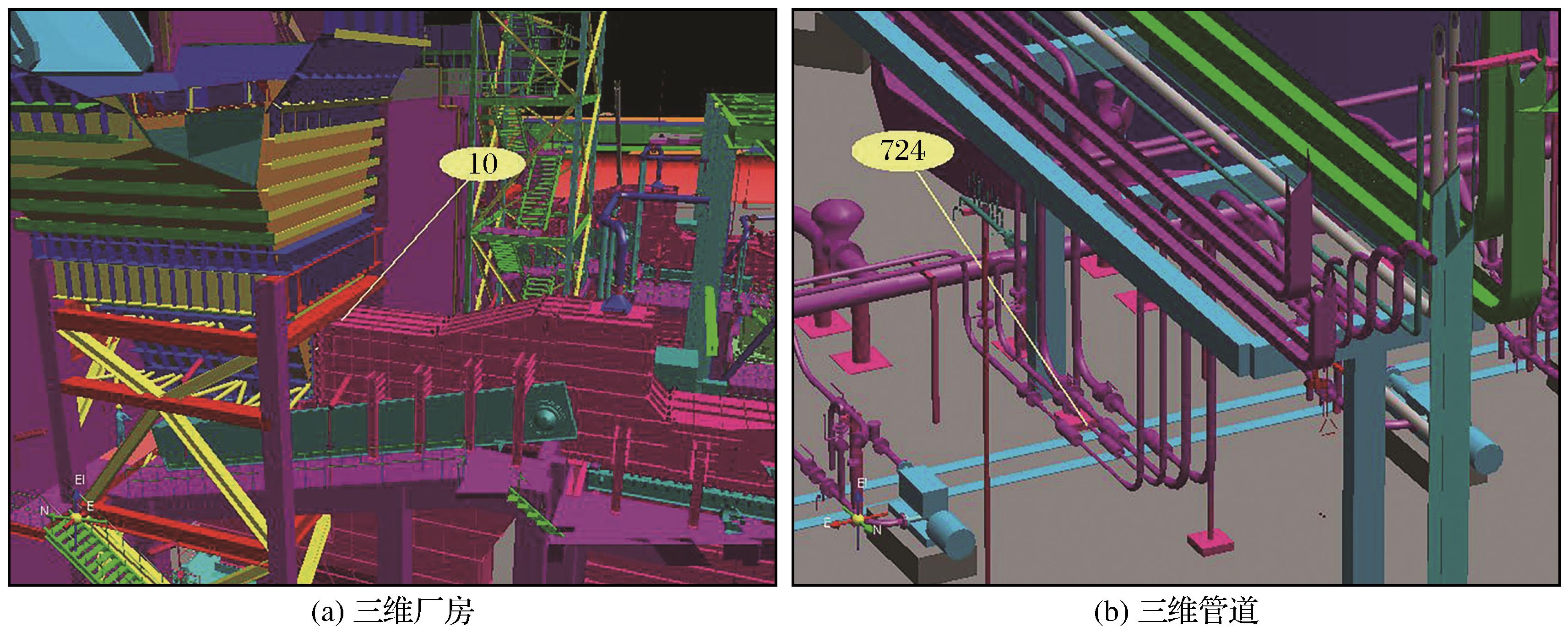

图6

选矿厂三维设计图"

表1

VR技术在矿物加工领域的应用"

类型软件、平台或技术成果
工艺设备Unity3D颚式破碎机虚拟拆装实验系统(图7)(吴飞等,2019)
VRP、 3ds Max、SolidWorks球磨机虚拟现实仿真系统(王倩,2015)
工艺过程3ds Max、cult3d磨矿生产过程的虚拟现实仿真(王德燕,2011)
VR技术与OPC通信技术磨矿过程控制的实时仿真(董燊,2008)
Unity3D、3ds Max磨矿车间虚拟仿真系统(李益,2014)
教学VR技术碱金属选矿厂的3D VR模拟装置(Ata et al.,2018)

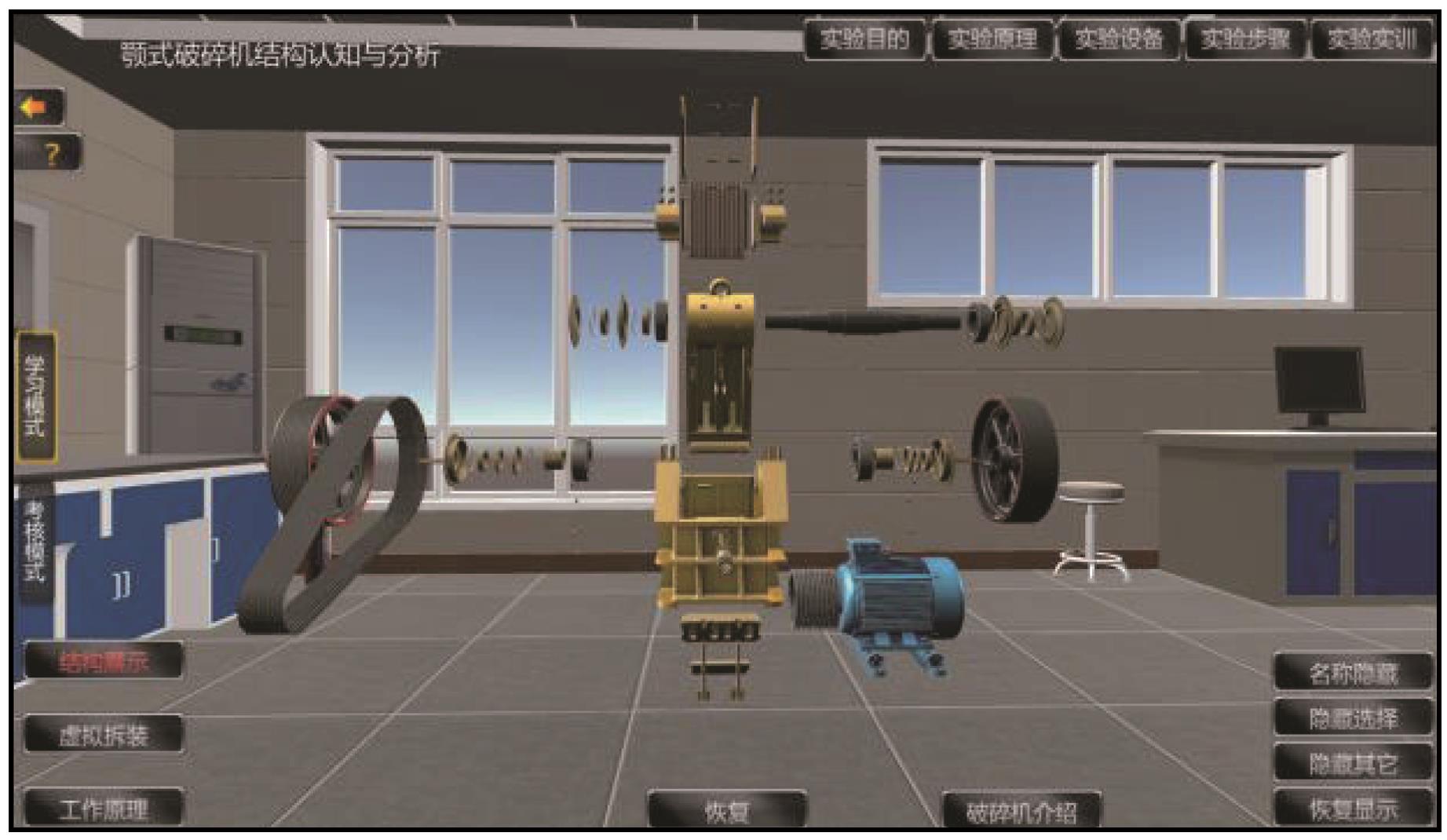

图7

颚式破碎机结构展示爆炸图(吴飞等,2019)"

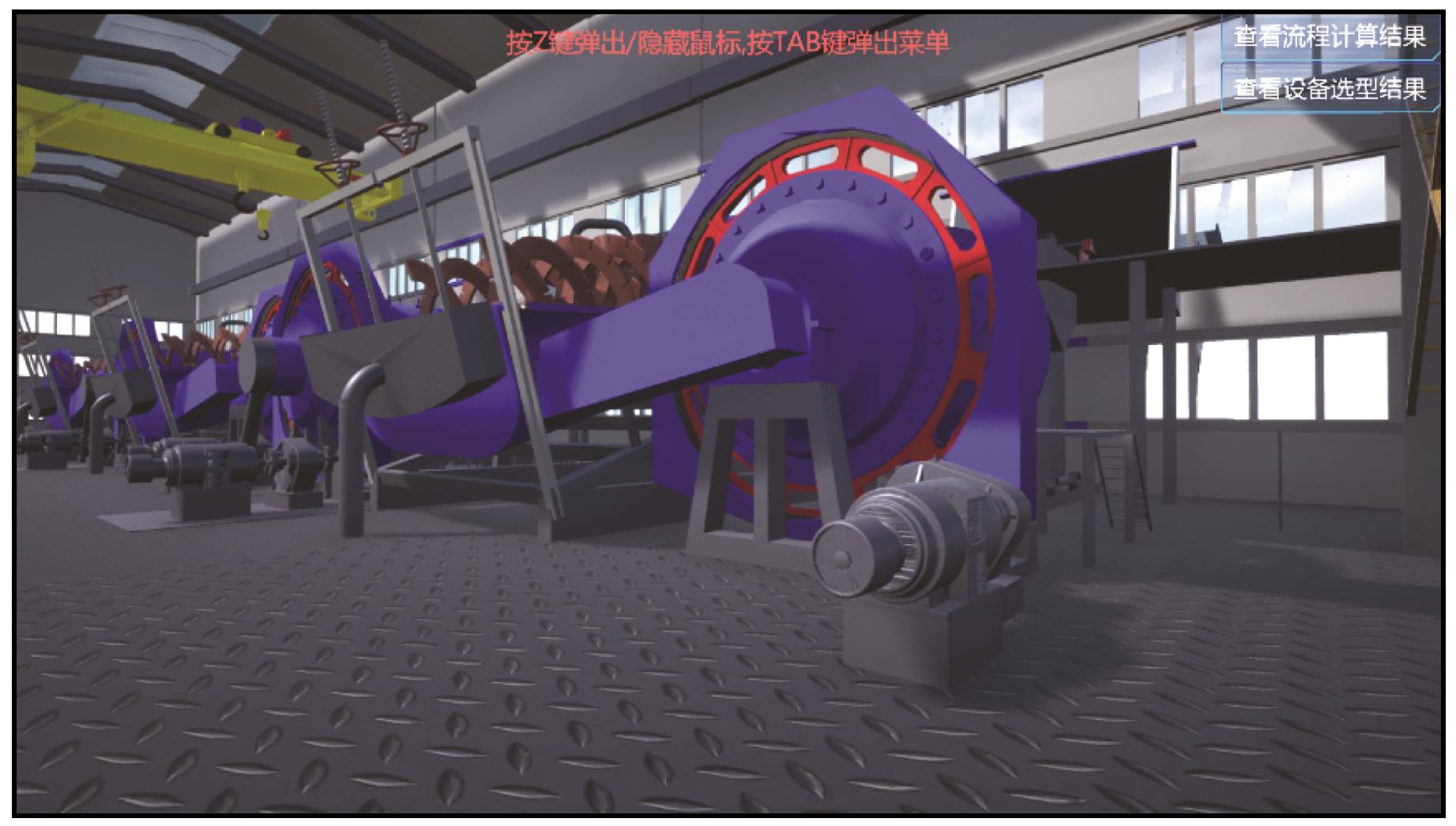

图8

两段磨矿流程设备配置可视化设计结果"

Ata S,Tibbett J,2018.Using Virtual Reality to Enhance Mineral Processing Education[C]//The 29th SOMP Annual Meeting and Conference on Mines of the Future(SOMP 2018).Beijing:Canamaple Academia Services(Camdemia).
Bellalouna F,2020.New approach for digital factory using virtual reality technology[J].Procedia CIRP,93:256-261.
Burdea G,Coiffet P,2003.Virtual Reality Technology[J].Presence,12(6):663-664.
Chen Jia,2014.Discussion on the teaching of concentrator design for mineral processing[J].Guangzhou Chemical Industry,42(23):227-228.
Chen Jin,Wang Yuhua,Chen Songqiao,al et,1996a.Application of CAD techniques in concentrator design[J].Mental Mine Design and Construction,(5):34-36.
Chen Jin,Wang Yuhua,Zhou Longting,al et,1996b.Study on intelligent CAD system for mineral processing technological equipment layout[J].Metal Mine,26(9):41-43.
Chen Jin,Zhang Farong,1994.Study on expert system for scheme selection of crushing and grinding flow[J].Metallic Ore Dressing Abroad,(1):9-14.
Chen Rongxiang,Ouyang Xiachang,2020.Application of 3D design technology in mineral processing design[J].Hunan Nonferrous Metals,36(3):14-16,25.
Chu E,Zaman L,2021.Exploring alternatives with Unreal Engine’s Blueprints Visual Scripting System[J].Entertainment Computing,36:1-16.
Debevec M,Simic M,Jovanovic V,al et,2020.Virtual factory as a useful tool for improving production processes[J].Journal of Manufacturing Systems,(57):379-389.
Deng Chao’an,1991.Introduction of mineral processing design optimization program package[J].Nonferrous Mines,(3):56-60.
Dong Shen,2008.Design and Development of the Virtual Reality Based Real Time Simulation System for Grinding Process Control[D].Shenyang:Northeastern University.
Fan H B,Jiang W S,2020.Application research of virtual reality technology in design[J].Journal of Physics:Conference Series,1575(1):1-11.
Ge Xiaoding,2019.Application of Unreal Engine4 in film and television scenes[J].Advanced Television Engineering,(10):106-109.
Guan Zhichao,Wei Chongguang,Fang Xiaochu,1995.Development of CAD software for mineral processing plant design[J].Metal Mine,25(2):52-53.
Hu Pengfei,Shen Qianqian,2014.Discussion on application of virtual reality technology in coal preparation industry[J].Coal Processing & Comprehensive Utilization,(1):32-34.
Li Donglian,Chu Hao,2005.Application of VB in calculation of concentrator design and selection of mineral processing equipment[J].Industrial Mineral & Processing,(11):32-34.
Li Qiwen,Tao Hong,1986.Crushing process system calculation[J].Nonferrous Metals(Mineral Processing Section),(3):37-42.
Li Yi,2014.Virtual Simulation System for Grinding Workshop Based on Unity3d[D].Dalian:Dalian University of Technology.
Pang Xueshi,Hu Yemin,2011.A novel calculation program on hydrocyclone lectotype[J].Nonferrous Metals(Mineral Processing Section),(Supp.1):261-266.
Qiu W C,Yuille A,2016.UnrealCV:Connecting Computer Vision to Unreal Engine[C]//European Conference on Computer Vision.Berlin:Springer.
Song Pingping,2018.The two development and application of three dimensional design software for process piping of mineral processing plant[J].World Nonferrous Metal,(12):185-186.
Sun Yongfeng,Dong Fengzhi,Wang Shuhong,2005.Development of grinding flowsheet aided calculation system[J].Industrial Mineral & Processing,(12):29-31.
Sun Yongfeng,Wang Shuhong,2016.Design and development of assisted calculation system for beneficiation process based on CAD[J].Education Modernization,3(22):108-110,118.
Tian Aimin,Xu Yun,Li He,al et,2004.The computer auxiliary selection of centrifugal slurry pump[J].Coal Mine Machinery,(7):51-53.
Wang Deyan,2011.Emulation of grinding process based the virtual reality[J].Non-Ferrous Mining and Metallurgy,27(1):18-19.
Wang Qian,2015.Design on Virtual Reality Simulation System of Ball Mill Based on VRP[D].Handan:Hebei University of Engineering.
Wang Yuhua,1996.A Study of Application of Expert System for Grinding Technology Design and CAD[D].Changsha:Central South University of Technology.
Wang Yuhua,1998.Study on expert system of grinding process scheme design[J].Nonferrous Metals Design,25(3):6-9,20.
Wang Yuhua,Chen Jin,Chen Songqiao,al et,1997.Computer aided layout for concentrator[J].Journal of Central South University of Technology,28(3):219-212.
Wang Yuhua,Wang Huajun,2012.Engineering Design of Mineral Processing[M].Changsha:Central South University Press.
Wang Yuhua,Yue Yanming,2002.Development and application of CAI software for crushing circuit selection and calculation[J].Nonferrous Metals Design,29(4):21-25.
Wang Yuhua,Zhou Longting,1995a.Development and application of plotting software of flotation process[J].Engineering Construction,27(4):11-14.
Wang Yuhua,Zhou Longting,Zhou Longting,al et,1995b.Design and application of WARMAN pump type selection software[J].Metal Mine,25(9):49-50.
Wang Yuhua,Zhou Longting,Chen Songqiao,al et,1995c.Preliminary study on expert system of mineral processing plant design[J].Metal Mine,25(11):40-42.
Wang Yuhua,Zhou Longting,Chen Songqiao,al et,1995d.Development and application of grinding processing design software[J].Nonferrous Metals Design,(3):9-11.
Wang Yuhua,Zhou Longting,Chen Songqiao,al et,1996a.Application of dimension constraint method in computer-aided design of mineral processing equipment layout drawing[J].Nonferrous Metals Design,(2):32-33,38.
Wang Yuhua,Zhou Longting,Chen Songqiao,al et,1996b.Research on computer aid design for the equipment layout of grinding and flotation plant[J].Metal Mine Design and Co-nstruction,(2):25-28
Wu Fei,Huang Wei,2019.Development of virtual disassembly experiment teaching system for jaw crusher based on Unity3D[J].Education Modernization,6(69):95-98.
Xiao Chunlian,1996.Study on intelligent decision support system for process design of mineral concentrator[J].Nonferrous Metals Engineering & Research,17(Supp.1):17-22.
Yu Qishi,1997.Computer simulation and calculation of closed circuit process of mineral processing in laboratory[J].Copper Engineering,(1):62-64.
Yu Yunlong,2018.Application of three-dimensional design system in the design of concentrator[J].Mining Equipment,36(1):38-40.
Zhang B J,2020.Research on the application of immersive virtual technology in Zigong Salt Industry History Museum[J].Scientific Journal of Economics and Management Research,2(7):195-202.
Zhang Farong,1992.A Study of Expert System on Technological Design of Crushing Plant[D].Changsha:Central South University of Technology.
Zhang Huan,2016.Virtual reality technology and its application in mining engineering[J].Inner Mongolia Coal Economy,(13):35-36.
Zhang J,2020.Implementation and optimization of particle effects based on Unreal Engine 4[J].Journal of Physics:Co-nference Series,1575(1):1-6.
Zheng Gaohua,2021.Reasearch on the design of typical grinding-classification process based on virtual reality technology[D].Changsha:Central South University.
Zheng Gaohua,Wang Yuqi,Wang Yuhua,al et,2021.Development of a grinding-classification process auto-design system based on virtual reality technology[J].Gold Science and Technology,29(1)120-128.
Zhou Bin,Wu Caibin,Shi Guiming,al et,2016.Development and application of calculation software for steel ball size and ratio in gringing process[J].Industrial Mineral & Processing,45(1):23-26.
Zhou Longting,1989.Combination of Auto CAD and advanced computer language for dimension and its application[J].Journal of Central-South Institute of Mining and Metallurgy,20(2):136-142.
陈佳,2014.矿物加工专业选矿厂设计教学探讨[J].广州化工,42(23):227-228.
陈荩,王毓华,陈松乔,等,1996a.CAD技术在选矿厂设计中的应用[J].冶金矿山设计与建设,(5):34-36.
陈荩,王毓华,周龙廷,等,1996b.选矿工艺设备配置图智能CAD系统的研究[J].金属矿山,26(9):41-43.
陈荩,张法荣,1994.碎磨流程方案选择专家系统的研究[J].国外金属矿选矿,(1):9-14.
陈荣香,欧阳霞嫦,2020.三维设计技术在选矿设计中的应用[J].湖南有色金属,36(3):14-16,25.
邓朝安,1991.选矿工艺设计优化程序包介绍[J].有色矿山,(3):56-60.
董燊,2008.基于虚拟现实的磨矿过程控制实时仿真系统的设计与开发[D].沈阳:东北大学.
葛小丁,2019.Unreal Engine4在影视场景中的运用[J].现代电视技术,(10):106-109.
关志超,魏崇光,方晓初,1995.选矿厂设计CAD软件开发[J].金属矿山,25(2):52-53.
胡鹏飞,沈倩倩,2014.虚拟现实技术在选煤行业应用的探讨[J].煤炭加工与综合利用,(1):32-34.
李冬莲,楚昊,2005.VB在选矿厂设计计算及设备选型中的应用[J].化工矿物与加工,(11):32-34.
李启文,陶弘,1986.破碎流程系统计算[J].有色金属(选矿部分),(3):37-42.
李益,2014.基于Unity3d的磨矿车间虚拟仿真系统[D].大连:大连理工大学.
庞学诗,胡业民,2011.水力旋流器选型计算新程序[J].有色金属(选矿部分),(增1):261-266.
宋平平,2018.选矿厂工艺管道三维设计软件的二次开发及应用[J].世界有色金属,(12):185-186.
孙永峰,董风芝,王淑红,2005.磨矿流程辅助设计系统开发[J].化工矿物与加工,(12):29-31.
孙永峰,王淑红,2016.基于CAD系统的选矿工艺流程计算辅助教学系统设计与开发[J].教育现代化,3(22):108-110,118.
田爱民,许云,李合,等,2004.离心式渣浆泵的计算机辅助选型[J].煤矿机械,(7):51-53.
王德燕,2011.基于虚拟现实的磨矿过程仿真[J].有色矿冶,27(1):18-19.
王倩,2015.基于VRP的球磨机虚拟现实仿真系统设计[D].邯郸:河北工程大学.
王毓华,1996.磨浮厂房工艺设计专家系统及CAD应用的研究[D].长沙:中南工业大学.
王毓华,1998.磨矿工艺方案设计专家系统研究[J].有色金属设计,25(3):6-9,20.
王毓华,陈荩,陈松乔,等,1997.选矿厂计算机辅助配置设计[J].中南工业大学学报,28(3):219-221.
王毓华,王化军,2012.矿物加工工程设计[M].长沙:中南大学出版社.
王毓华,岳彦明,2002.破碎流程选择计算CAI软件的设计与应用[J].有色金属设计,29(4):21-25.
王毓华,周龙廷,1995a.浮选流程绘图软件的开发与应用[J].工程建设,27(4):11-14.
王毓华,周龙廷,陈松乔,等,1995b.沃曼(WARMAN)泵选型软件的设计与应用[J].金属矿山,25(9):49-50.
王毓华,周龙廷,陈松乔,等,1995c.选矿厂设计专家系统初探[J].金属矿山,25(11):40-42.
王毓华,周龙廷,陈松乔,等,1995d.磨矿工艺设计软件的研制与应用[J].有色金属设计,(3):9-11.
王毓华,周龙廷,陈松乔,等,1996a.尺寸约束法在选矿设备配置图计算机辅助设计中的应用[J].有色金属设计,(2):32-33,38.
王毓华,周龙廷,陈松乔,等,1996b.磨矿浮选主厂房配置图计算机辅助设计的研究[J].冶金矿山设计与建设,(2):25-28.
吴飞,黄威,2019.基于Unity3D的颚式破碎机虚拟拆装实验教学系统开发[J].教育现代化,6(69):95-98.
肖春莲,1996.选矿厂工艺设计智能决策支持系统初探[J].有色冶金设计与研究,17(增1):17-22.
喻圻拾,1997.试验室选矿闭路流程计算机模拟计算[J].铜业工程,(1):62-64.
于云龙,2018.三维设计系统在选矿厂设计中的应用[J].矿业装备,(5):74-75.
张法荣,1992.破碎厂房工艺设计专家系统的研究[D].长沙:中南工业大学.
张欢,2016.虚拟现实技术及其在采矿工程中的应用探讨[J].内蒙古煤炭经济,(13):35-36.
郑高华,2021.基于VR技术的典型磨矿工艺设计研究[D].长沙:中南大学.
郑高华,王雨琦,王毓华,等,2021.基于虚拟现实技术的磨矿分级工艺自主设计系统的开发[J].黄金科学技术,29(1):120-128.
周斌,吴彩斌,石贵明,等,2016.磨矿过程钢球尺寸及配比计算软件开发与应用[J].化工矿物与加工,45(1):23-26.
周龙廷,1989.Auto CAD与高级语言标注尺寸的联接及应用[J].中南矿冶学院学报,20(2):136-142.
