黄金科学技术 ›› 2020, Vol. 28 ›› Issue (6): 859-867.doi: 10.11872/j.issn.1005-2518.2020.06.047
Jianhua HU1(),Le PANG1,Xueliang WANG2,Minghua ZHENG2
摘要:

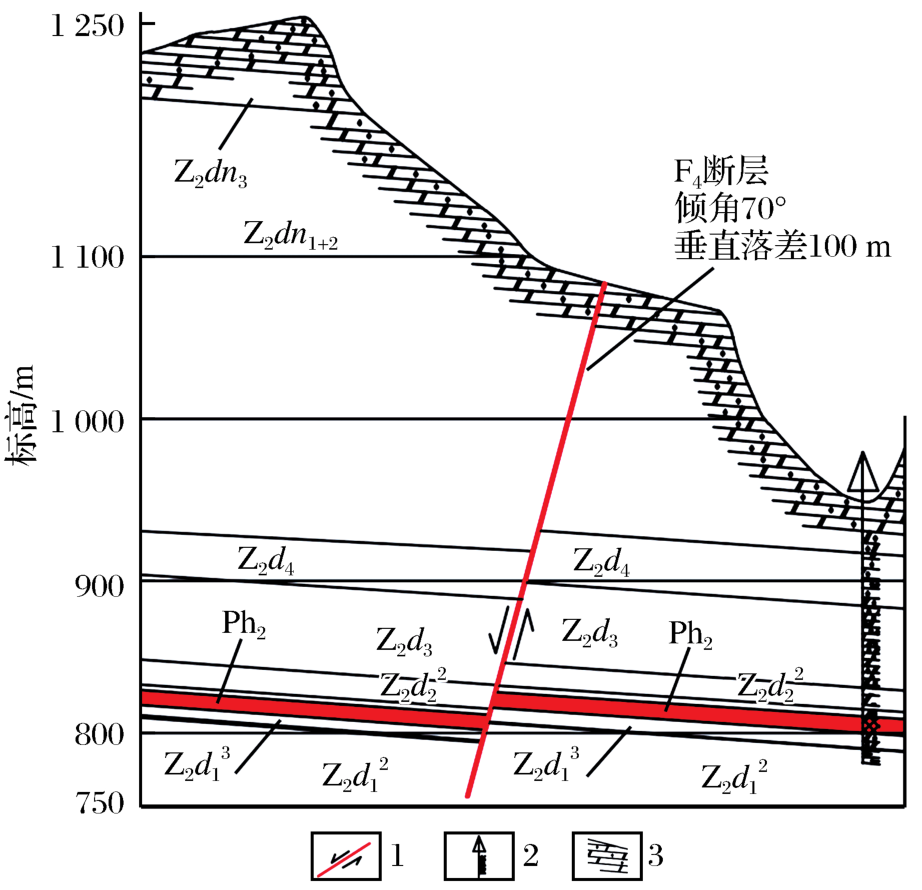

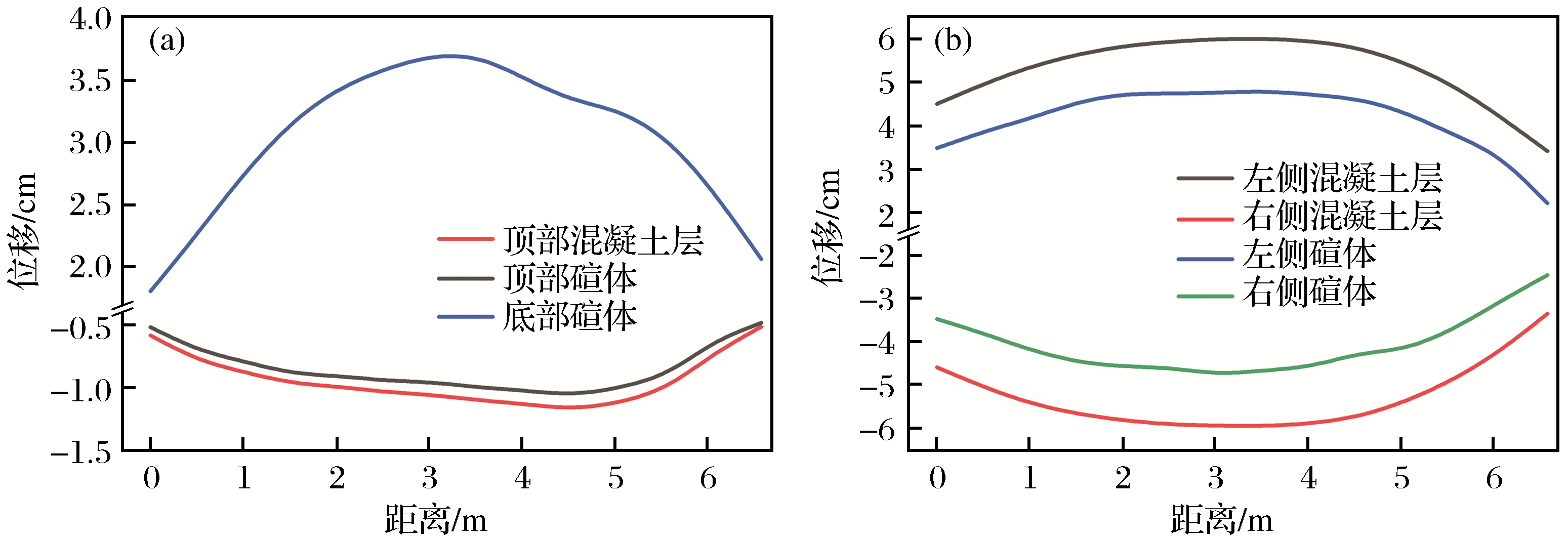

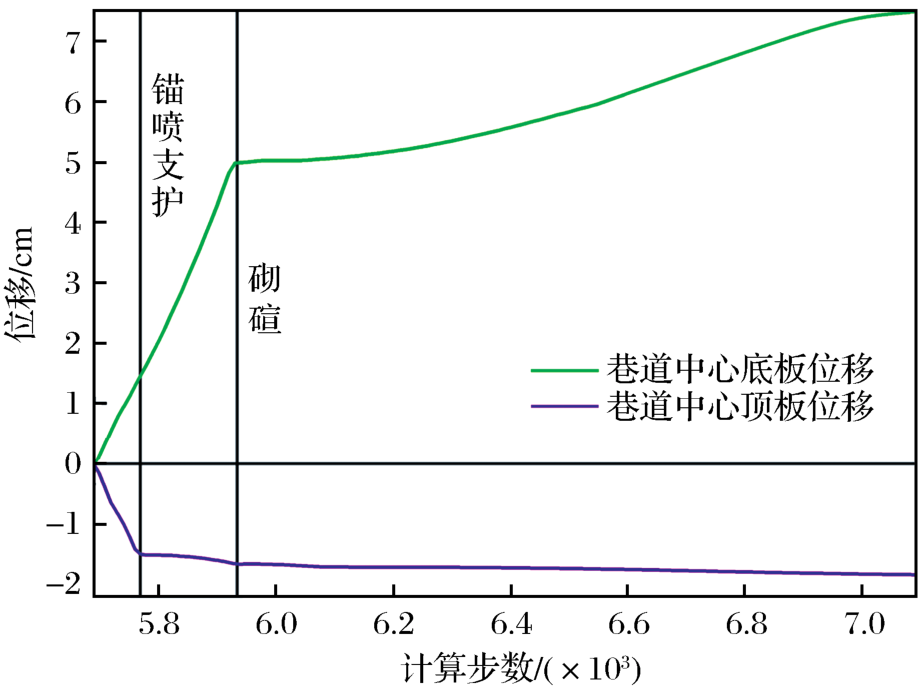

过断层软破段巷道支护对矿山巷道施工与运行安全具有重要影响。以挑水河磷矿过断层软破段巷道为研究对象,在调查其工程地质条件的基础上,构建了三维矿山巷道的数值仿真模型,设计了3因素(其中1个因素4水平,2个因素2水平)的支护参数正交试验方案,获得不同参数下的支护效果和变形规律,并以极差分析优选确定了巷道的支护方式与参数。研究结果表明:(1)通过正交试验设计可以有效减少试验次数,提高计算效果,计算结果的响应分析确定了不同结果的影响因素,即顶底板位移、垂直应力和巷道侧帮位移大小的主要影响因素分别为锚杆长度、混凝土厚度和碹体厚度。(2)以过断层软破段巷道的位移和应力控制为目标,确定了最优支护方案:锚杆长度为2.8 m、喷射混凝土厚度为100 mm、碹体厚度为250 mm。研究成果为该矿巷道开挖支护提供了技术参考,对具有类似地质条件的金属矿床起到了良好的示范。
中图分类号:
1 | Kang H,Zhang X,Si L,et al.In-situ stress measurements and stress distribution characteristics in underground coal mines in China[J].Engineering Geology,2010,116(3/4):333-345. |
2 | De Bellis M L,Della Vecchia G,Ortiz M,et al.A linearized porous brittle damage material model with distributed frictional-cohesive faults[J].Engineering Geology,2016,215:10-24. |
3 | Niwa M,Shimada K,Aoki K,et al.Microscopic features of quartz and clay particles from fault gouges and infilled fractures in granite:Discriminating between active and inactive faulting[J].Engineering Geology,2016,210:180-196. |
4 | 王玉和,李春朋,崔增斌.含软弱夹层对巷道围岩承载结构的影响分析[J].科学技术与工程,2019,19(36):111-116. |
Wang Yuhe,Li Chunpeng,Cui Zengbin,et al.Analyses on the influence of soft interlayer on the bearing structure of roadway surrounding rock[J].Science Technology and Engineering,2019,19(36):111-116. | |
5 | 苏锡安.西石门铁矿北区软弱破碎围岩巷道掘支技术[J].中国矿业,2019,28(11):109-112. |
Su Xi’an.Excavation and support technology of soft and fractured surrounding rock roadway in north area of Xishimen iron mine[J].China Mining Magazine,2019,28(11):109-112. | |
6 | 孙健新.软弱煤岩复合顶板巷道破坏机理与支护技术[J].煤矿安全,2019,50(9):96-100. |
Sun Jianxin.Failure mechanism and supporting technology of roadway with weak coal and rock composite roof[J].Safety in Coal Mines,2019,50(9):96-100. | |
7 | 王松柏.泥化软岩巷道全断面锚注加固技术研究[J].能源与环保,2019,41(1):125-129. |
Wang Songbai.Research on grouting anchorage for full section in soft and mudding roadway[J].China Energy and Environmental Protection,2019,41(1):125-129. | |
8 | Zhao K,Bonini M,Debernardi D,et al.Computational modelling of the mechanised excavation of deep tunnels in weak rock[J].Computers and Geotechnics,2015,66:158-171. |
9 | 李光,马凤山,刘港,等.金川矿区深部巷道支护效果评价及参数优化研究[J].黄金科学技术,2018,26(5):605-614. |
Li Guang,Ma Fengshan,Liu Gang,et al.Study on supporting parametric optimizing design and evaluate supporting effect of deep roadway in Jinchuan Mine[J].Gold Science and Technology,2018,26(5):605-614. | |
10 | Wang L G,Li H L,Zhang J.Numerical simulation of creep characteristics of soft roadway with bolt-grouting support[J].Journal of Central South University of Technology,2010,15(1):391-396. |
11 | 丁昌伟,吴德义.典型地质条件深部岩巷锚杆长度的选择[J].山西建筑,2020,46(3):67-69. |
Ding Changwei,Wu Deyi.Selection of bolt length in deep rock roadway under typical geological conditions[J].Shanxi Architecture,2020,46(3):67-69. | |
12 | 朱家锐,毛明发,常伟华,等.基于正交试验对深部巷道锚喷网支护参数的设计与优化[J].煤炭技术,2017,36(12):22-24. |
Zhu Jiarui,Mao Mingfa,Chang Weihua,et al.Designand optimization of shotcrete rockbolt mesh supporting parameters for deep roadway based on orthogonal test [J].Coal Technology,2017,36(12):22-24. | |
13 | 刘希亮,王蒙蒙,王新宇,等.基于正交试验的深部岩巷稳定性数值分析[J].煤炭科学技术,2018,46(2):138-143,181. |
Liu Xiliang,Wang Mengmeng,Wang Xinyu,et al.Numerical analysis on stability of deep rock roadway based on orthogonal test[J].Coal Science and Technology,2018,46(2):138-143,181. | |
14 | Yang Z,Dai F,Muhammad Usman A,et al.The long- term safety of a deeply buried soft rock tunnel lining under inside-to-outside seepage conditions[J].Tunnelling and Underground Space Technology,2017,67:132-146. |
15 | 胡建华,任启帆,亓中华,等.卧虎山铁矿采场极限暴露面积回归优化模型[J].黄金科学技术,2018,26(4):503-510. |
Hu Jianhua,Ren Qifan,Qi Zhonghua,et al.Regress optimize model of limit exposure area to stope in Wohushan iron mine[J].Gold Science and Technology,2018,26(4):503-510. | |
16 | 王春,王成,熊祖强,等.动力扰动下深部出矿巷道围岩的变形特征[J].黄金科学技术,2019,27(2):232-240. |
Wang Chun,Wang Cheng,Xiong Zuqiang,et al.Deformation characteristics of the surrounding rock in deep mining roadway under dynamic disturbance[J].Gold Science and Technology,2019,27(2):232-240. | |
17 | 万军伟.巷道支护参数设计研究[J].能源与环保,2019,41(10):162-165. |
Wan Junwei.Research on design of roadway support parameters [J].China Energy and Environmental Protection,2019,41(10):162-165. | |
18 | 周国军,贺严.基于Flac3D数值模拟的软弱岩体联合支护机理研究[J].有色矿冶,2019,35(5):6-10. |
Zhou Guojun,He Yan.Research on combined supporting mechanism of fractured rock mass based on Flac3D numerical simulation[J].Non-ferrous Mining and Metallurgy,2019,35(5):6-10. | |
19 | 黄鑫,姚韦靖.多因素影响下巷道变形特性数值模拟研究[J].中国安全生产科学技术,2019,15(4):32-38. |
Huang Xin,Yao Weijing.Numerical simulation study on deformation characteristics of roadway under multi-factor influence[J].Journal of Safety Science and Technology,2019,15(4):32-38. | |
20 | 杨明财,盛建龙,叶祖洋,等.基于FlAC3D的露天矿边坡稳定性及影响因素敏感性分析[J].黄金科学技术,2018,26(2):179-186. |
Yang Mingcai,Sheng Jianlong,Ye Zuyang,et al.Analysis of sensitivity factors of open-pit mine slope stability and impact based on FlAC3D[J].Gold Science and Technology,2018,26(2):179-186. | |
21 | 龙科明,王李管.基于ANSYS-R法的采场结构参数优化[J].黄金科学技术,2015,23(6):81-86. |
Long Keming,Wang Liguan.Optimization of stope structural parameters based on ANSYS-R method[J].Gold Science and Technology,2015,23(6):81-86. |
