黄金科学技术 ›› 2020, Vol. 28 ›› Issue (1): 142-147.doi: 10.11872/j.issn.1005-2518.2020.01.080

• 采选技术与矿山管理 • 上一篇    下一篇

青海某金矿选冶中试厂工艺设计优化及应用

李飞1,2(),陈自强1,2

  1. 1.青海省第六地质勘查院,青海 西宁 816000
    2.青海省金矿资源开发工程技术研究中心,青海 都兰 816100
  • 收稿日期:2019-06-20 修回日期:2019-09-29 出版日期:2020-02-29 发布日期:2020-02-26
  • 作者简介:李飞(1987-),男,湖北荆门人,工程师,从事金矿选矿技术工作。376169069@qq.com
  • 基金资助:
    青海省重点研发与转化计划项目“柴达木南缘难选铜金多金属矿高效利用技术研究与应用”(2019-SF-139)

Process Design Optimization and Application of a Dressing and Metallurgy Pilot Plant in Qinghai

Fei LI1,2(),Ziqiang CHEN1,2

  1. 1.Qinghai 6th Institute of Geology Exploration,Xining 816000,Qinghai,China
    2.The Engineering and Technology Research Center for the Development of Gold Mining Resources in Qinghai Province,Dulan 816100,Qinghai,China
  • Received:2019-06-20 Revised:2019-09-29 Online:2020-02-29 Published:2020-02-26

摘要:

青海某金矿新建30 t/d选冶中试厂,选冶工艺以浮选和环保提金剂浸出工艺为主,主要针对金矿资源选冶新工艺、新技术、新药剂、新材料和自动化控制等在工业生产应用前的中试验证及优化试验进行系统研究。中试厂原设计流程单一,无法满足工艺流程优化试验研究的需求,通过对该中试厂工艺流程设计进行优化,实现了不同试验工艺流程的组合和调整,在小试研究结果基础上对该矿山2个矿区的矿石分别进行工艺优化中试研究,研究成果成功应用于选厂实际生产中,黄龙沟矿区矿石回收率由77.51%提高至82.48%,年新增产值883.45万元。

关键词: 选冶, 中试厂, 中试研究, 工艺优化, 回收率, 金矿, 青海省

Abstract:

A 30 t/d dressing and metallurgy pilot plant have been completed for a gold mine in Qinghai Province.The processing technologies of the pilot plant are flotation and gold leaching by environmental extraction agent.The pilot plant is mainly aimed at the pilot test study for gold ore dressing and metallurgy of new techniques,new materials and new technologies,new reagents and automatic control,etc. At the same time,it can carry out the flotation technology research for nonferrous metals.Mainly equipment in the pilot plant was monitored by frequency conversion,so that it can study the technical measures to improve equipment operation rate.The original design flow of the pilot plant is single,so it cannot carry out process optimization experiment research.Base on optimizing the process designs,different process test can be combination and adjustment.Through the open-circuit tests of laboratory for Huanglonggou gold ore and Shuizhadonggou gold ore in this mine,the recovery rate of the rougher flotation,the once scavenging,the second scavenging,the third scavenging for Shuizhadonggou gold ore is 80.41%,6.55%,1.47%,0.67%,and the grade of secondary cleaning concentrate is 30.40×10-6,so the suitable flotation process for Shuizhadonggou gold ore is single stage rough two stage cleaning three stage scavenging;the recovery rate of the rough flotation,the once scavenging,the second scavenging,the third scavenging for Huanglonggou gold ore is 75.95%,3.53%,2.32%,1.52%,and the grade of rough flotation concentrate is 29.51×10-6,so the suitable flotation process for Huanglonggou gold ore is single stage rough three stage scavenging.Based on the results of laboratory tests for these two minerals,the pilot tests were carried out in the pilot plant,which was aimed at demonstrating the results of the laboratory tests.Finally,this research result was successfully applied to the actual production of plants,the flotation process of the second plant was optimized to a single stage roughing three stage scavenging.As a result,the recovery rate of Huanglonggou gold ore is increased to 82.48% from 77.51%,more than 66.88 kg gold is additionally recovered per year,and the annual increase in production value reaches 8 834 500 yuan.

Key words: dressing-metallurgy, pilot plant, pilot test, process optimization, recovery, gold mine, Qinghai Province

中图分类号:

  • TD953

表1

主要选矿工艺参数"

参数名称数值参数名称数值
处理能力/(t·d-130球磨磨矿浓度/%76~78
给矿粒度/mm-210粗选浓度/%28
碎矿产品粒度-11 mm占95%精矿含水率/%<15
球磨分级细度-0.074 mm占60%~85%

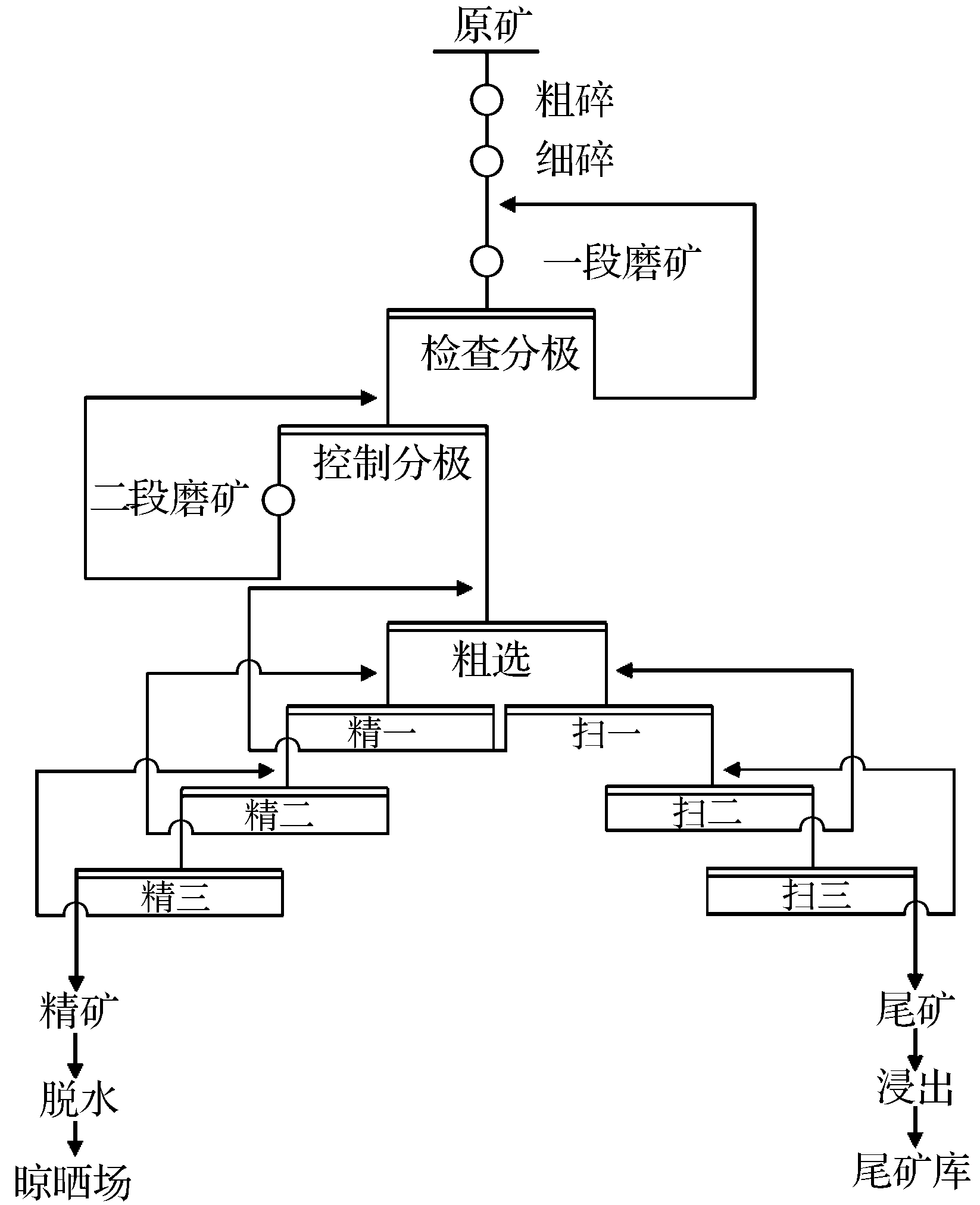

图1

原设计工艺流程"

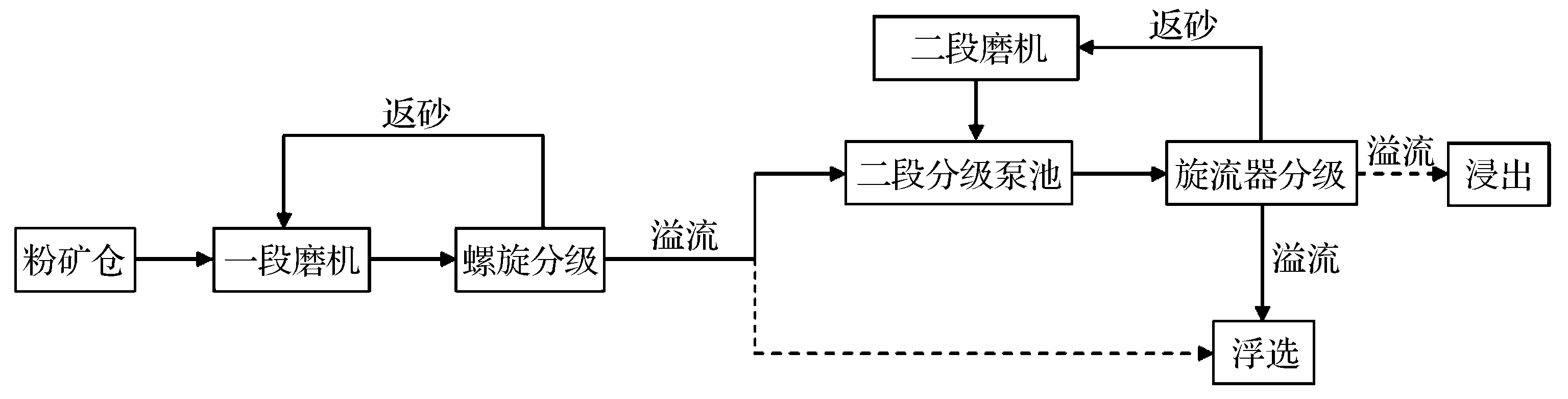

图2

优化后的磨矿分级工艺流程示意图"

图3

优化后的浮选工艺流程示意图"

表2

小试工艺参数及药剂制度"

参数名称黄龙沟水闸东沟
药剂质量分数/%28.3628.36
细度(-0.074 mm含量占比)/%71.5473.83
粗选药剂用量/(g·t-1Na2CO31 5002 000
CuSO4150150
丁铵黑药6080
异戊基黄药80100
11#油3030
扫一药剂用量/(g·t-1丁铵黑药3040
异戊基黄药4050
11#油1515
扫二药剂用量/(g·t-1丁铵黑药1520
异戊基黄药2025
11#油88
扫三药剂用量/(g·t-1丁铵黑药810
异戊基黄药1013
11#油44

表3

开路试验结果"

作业水闸东沟黄龙沟
品位/(×10-6产率/%回收率/%品位/(×10-6产率/%回收率/%
原矿2.29100.00100.002.51100.00100.00
精一尾3.443.375.074.981.042.06
精二尾7.271.093.466.950.942.60
精三尾10.580.743.428.870.853.01
扫一精3.444.366.554.212.113.53
扫二精2.051.641.473.781.542.32
扫三精1.560.980.673.021.261.52
精矿33.544.6768.4647.263.6268.28
尾矿0.3083.1510.900.4789.0216.68

表4

选厂生产指标"

矿样来源品位/(×10-6产率/%回收率/%
原矿精矿尾矿
一选厂(水闸东沟)2.3127.840.456.7981.84
二选厂(黄龙沟)2.4745.390.584.2277.51

表5

中试结果"

矿样来源流程品位/(×10-6产率/%回收率/%
原矿精矿尾矿
黄龙沟一粗三扫2.4228.550.457.0182.71
一粗三扫一精2.4833.680.515.9480.66
一粗三扫二精2.4538.720.554.9878.67
一粗三扫三精2.5045.280.594.2777.41
水闸东沟一粗二扫二精2.2526.840.436.8982.21
一粗三扫三精2.2227.550.426.6382.34

表6

优化后生产指标"

流程品位/(×10-6产率/%回收率/%
原矿精矿尾矿
一粗三扫2.4530.200.466.6982.48

表7

优化前后指标对比"

阶段原矿量/t原矿品位/(×10-6回收率/%精矿品位/(×10-6回收金属量/kg销售单价/(元·g-1销售系数/%产值/万元
优化前500 0002.4577.5145.39949 497.50310.008023 547.54
优化后500 0002.4582.4830.201 010 380.00310.007824 430.99
