Gold Science and Technology ›› 2023, Vol. 31 ›› Issue (2): 340-348.doi: 10.11872/j.issn.1005-2518.2023.02.160

• Metallurge and Equipment • Previous Articles     Next Articles

Study on the Adsorption and Wettability of CN- on the Surface of Typical Gangue Minerals

Qianfei ZHAO1,2(),Hongying YANG1,2(),Linlin TONG1,2

  1. 1.Key Laboratory for Ecological Metallurgy of Multimetallic Minerals (Ministry of Education), Northeastern University, Shenyang 110819, Liaoning, China
    2.School of Metallurgy, Northeastern University, Shenyang 110819, Liaoning, China
  • Received:2022-10-30 Revised:2023-01-09 Online:2023-04-30 Published:2023-04-27
  • Contact: Hongying YANG E-mail:zhaoqianfei0618@163.com;yanghy@smm.neu.edu.cn

Abstract:

In recent years,with the continuous depletion of shallow mineral resources,there are many theoretical and practical studies on the recovery and utilization of sulfide ores in cyanide tailings.However,the existence of floatable gangue will hinder the recovery of sulfide ore in cyanide tailings.Therefore,it is very important to find out the adsorption mechanism of CN- on the surface of gangue minerals and the change of surface wettability to identify the cause of low flotation recovery of cyanide tailings.In this paper,three typical gangue minerals,quartz,feldspar and calcite,were used as adsorbent,and NaCN was used as adsorbent.The influence of adsorption time and amount of adsorbent on the adsorption effect of CN- were investigated.At the same time,the wettability difference before and after the adsorption of CN- on the surface of gangue minerals was analyzed by using the contact angle detection method of solid droplet,and the adsorption kinetic model was fitted for the adsorption results.The results show that quartz,feldspar and calcite exhibit different degrees of adsorption and selectivity for CN-.When the mineral dosage was 5 g and the contact time was 12 h,the adsorption rate of CN- tend to be stable.At this time,the adsorption rates of quartz,feldspar and calcite for CN- are 43.9%,58.0% and 43.6%,respectively.Through kinetic study,it is found that the adsorption of CN- by quartz and feldspar is mainly physical adsorption.There is binding adsorption between CN- and calcite.Finally,according to the contact angle detection,the adsorption of CN- resulted in the enhancement of the surface hydrophilicity of gangue minerals,and the surface contact angles of quartz,feldspar and calcite decreased from 38.5°,15.6° and 35.4° to 18.6°,14.4° and 20.6°.After the action of SBX flotation reagent,the surface contact angle of gangue minerals increase,but still showes hydrophilic properties.It shows that cyanidation will not cause the following flotation of non-target minerals when recovering sulfide ores from cyanide tailings flotation,which provides theoretical guidance for achieving efficient separation and flotation of metal sulfide ores in cyanide tailings.

Key words: quartz, feldspar, calcite, cyanide leaching, adsorption behavior, contact angle, dynamics model

CLC Number:

  • TD97

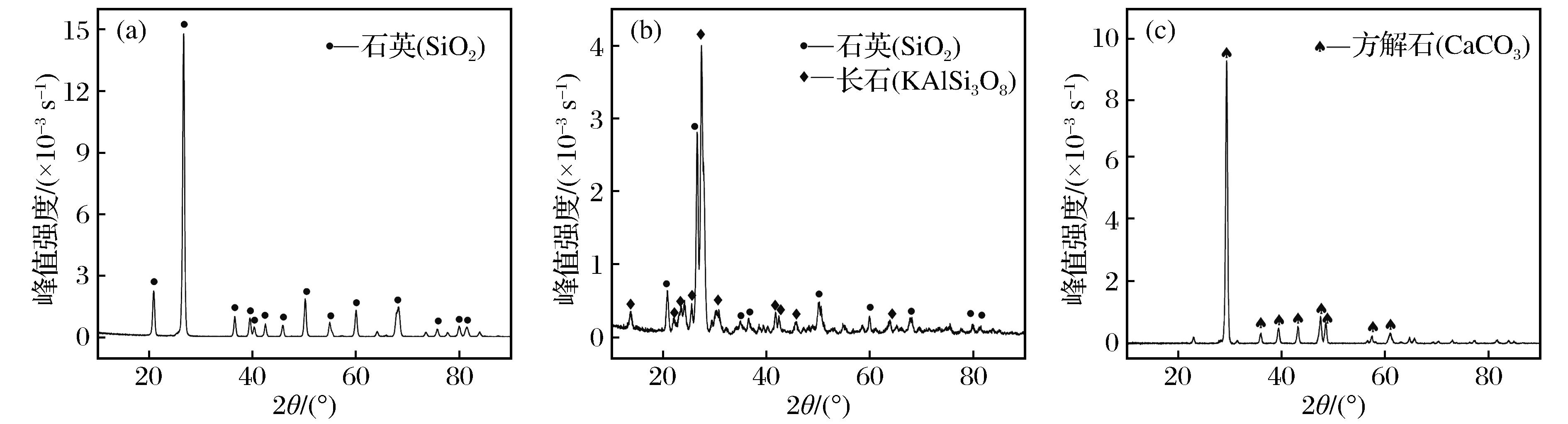

Fig.1

X-ray diffraction patterns of typical gangue mineral samples"

Table 1

Mass fraction of main compositions of gangue minerals(%)"

矿物名称SiO2Al2O3K2OCaO其他成分
石英99.10---0.90
长石67.8315.3315.94-0.90
方解石0.05--56.2543.70

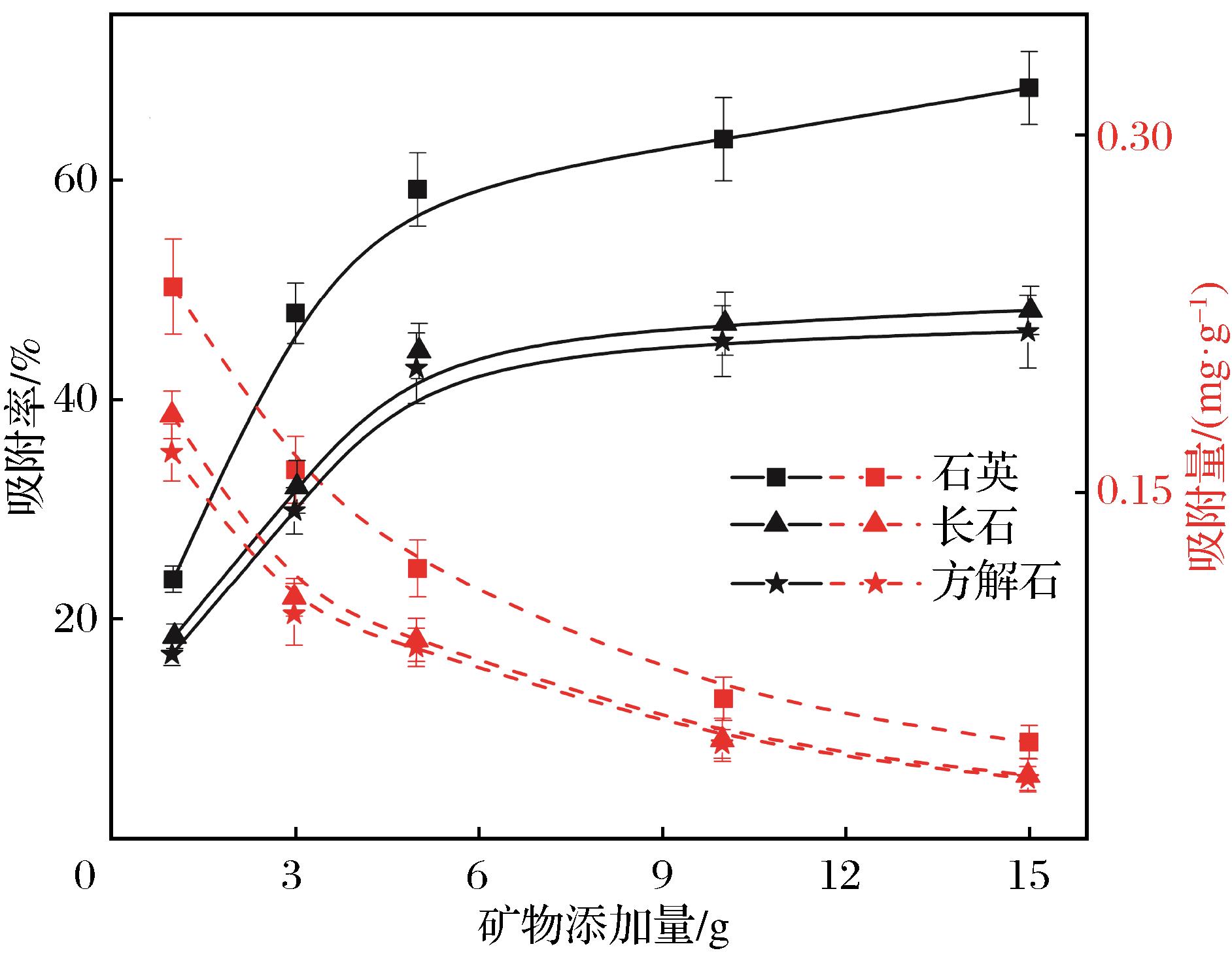

Fig.2

Relationship between CN- adsorption rate on the gangue surface and the amount of samples dosage"

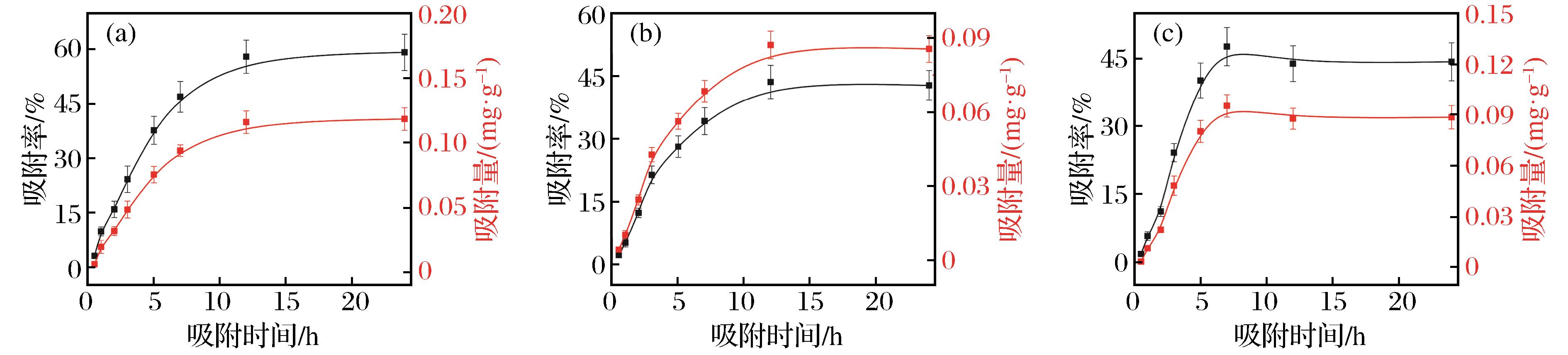

Fig.3

Relationship between adsorption characteristics of CN- on gangue mineral surface and adsorption time"

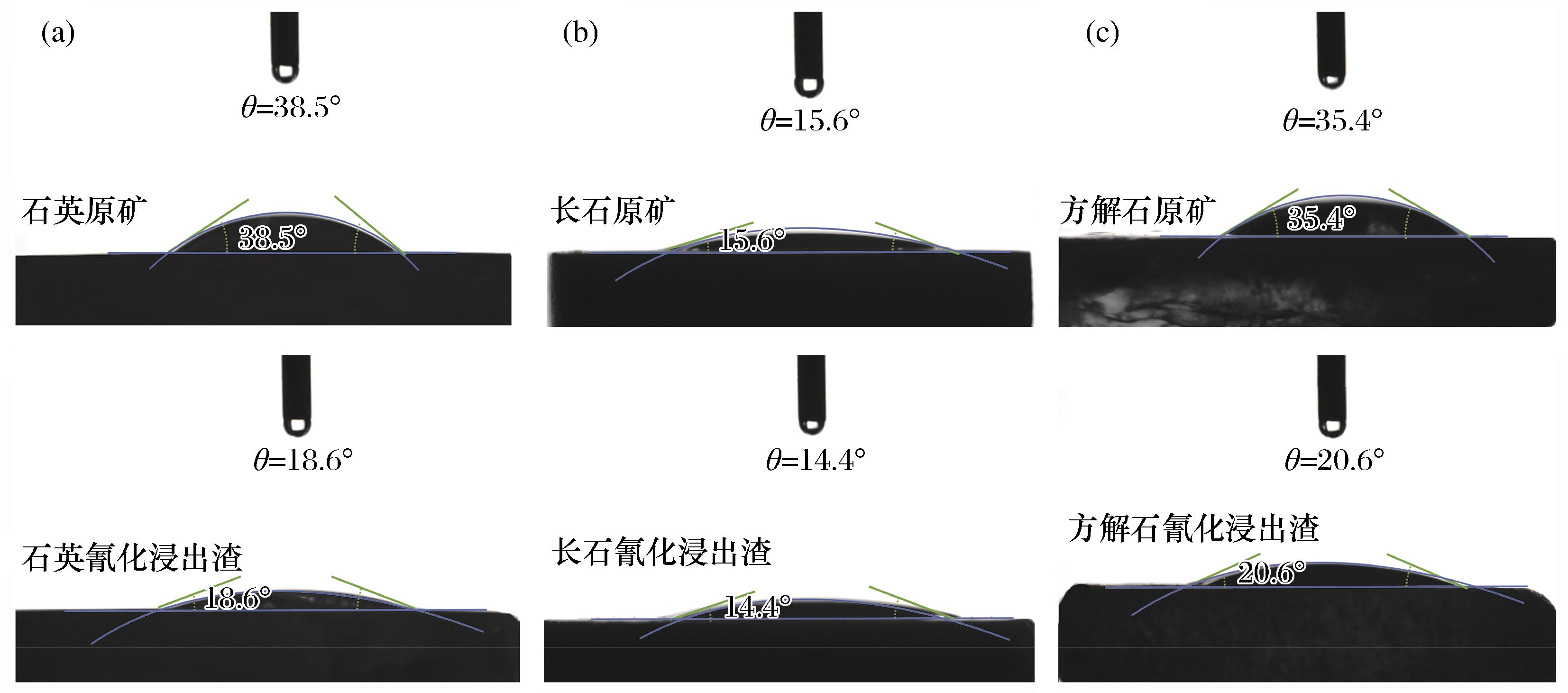

Fig.4

Contact angle change images of gangue minerals surface before and after cyanide treatment for 24 hours"

Fig.5

Contact angle change images of gangue cyanide leaching residues surface after flotation agent treatment"

Fig.6

FT-IR spectra of gangue minerals before and after cyanide treatment in 0.1% NaCN for 24 hours"

Fig.7

Linear regression fitting of pseudo-first order kinetic equation(a),pseudo-second order kinetic equation(b),double constant equation(c) and Elovich equation(d) for CN- adsorption on the gangue minerals surface"

Table 2

Fitting parameters of CN- adsorption kinetic model for gangue mineral samples"

脉石矿物

试验

Qe

准一级动力学模型准二级动力学模型双常数模型Elovich模型
Qek1R2Qek2R2R2R2
石英0.11590.10382.26560.97450.16770.76160.90450.95420.9419
长石0.09520.08552.45920.95430.13450.86280.68450.91550.8807
方解石0.08720.07882.54140.98340.12620.93250.83430.95270.9568
Ai G H, Yan H S, Qiu T S,et al,2018.Activating flotation of chalcopyrite using CuSO4 and H2O2 from the cyanide tailings[J].Physicochemical Problems of Mineral Processing,54(2):578-589.
Chen T T, Cabri L J, Dutrizac J E,2002. Characterizing gold in refractory sulfide gold ores and residues[J].JOM,54(12):20-22.
Deng Y J, Xu L, Lu H L,et al,2018.Direct measurement of the contact angle of water droplet on quartz in a reservoir rock with atomic force microscopy[J].Chemical Engineering Sci-ence,177:445-454.
Dizge N, Demirbas E, Kobya M,2009.Removal of thiocyanate from aqueous solutions by ion exchange[J].Journal of Ha-zardous Materials,166(2/3):1367-1376.
Dong K W, Xie F, Wang W,et al,2021.The detoxification and utilization of cyanide tailings:A critical review[J].Journal of Cleaner Production,302:126946.
Huang H, Fan Y F, Wang J W,et al,2013.Adsorption kinetics and thermodynamics of water-insoluble crosslinked β-cyclodextrin polymer for phenol in aqueous solution[J].Macromolecular Research,21(7):726-731.
Jannah Sulaiman N, Mansor A F, RahmanR A,et al,2019.Adsorption kinetics of cellulase and xylanase immobilized on magnetic mesoporous silica[J].Chemical Engineering and Technology,42(9):1825-1833.
Li J Y, Hua Q X, Niu J L,et al,2011.Adsorption equilibrium and kinetics of copper from aqueous solutions on steel slag[J].Advanced Materials Research,354/355:33-36.
Liu Shujie, Dai Shujuan, Li Pengcheng,2020.Effect of calcination on the interaction between quartz and gold cyanide[J].Non-Metallic Mines,43(1):68-72.
Mohammadnejad S, Provis J L, van Deventer J S J,2011.Gold sorption by silicates in acidic and alkaline chloride media[J].International Journal of Mineral Processing,100(3/4):149-156.
Rao S H, Deng Y J, Cai W J,et al,2021.Study of the contact angle of water droplet on the surface of natural K-feldspar with the combination of Ar+ polishing and atomic force microscopy scanning[J].Chemical Engineering Science,241:116705.
Song Yan, Yang Hongying, Tong Linlin,et al,2018.Experimental study on bacterial oxidation-cyanidation of a complex re-fractory gold mine in Gansu Province[J].Gold Science and Technology,26(2):241-247.
Sun Q Y, Yin W Z, Cao S H,et al,2019.Adsorption kinetics and thermodynamics of sodium butyl xanthate onto bornite in flotation[J].Journal of Central South University,26(11):2998-3007.
Taraba B, Bulavová P,2022.Second or pseudo-second-order model for adsorption kinetics?[J].Separation Science and Technology,57(10):1558-1562.
Xu S H, Cheng D B, Skinner W,et al,2020.Application of ToF-SIMS to predict contact angles of pyrite particles[J].Minerals Engineering,147:106168.
Yang X L, Huang X, Qiu T S,2015.Recovery of zinc from cyanide tailings by flotation[J].Minerals Engineering,84:100-105.
Yazdani M R, Tuutijärvi T, Bhatnagar A,et al,2016.Adsorptive removal of arsenic(V) from aqueous phase by feldspars:Kinetics,mechanism and thermodynamic aspects of adsorption[J].Journal of Molecular Liquids,214:149-156.
Yin Yulan, Chen Junhong, Xie Yan,et al,2022.Adsorption of F- on calcite surface and its effect on calcite surface properties[J].Bulletin of the Chinese Ceramic Society,41(8):2785-2791.
Yu Zheng, Wang Qiong, Huang Jun,et al,2022.Adsorption equilibrium,kinetics and mechanism studies of copper and nickel on coal-fired fly ash[J].Coal Processing and Comprehensive Utilization,(3):91-95.
Zhang X Q, Qin Y Z,2019.Contact angle hysteresis of a water droplet on a hydrophobic fuel cell surface[J].Journal of Colloid and Interface Science,545:231-241.
刘淑杰,代淑娟,李鹏程,2020.焙烧对石英与氰化金相互作用的影响[J].非金属矿,43(1):68-72.
宋言,杨洪英,佟琳琳,等,2018.甘肃某复杂难处理金矿细菌氧化——氰化实验研究[J].黄金科学技术,26(2):241-247.
殷玉兰,陈俊宏,谢燕,等,2022.F-在方解石表面的吸附及其对方解石表面性质的影响[J].硅酸盐通报,41(8):2785-2791.
于峥,王琼,黄俊,等,2022.粉煤灰对水中铜镍的吸附平衡、动力学及机理研究[J].煤炭加工与综合利用,(3):91-95.
